Setup and Installation of the Packaged Cluster
Smart Array Cluster Storage

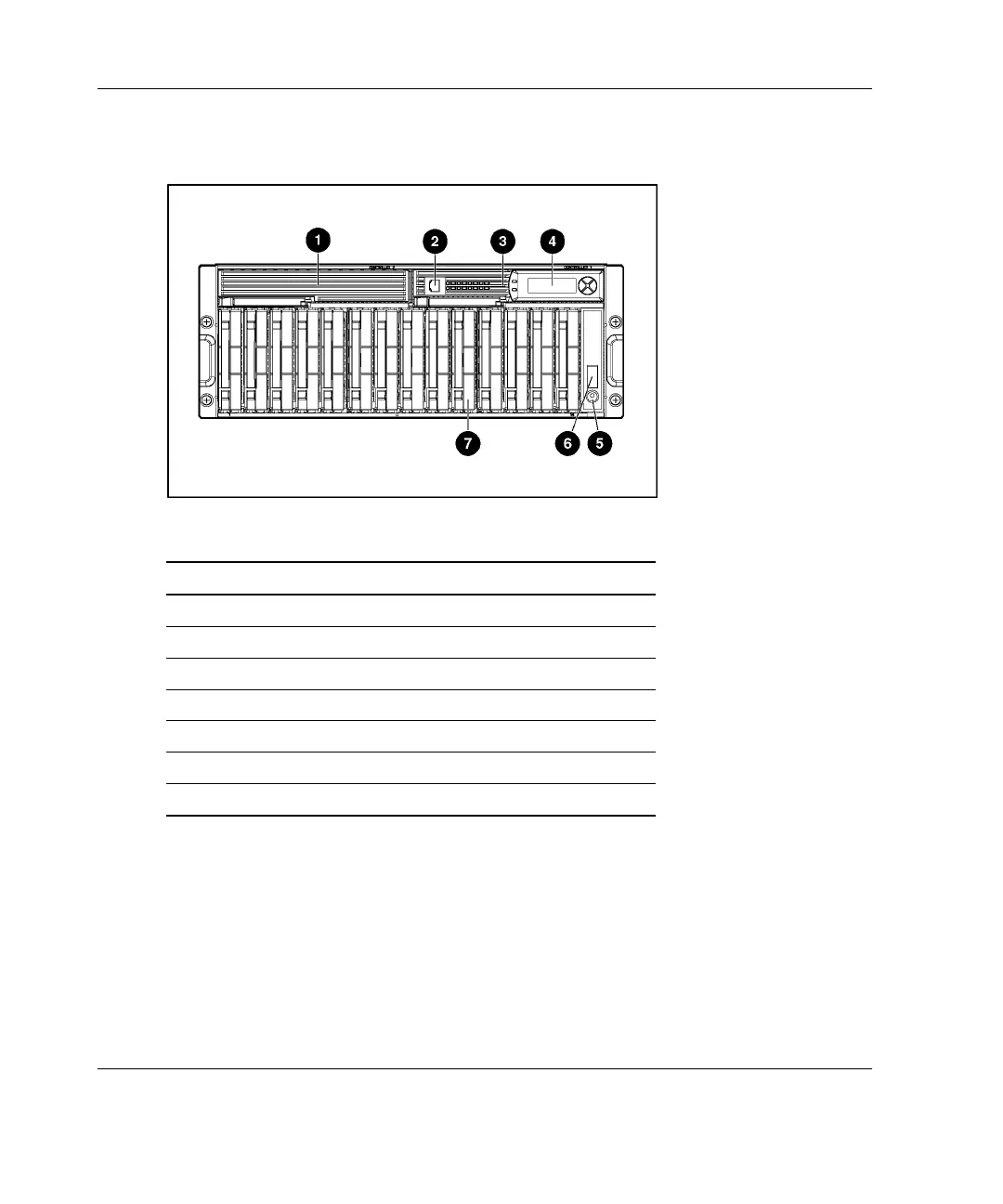

Table 2-5: Front Panel Components
Item Description
1 Bezel blank (bay for optional redundant controller)
2 Service port (for HP service technicians only)
3 Hot-plug Smart Array Cluster Storage Controller
4 Controller display
5 Power On/Standby button
6 Enclosure LEDs
7 Hot-plug SCSI hard drives
2-8 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
