Setup and Installation of the Packaged Cluster
Installing Hardware Options
IMPORTANT: If your system was previously configured, skip to “Cabling the System in
a Rack.”
NOTE: Detailed option installation instructions are available with the options and are also in
the server setup and installation guide, the server supplemental setup guide, and the storage
system user guide on the Documentation CD.
1. Install the server options.
2. Install the storage system options.
Cabling the System in a Rack
NOTE: It is recommended, for ease of cabling, to install one cable management arm on a
server and route the cables before installing the second cable management arm.

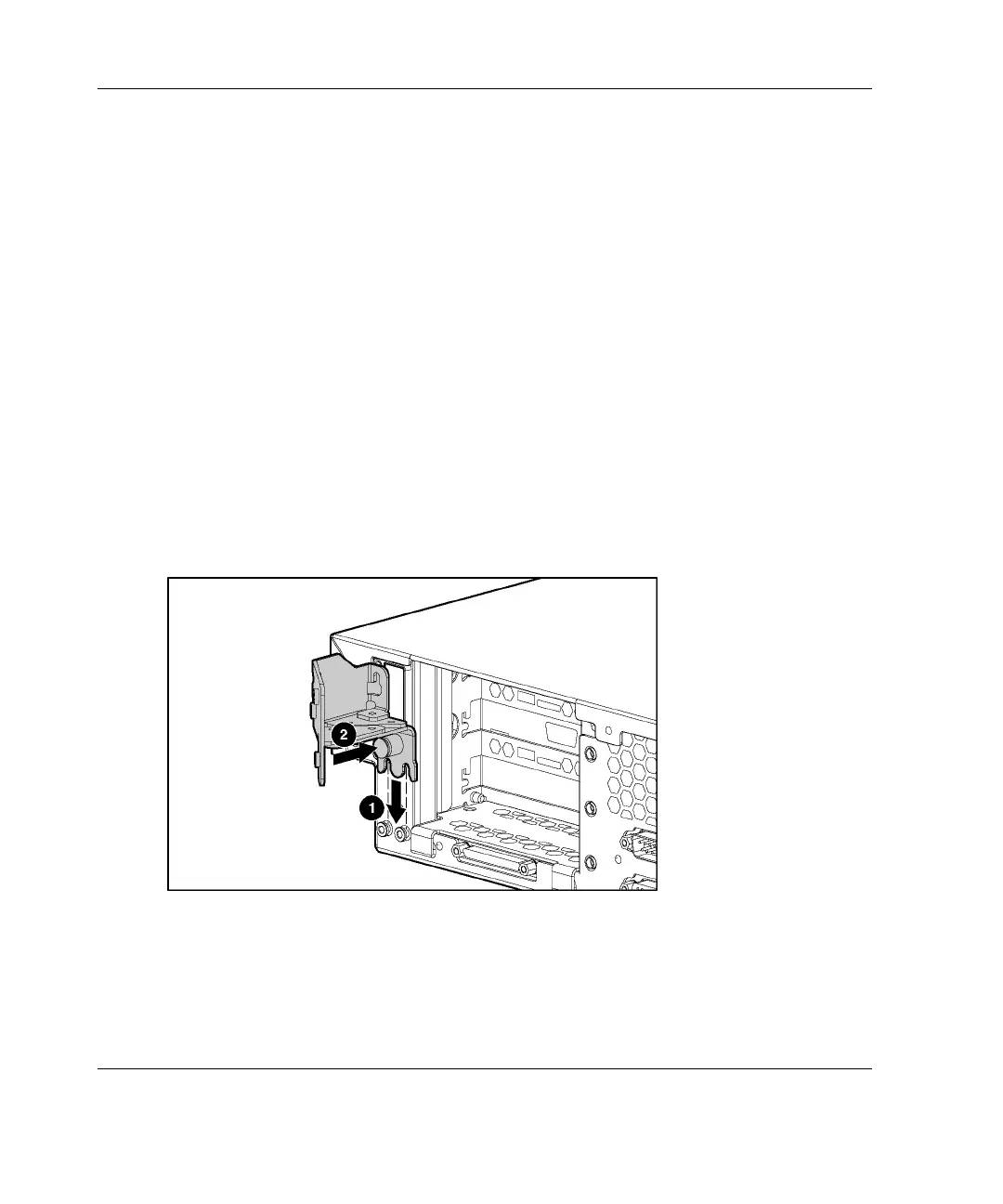

1. Secure the cable management arm bracket to the server.
NOTE: Cable management arm is removed for clarity.
2-32 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

HP ProLiant DL380 G3 with MSA1000 Specifications

General

Rack Height	2U
Hard Drive Interface	Ultra320 SCSI
Remote Management	Integrated Lights-Out (iLO)
Memory	PC2100 DDR SDRAM
Storage Controller	Smart Array 5i Plus
Network	Dual embedded NC7781 Gigabit NIC
Expansion Slots	6 PCI-X (64-bit/100 MHz)
Form Factor	Rackmount
MSA1000 Storage	External storage enclosure connected via SCSI
RAID Levels	0, 1, 5
Power Supply	Redundant Power Supply Optional
Drive Bays	6 hot-plug SCSI bays
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 3.6 GHz)
