Setup and Installation of the Packaged Cluster
Installing the Servers into the Rack
Follow the steps in this section if you are installing the server into a Compaq or
HP 7000-, 9000-, or 10,000-series rack or a third-party rack with square holes. If you
are installing the server in an HP Rack System/E and HP Systems round-hole rack or
a third-party rack with round holes, or if the supplied rails do not fit the square-hole
rack you are using, order the third-party option kit for racks with round holes and use
the installation instructions that ship with the option kit.

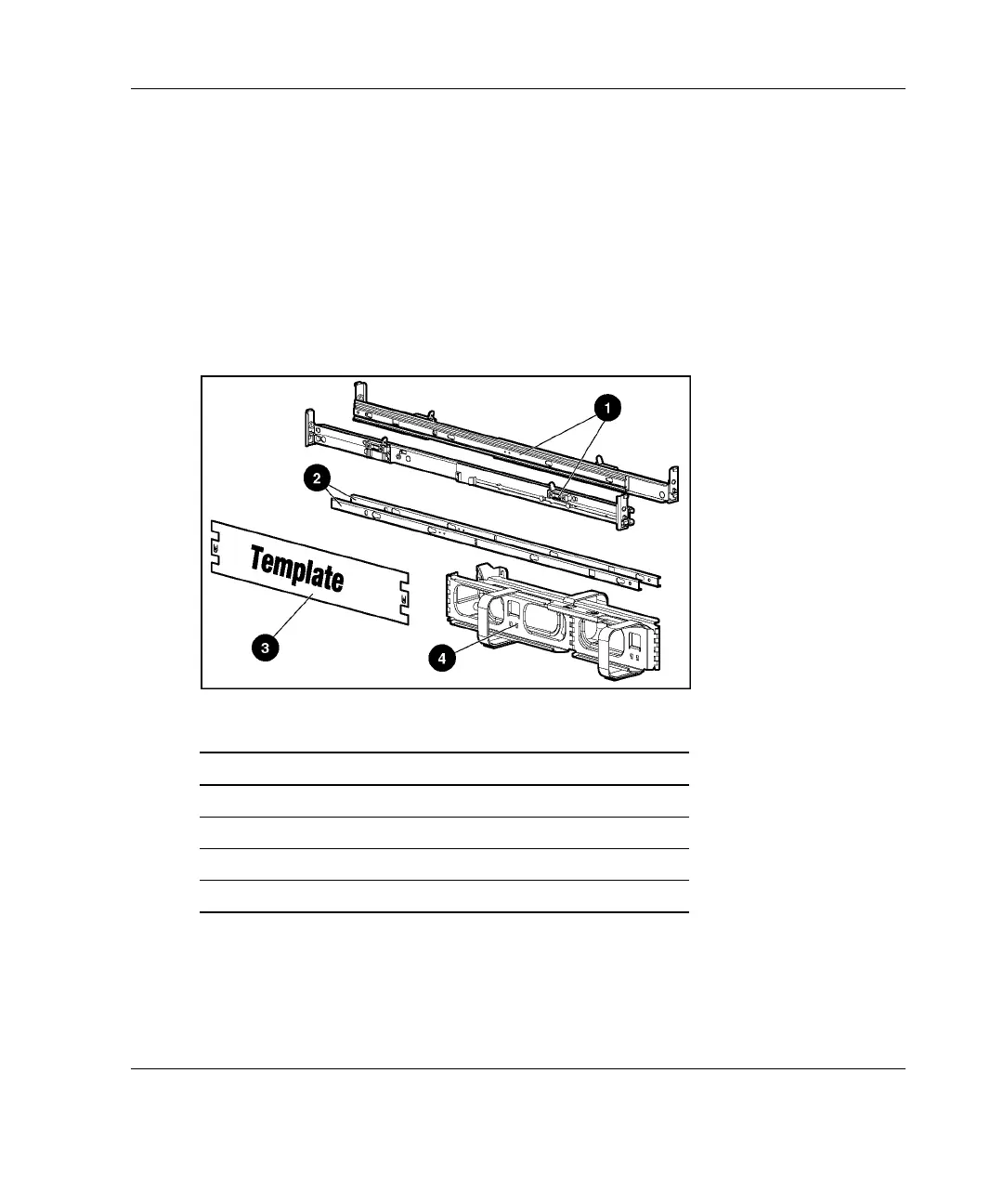

1. Locate the following materials necessary for installing the servers.
Table 2-10: Rack Mounting Hardware and Template
Item Description
1 Left and right standard rack rail assemblies
2 Server rails
3 Rack template
4 Cable management arm
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide 2-27
