HP ProLiant DL380 G3 with MSA1000 User Manual

Setup and Installation of the Packaged Cluster
Installing Hardware Options
NOTE: Detailed option installation instructions are available with the options and are also in
the server setup and installation guide, the server supplemental setup guide, and the storage
system user guide on the Documentation CD.
1. If internal server options (memory, processors, fans, and expansion boards) need
to be installed:
a. Remove the servers from the server fixture.

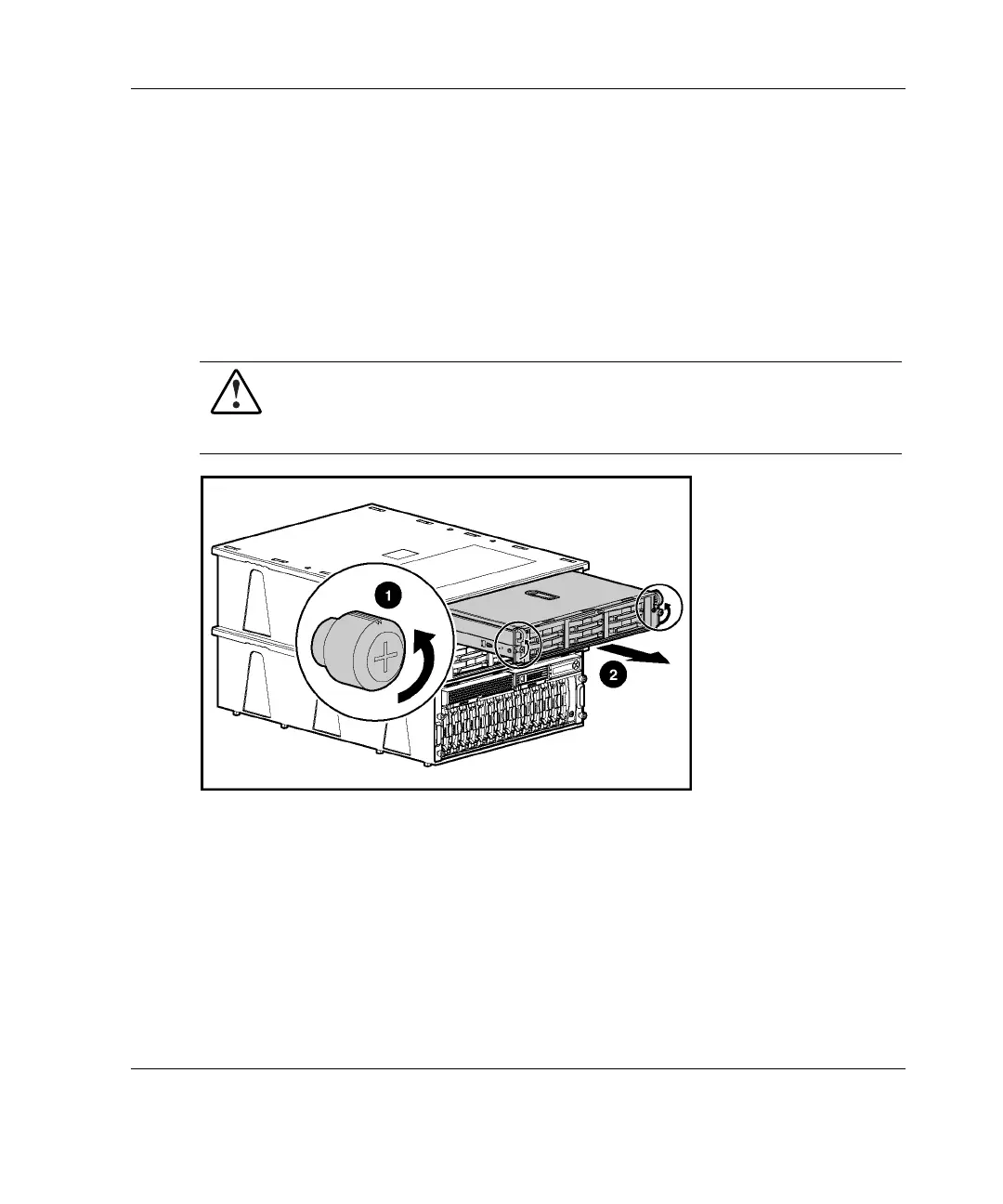

WARNING: To reduce the risk of personal injury or damage to the equipment,
the server must be completely removed from the server fixture to install the
internal server options. At least two people are required to lift the servers
during installation or removal.
b. Install the internal server options.
c. Replace the servers in the server fixture.
2. Install the external server options.
3. Install the external storage system options.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide 2-13
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

HP ProLiant DL380 G3 with MSA1000 Specifications

General

Rack Height	2U
Hard Drive Interface	Ultra320 SCSI
Remote Management	Integrated Lights-Out (iLO)
Memory	PC2100 DDR SDRAM
Storage Controller	Smart Array 5i Plus
Network	Dual embedded NC7781 Gigabit NIC
Expansion Slots	6 PCI-X (64-bit/100 MHz)
Form Factor	Rackmount
MSA1000 Storage	External storage enclosure connected via SCSI
RAID Levels	0, 1, 5
Power Supply	Redundant Power Supply Optional
Drive Bays	6 hot-plug SCSI bays
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 3.6 GHz)
