Setup and Installation of the Packaged Cluster

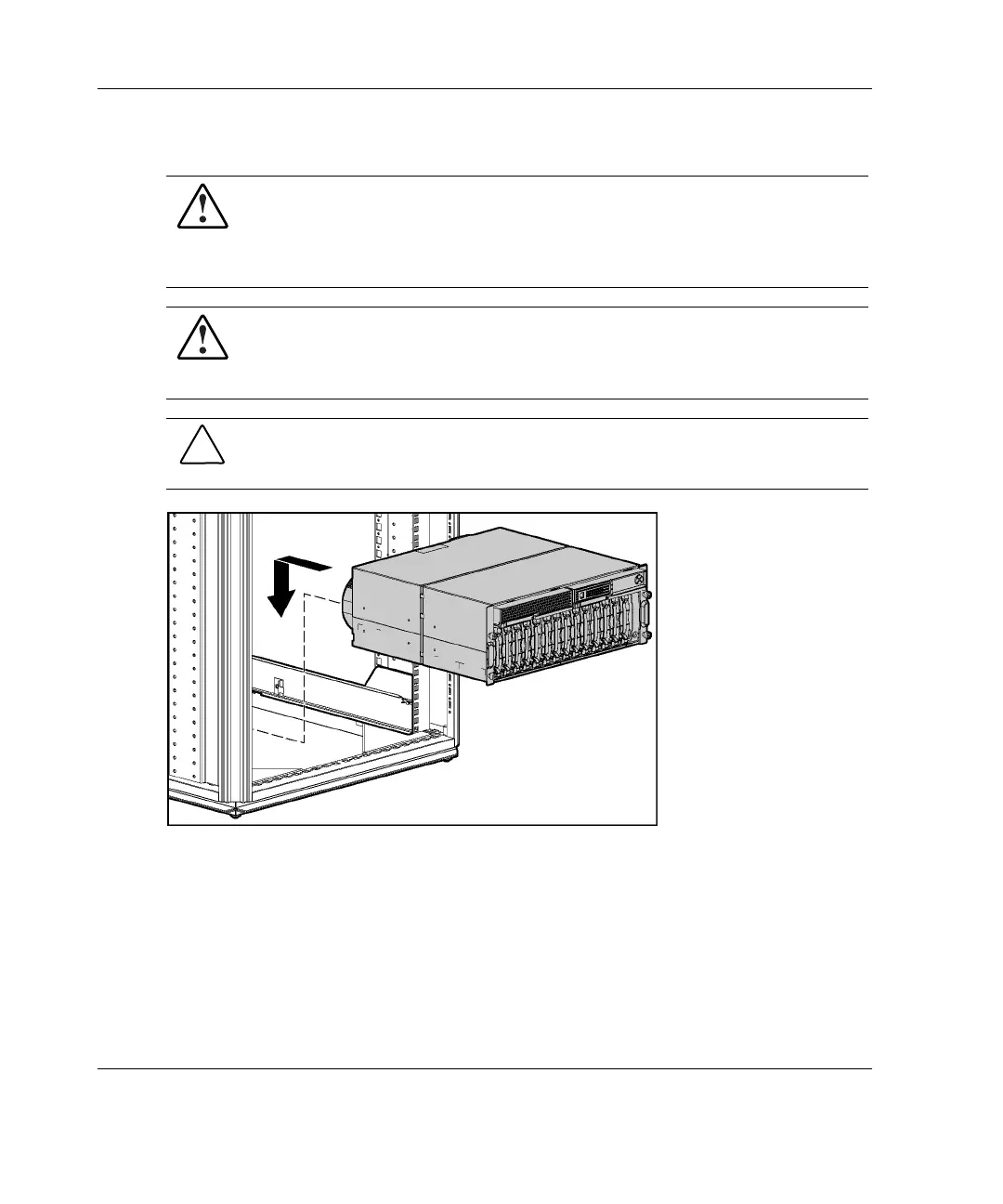

9. Align the system with the rails and slide it into the rack.
WARNING: The storage system weight, as assembled for shipping, exceeds
22.7 kg (50 lb). To reduce the risk of personal injury or damage to the
equipment, at least two people are required to lift the storage system during
removal or installation. Install the storage system in the lowest available
position in the rack.
WARNING: Always use at least two people to lift an enclosure into the rack. If
the enclosure is being loaded into the rack above chest level, a third person
must assist with aligning the enclosure with the rails while the other two
people support the weight of the enclosure.
CAUTION: To prevent storage system damage and ease insertion, support the
weight of the storage system and keep it level when sliding the storage system into
the rack.
2-24 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

HP ProLiant DL380 G3 with MSA1000 Specifications

General

Rack Height	2U
Hard Drive Interface	Ultra320 SCSI
Remote Management	Integrated Lights-Out (iLO)
Memory	PC2100 DDR SDRAM
Storage Controller	Smart Array 5i Plus
Network	Dual embedded NC7781 Gigabit NIC
Expansion Slots	6 PCI-X (64-bit/100 MHz)
Form Factor	Rackmount
MSA1000 Storage	External storage enclosure connected via SCSI
RAID Levels	0, 1, 5
Power Supply	Redundant Power Supply Optional
Drive Bays	6 hot-plug SCSI bays
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 3.6 GHz)
