Removal and replacement procedures 36
2.

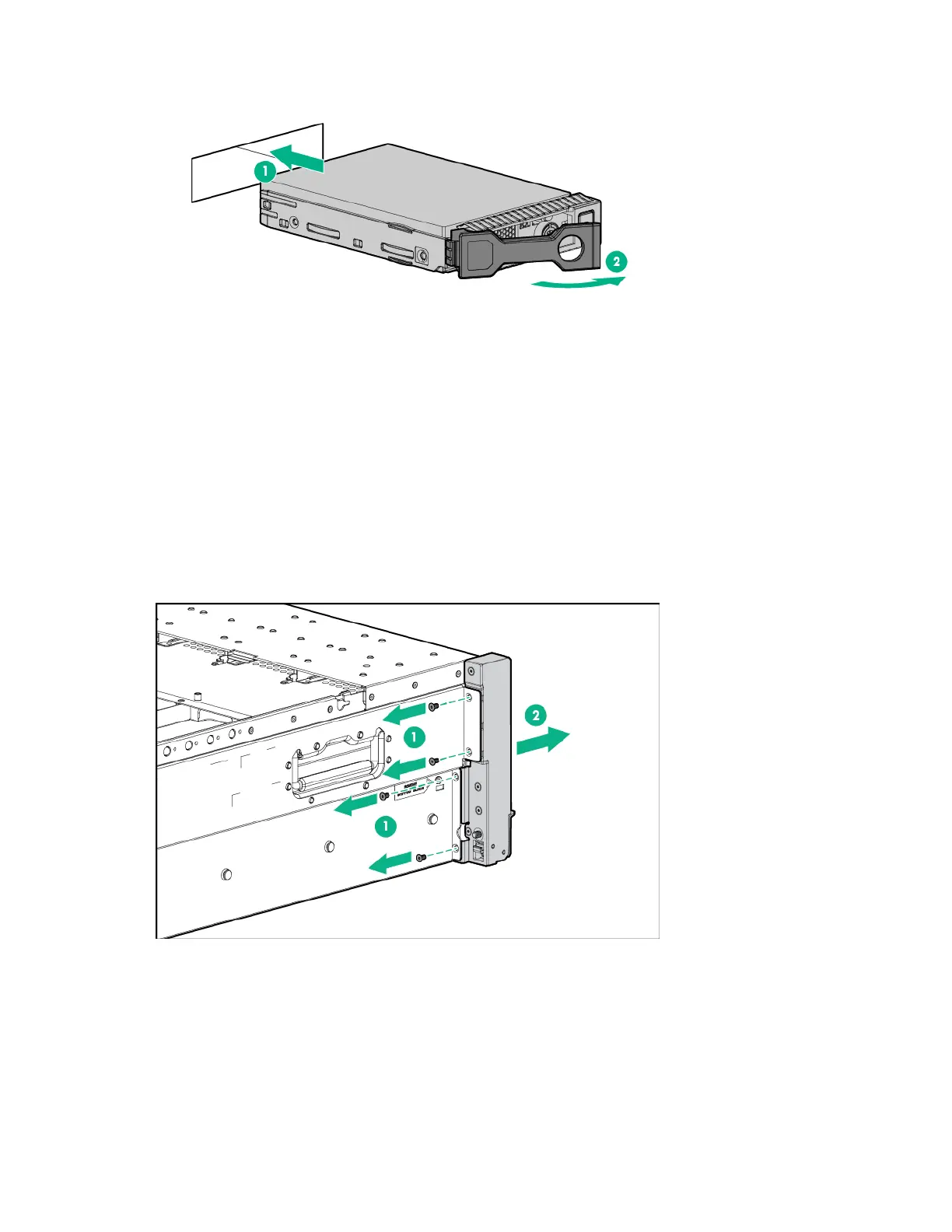

Install the drive.
3. Determine the status of the drive from the drive LED definitions ("Hot-plug drive LED definitions" on
page 93).
Left bezel (USB/video)
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 26).
4. Remove the processor memory drawer cover (on page 30).
5. Using a Torx T-10 screwdriver, remove the screws securing the bezel to the chassis, and then
remove the assembly from the server.
