HP ProLiant DL580 Gen9 - DIMM Fault Leds

Component identification 90

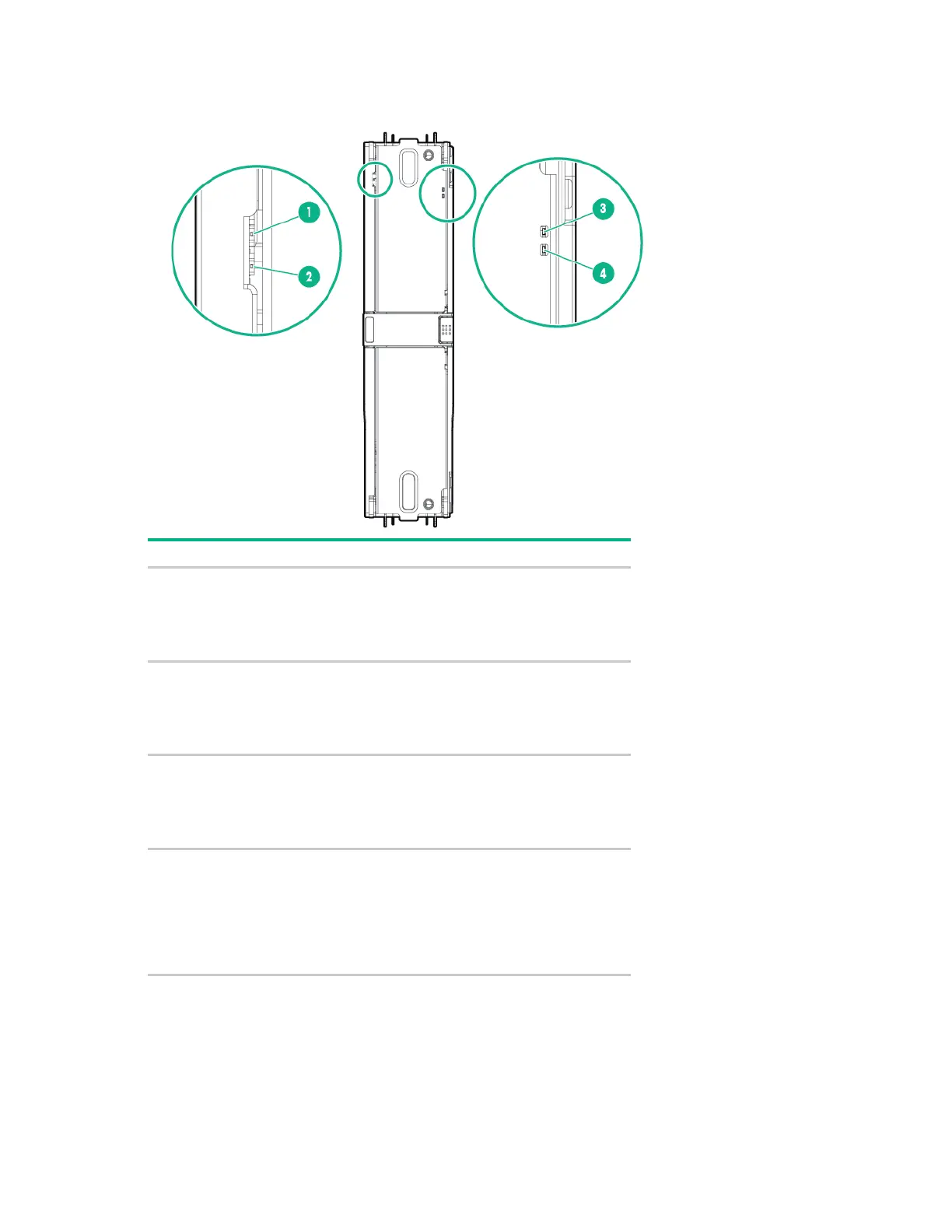

DIMM fault LEDs
Item
Description
Status
1
Power fault LED (board
B)
•
Off = The DIMMs are operating
normally.
•
Solid amber = One or more DIMMs
in the cartridge is experiencing a
power fault condition.
2
General board fault LED
(board B)
•
Off = The DIMMs are operating
normally.
•
Solid amber = One or more DIMMs
in the cartridge is experiencing a
general fault condition.
3
General board fault LED
(board A)
•
Off = The DIMMs are operating
normally.
•
Solid amber = One or more DIMMs
in the cartridge is experiencing a
general fault condition.
4
Power fault LED (board
A)
•
Off = The DIMMs are operating
normally.
•
Solid amber = One or more DIMMs
in the cartridge is experiencing a
power fault condition.
To determine which DIMMs are experiencing a fault condition, see "DIMM fault identification button (on
page 91)."
