HP ProLiant DL580 Gen9 - SPI Board Components

Component identification 86

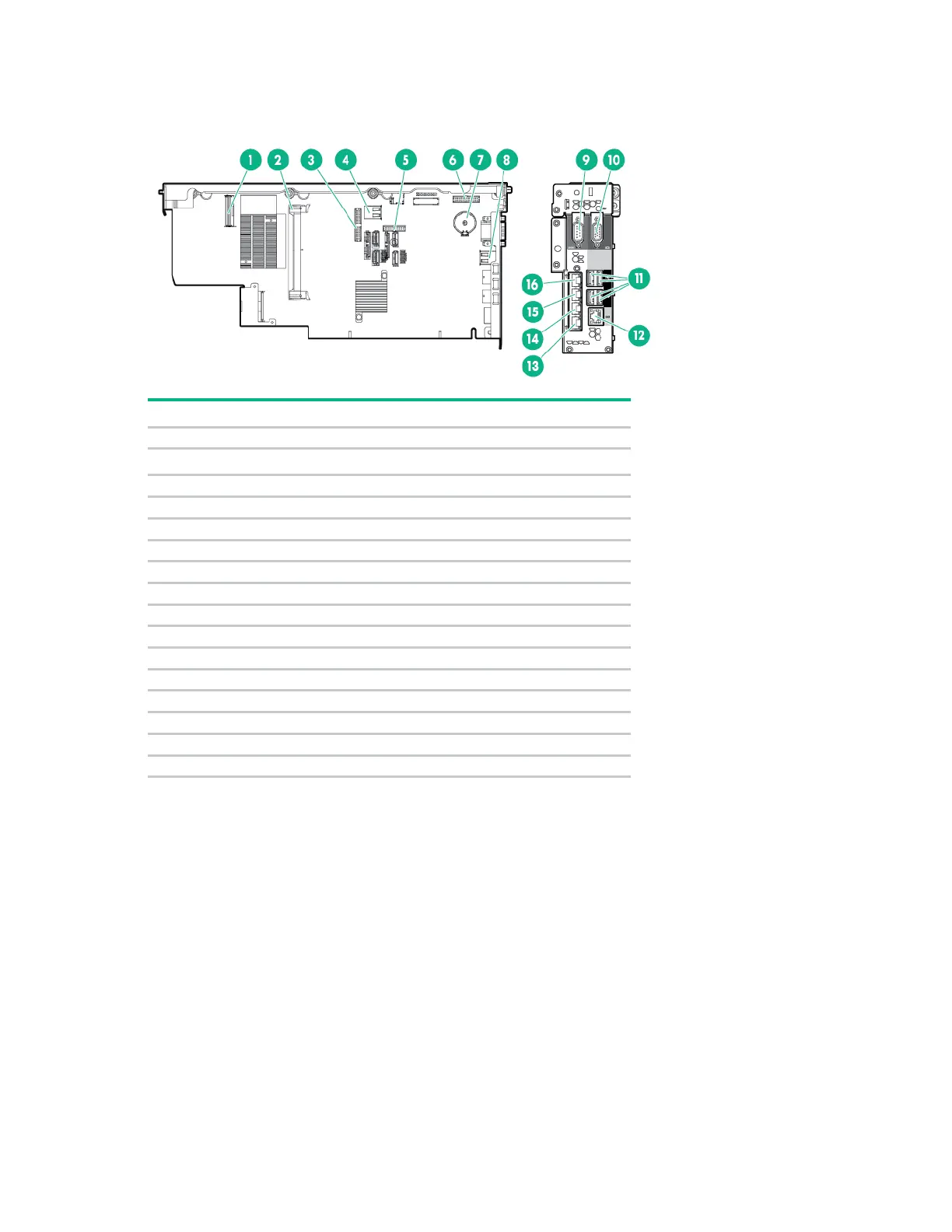

SPI board components
Item
Description
1
Top SAS backplane connector
2
SAS cache module connector
3
Systems Insight Display Power/UID connector
4
Internal USB connector
5
TPM connector
6
Front video/USB connector
7
Battery
8
Internal USB connector
9
Serial connector
10
Video connector
11
USB connectors (4)
12
iLO connector
13
FlexibleLOM port 1*
14
FlexibleLOM port 2*
15
FlexibleLOM port 3*
16
FlexibleLOM port 4*
*Port configuration is dependent on the installed FlexibleLOM and might differ from what is shown in the illustration.
