Removal and replacement procedures 38
8.

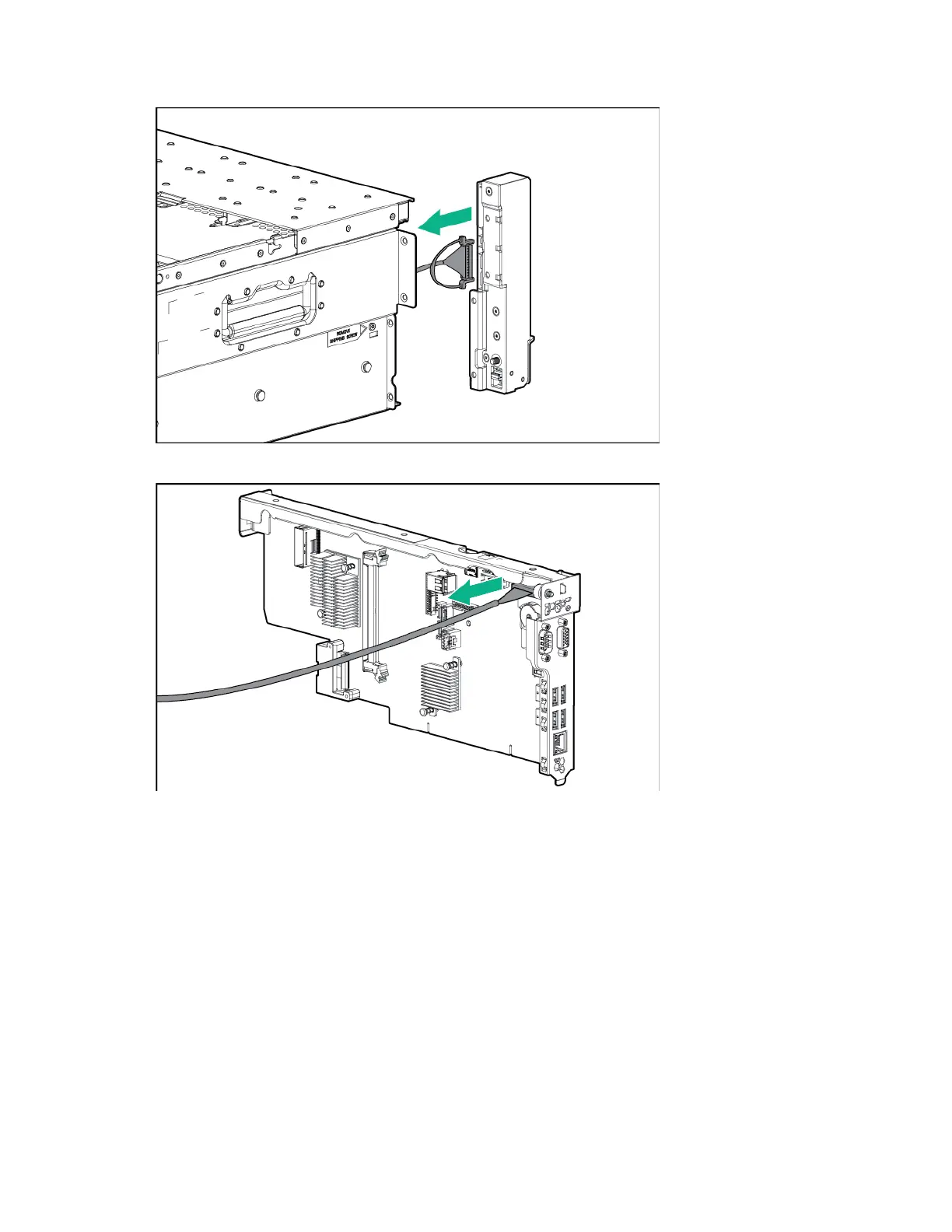

Disconnect the cable from the bezel.
9. Disconnect the cable from the SPI board.
To replace the component, reverse the removal procedure.
Right bezel (UID/power/SID)
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 26).
4. Remove the processor memory drawer (on page 29).
