I/O board
When replacing the I/O board, be sure the system maintenance switch settings on the replacement board
match the settings on the old board. For more information, see "System maintenance switch (on page
85)."
To remove the component:
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 26).
4. Remove the access panel (on page 28).

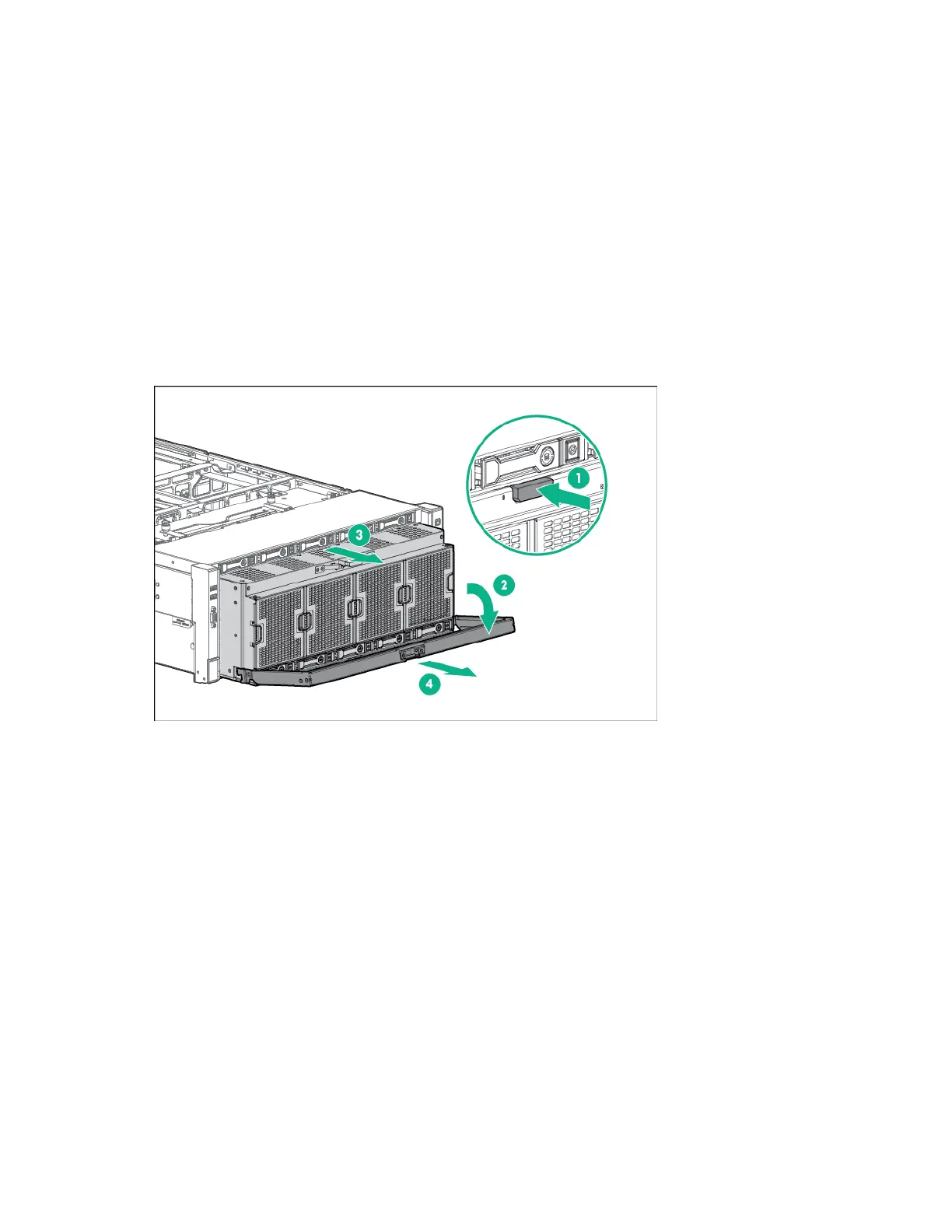

5. Extend the processor memory drawer approximately 2.54 to 5.1 cm (1 to 2 inches).
6. Remove the SPI board (on page 30).
7. Remove the FlexibleLOM ("FlexibleLOM" on page 68).
8. Remove any expansion boards installed on the I/O board ("Expansion board" on page 41).
9. Disconnect all cables connected to the I/O board.
