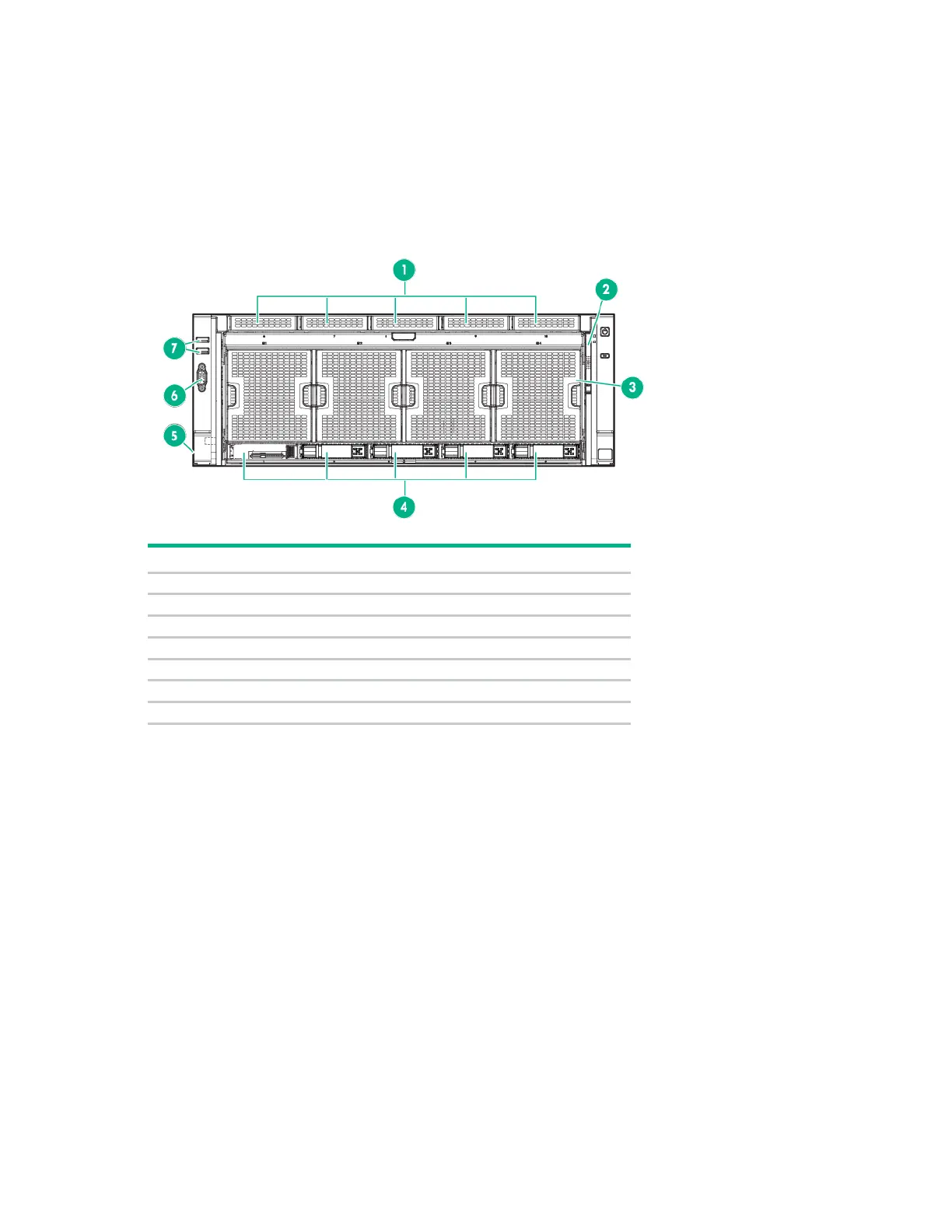

Front panel components
Item
Description
1
Drive bays 6 to 10*
2
Systems Insight Display
3
Fans 1 to 4
4
Drive bays 1 to 5
5
Discovery services connectors
6
Video connector
7
USB connectors (2)
* Drives installed in these bays require the optional drive backplane and cables.
