Install the system board assembly

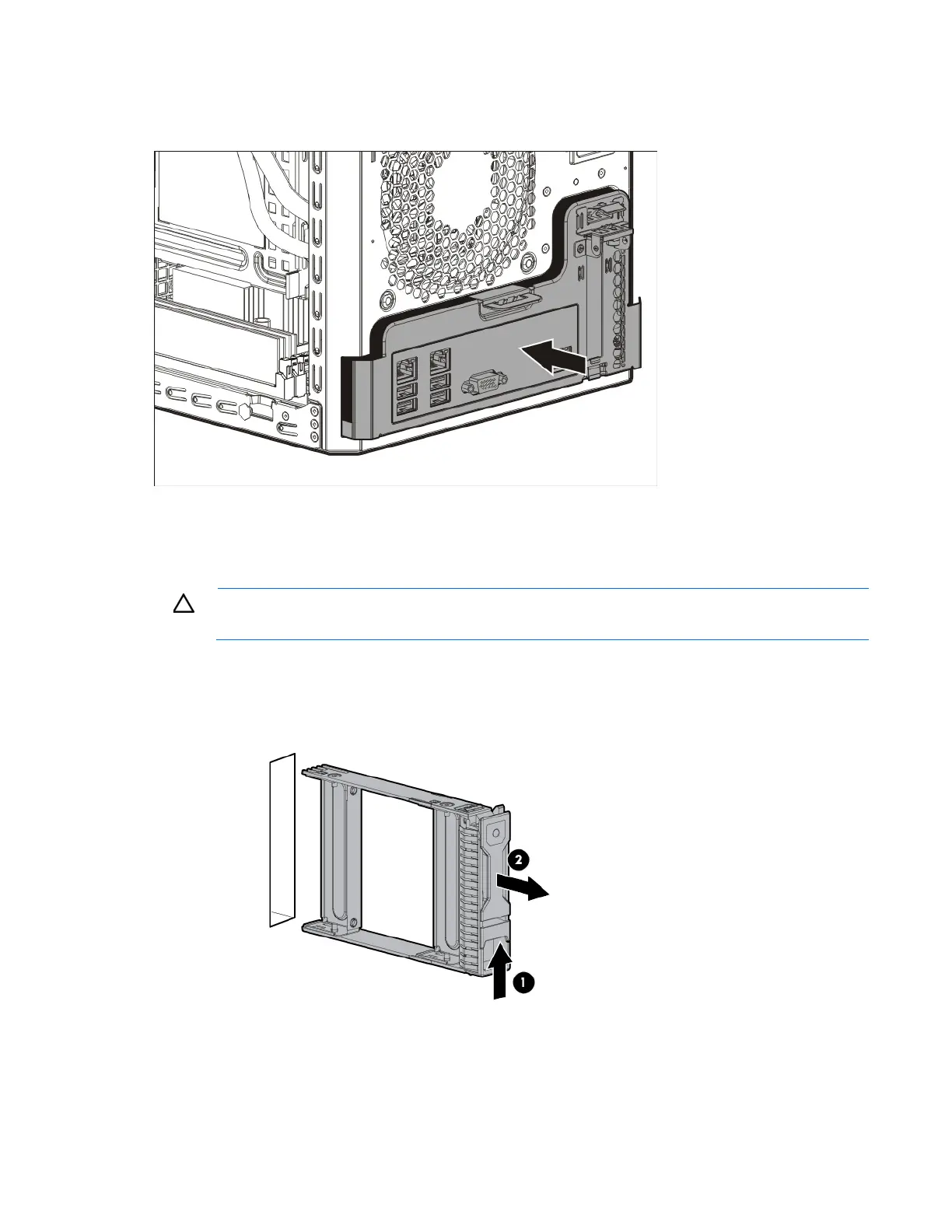

1. Slide the system board assembly into the chassis.
2. Connect all cables disconnected from the system board and/or expansion board.
Drive carrier
CAUTION: To prevent improper cooling and thermal damage, do
not operate the server unless
all bays are populated with either a component or a blank.
To remove the component:
1. Open the front bezel (on page 25).
2. Remove the drive carrier.
To replace the component, slide the component into the bay until it clicks.
