HP ProLiant MicroServer Gen8 Maintenance And Service Guide

Removal and replacement procedures 60

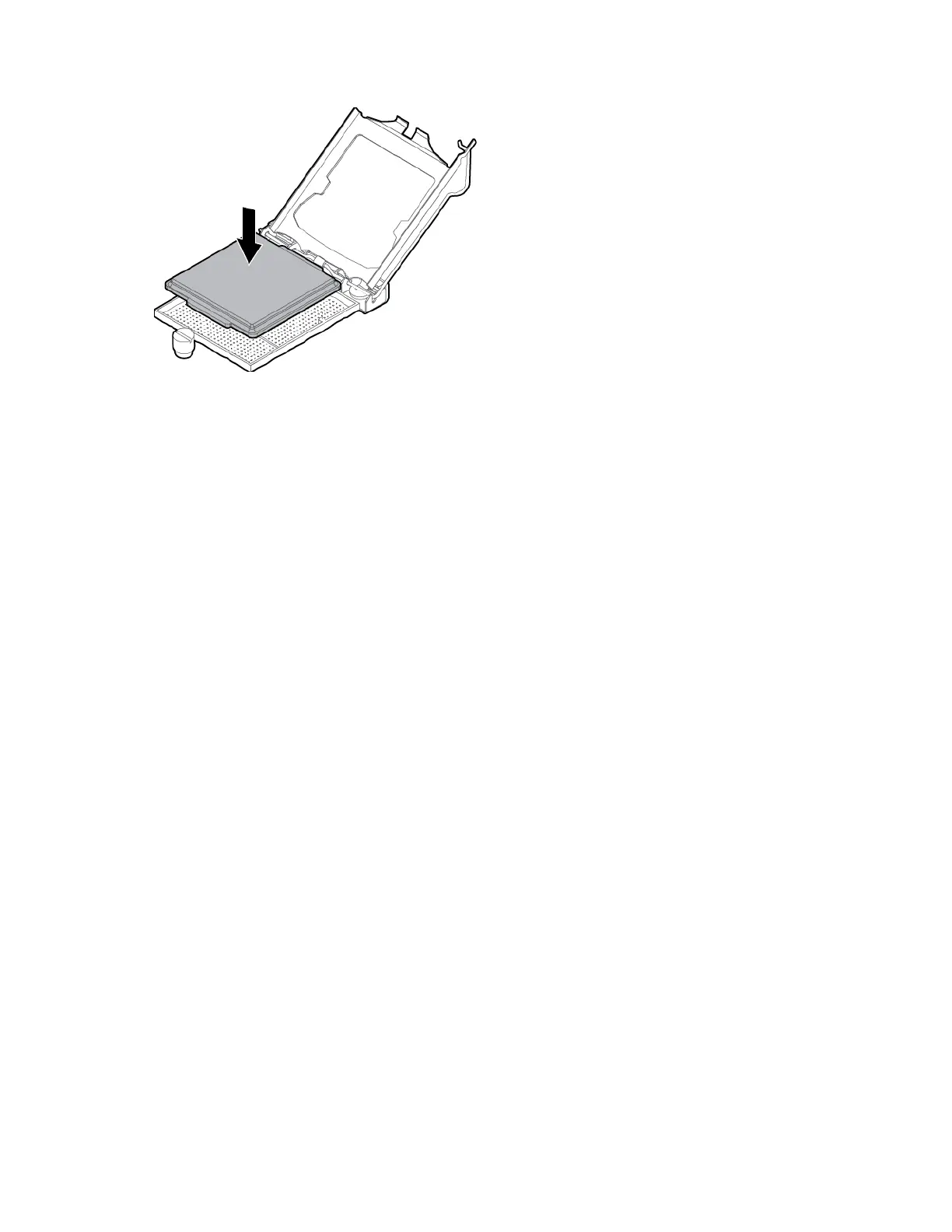

9. Install the processor socket cover on the failed system board.
10. Install the system board assembly (on page 31).
11. Install the DIMMs.
12. If removed, install the expansion board.
13. Install the chassis cover (on page 28).
14. Connect the power cord to the server.
15. Connect the power cord to the AC power source.
16. Press the Power On/Standby button.
The server exits standby mode and applies full power to the system. The system power LED changes
from amber to green.
After you replace the system board, you must re-enter the server serial number and the product ID.
1. During the server startup sequence, press the F9 key to access RBSU.
2. Select the Advanced Options menu.
3. Select Service Options.
4. Select Serial Number. The following warning appears:
Warning: The serial number should ONLY be modified by qualified service
personnel. This value should always match the serial number located on the
chassis.
5. Press the Enter key to clear the warning.
6. Enter the serial number and press the Enter key.
7. Select Product ID. The following warning appears:
Warning: The Product ID should ONLY be modified by qualified service
personnel. This value should always match the Product ID located on the
chassis.
8. Enter the product ID and press the Enter key.
9. Press the Esc key to close the menu.
10. Press the Esc key to exit RBSU.
11. Press the F10 key to confirm exiting RBSU. The server automatically reboots.

HP ProLiant MicroServer Gen8 Specifications

General

Tcase	65.3 °C
Bus type	DMI
FSB Parity	No
Processor cache	3 MB
Processor cores	2
Processor model	i3-3240
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Desktop Series
Processor threads	4
Processor codename	Ivy Bridge
Motherboard chipset	Intel® C204
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Design Power (TDP)	55 W
Supported processor sockets	LGA 1155 (Socket H2)
Number of processors installed	1
Thermal solution specification	PCG 2011C
CPU multiplier (bus/core ratio)	34
Thermal Monitoring Technologies	Yes
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
HDD size	3.5 \
RAID levels	0, 1, 10
HDD interface	Serial ATA
Optical drive type	DVD±RW
Total storage capacity	1000 GB
Maximum storage capacity	12 TB
Memory slots	2x DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
On-board graphics card ID	0x152
On-board graphics card model	Intel® HD Graphics 2500
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Power supply	200 W
Chassis type	Ultra Micro Tower
Serial ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	2.0
Operating system installed	-
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware
Processor ARK ID	65690
Intel Secure Key Technology version	0.00
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	245 mm
Width	230 mm
Height	232.4 mm
Weight	9800 g
