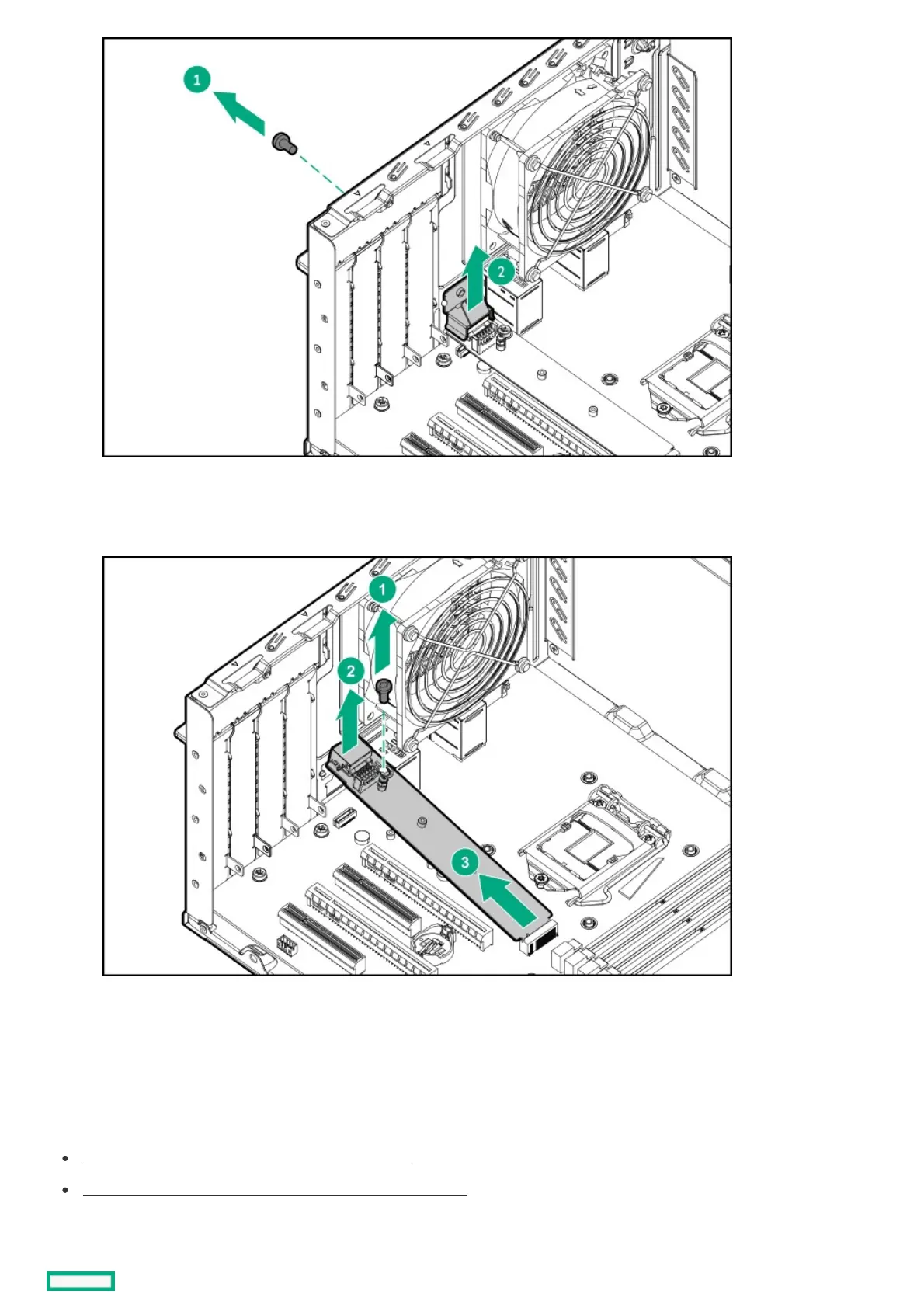

b. Remove the module screw (callout 1).
c. Carefully lift the port end of the module up (callout 2), and then disconnect the module from the system board (callout 3)
To replace the component, reverse the removal procedure.
M.2 SATA SSD option replacementM.2 SATA SSD option replacement
Removing and replacing the M.2 SATA SSD add‑in card
Removing and replacing the M.2 SATA SSD from the add‑in card
