Component identification 11

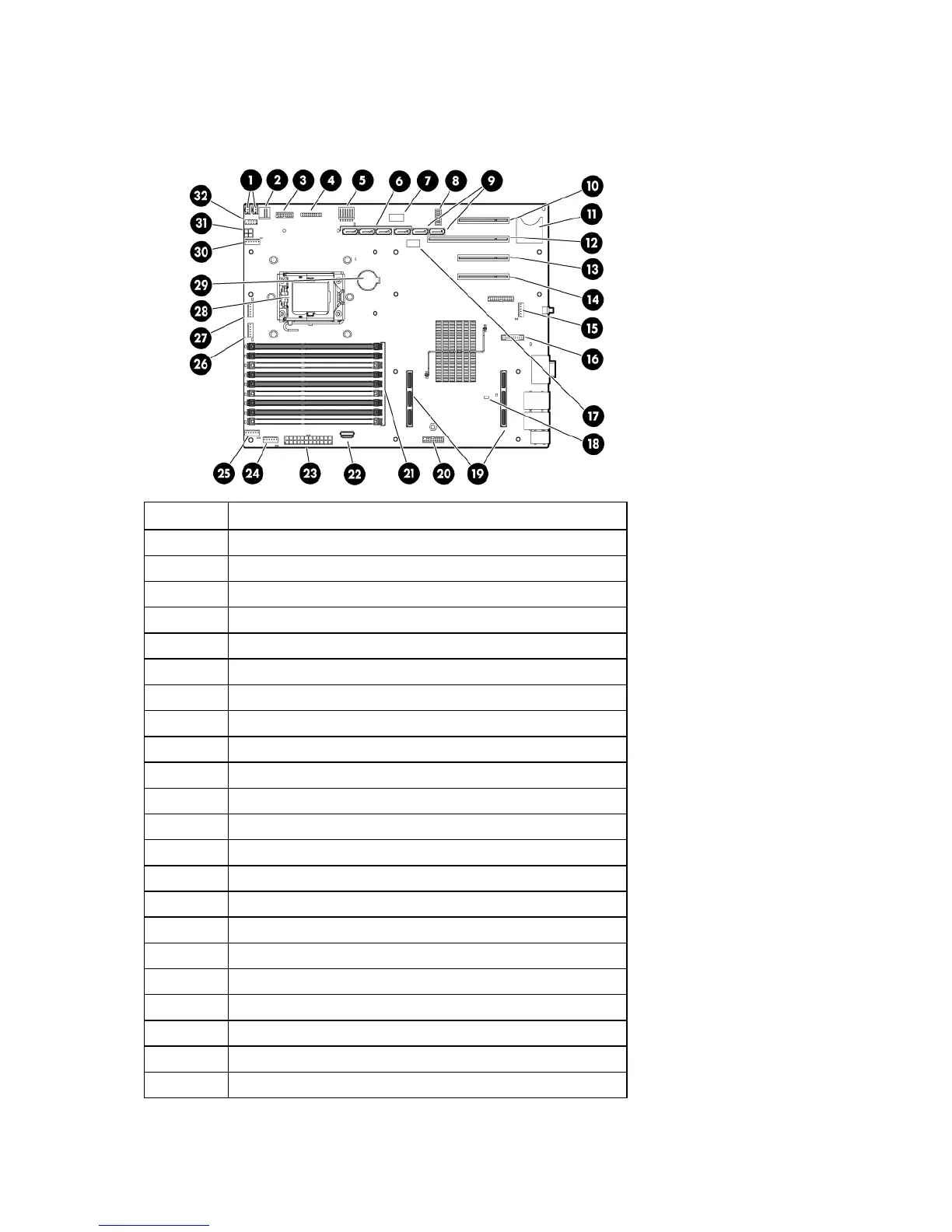

System board components
For this server, some system board slots and connectors are reserved.
Item Description
1 Hard drive backplane connectors (2)
2 Internal USB connector
3 Redundant power supply connector
4 Front panel connector
5 Reserved
6 SATA connectors 1-4 (hard drive)
7 Hard drive LED connector
8 System maintenance switch
9 SATA connectors 5-6 (optical drive)
10 Slot 3 PCIe1 x8 (1)
11 SD card slot
12 Slot 4 PCIe2 x16 (16, 8, 4, 2, 1)
13 Slot 5 PCIe2 x8 (4, 2, 1)
14 Slot 6 PCIe2 x8 (4, 2, 1)
15 Fan 6 connector
16 Dedicated iLO 2 module connector (optional)
17 Hard drive backplane connector
18 NMI jumper
19 Processor board connectors
20 TPM connector
21 Processor 1 DIMMs (1-9)
22 USB connector
