Cabling 83

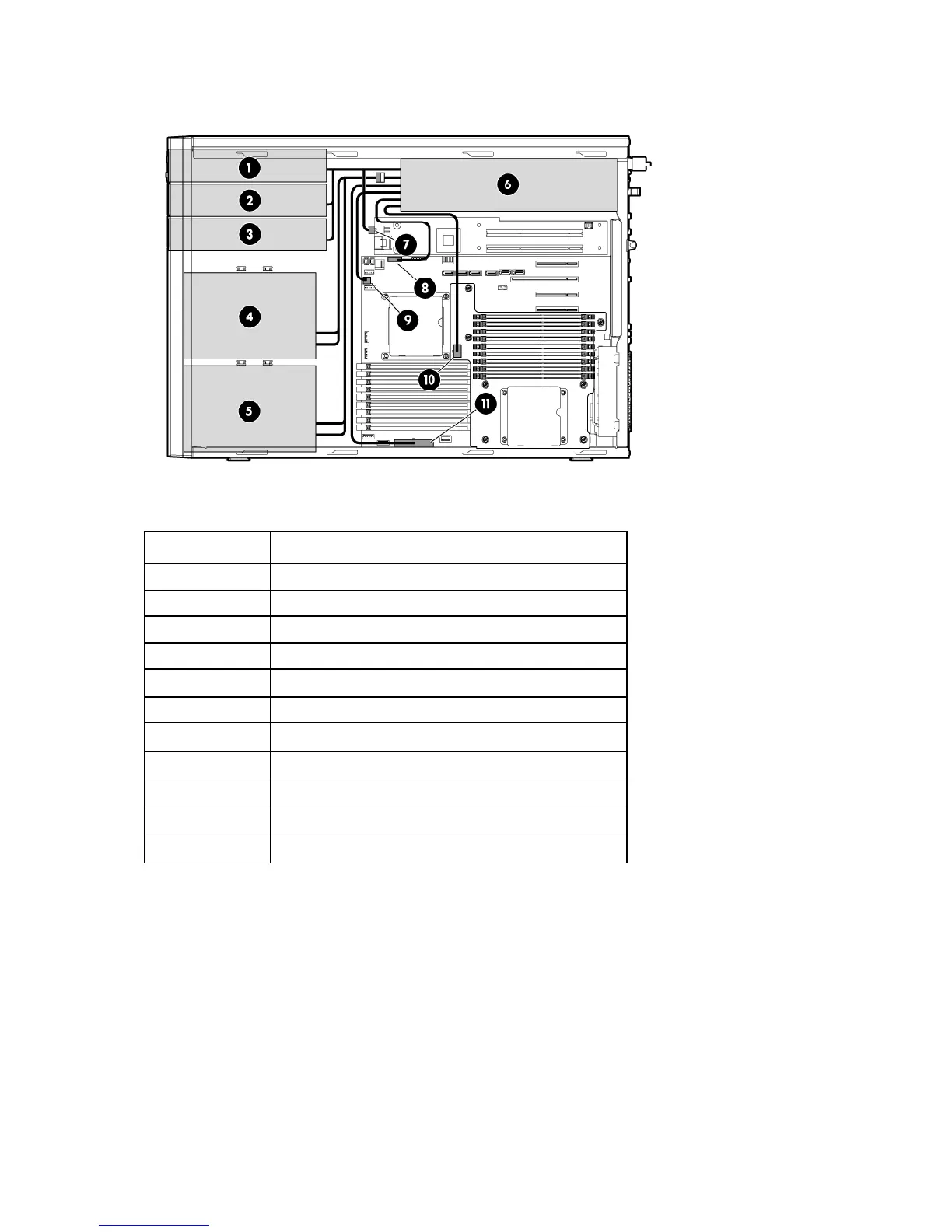

Hot-plug hard drive redundant power cabling
The hard drive backplane uses the 4-pin power connectors.
When connecting SATA hard drives, be sure to use the black SATA power connectors.
Item Description
1 Media bay 11
2 Media bay 10
3 Media bay 9
4 Hard drive bay (hard drives 1-4)
5 Hard drive bay (hard drives 5-8)
6 Power supply
7 4-pin power connector (P19)
8 16-pin power connector
9 4-pin power connector (P3)
10 8-pin power connector
11 24-pin power connector
