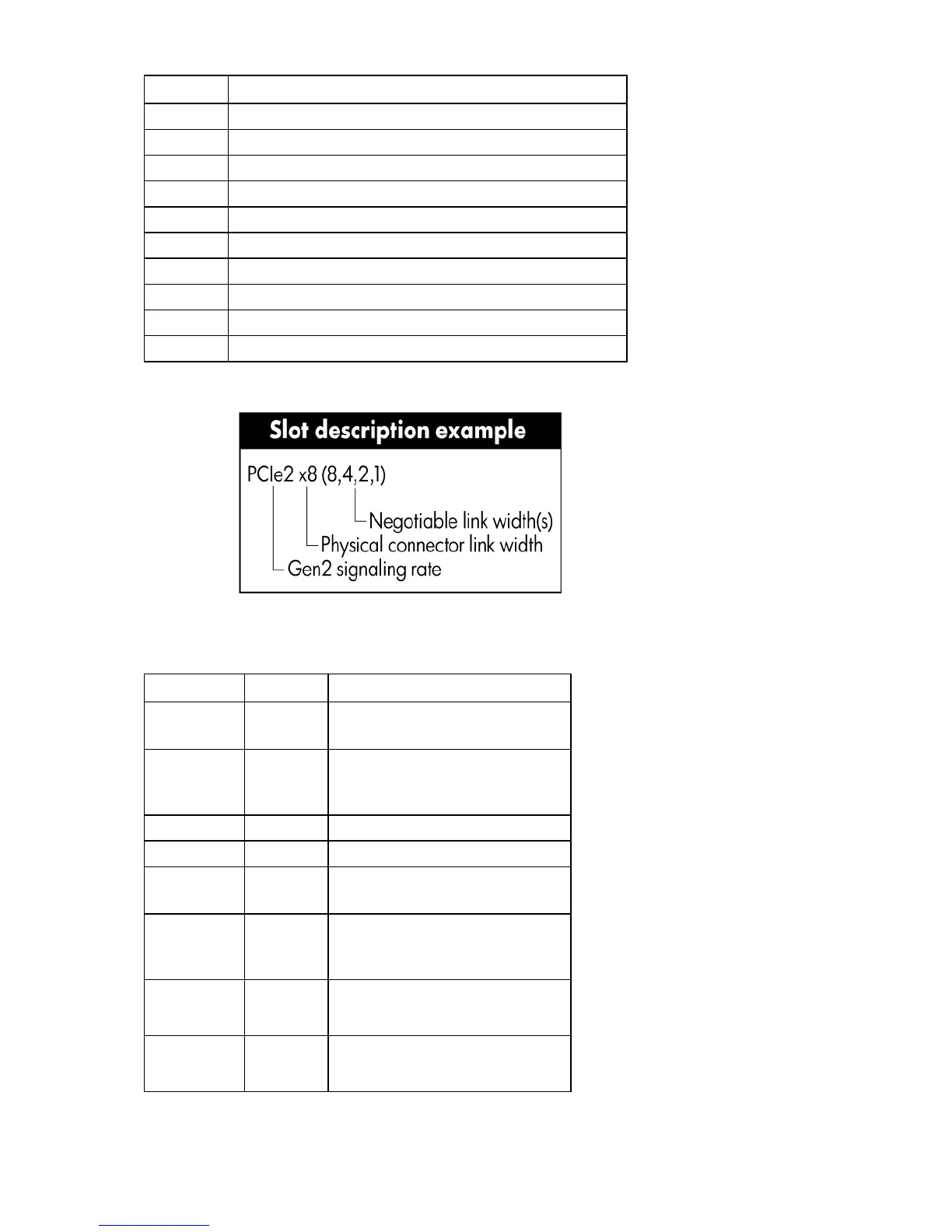

Component identification 12
Item Description
23 System power connector
24 Fan 1 connector
25 Fan 1.5 or 2 connector
26 Fan 3 connector
27 Reserved
28 Processor socket 1 (populated)
29 Battery
30 Reserved
31 Power connector
32 Front USB connector
* The server supports one optical drive that can be connected to either SATA connector 5 or SATA connector 6.
System maintenance switch
Position Default Function
S1 Off Off = iLO 2 security is enabled.
On = iLO 2 security is disabled.
S2 Off Off = Normal operation
On = RBSU will not commit any
configuration changes.*
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password enabled
On = Power-on password disabled*
S6 Off Off = Normal operation
On = BIOS will clear CMOS and
NVRAM.*
S7 Off Reserved
S8 Off Reserved
* "On" activates the function.
