Hardware options installation 76
7.

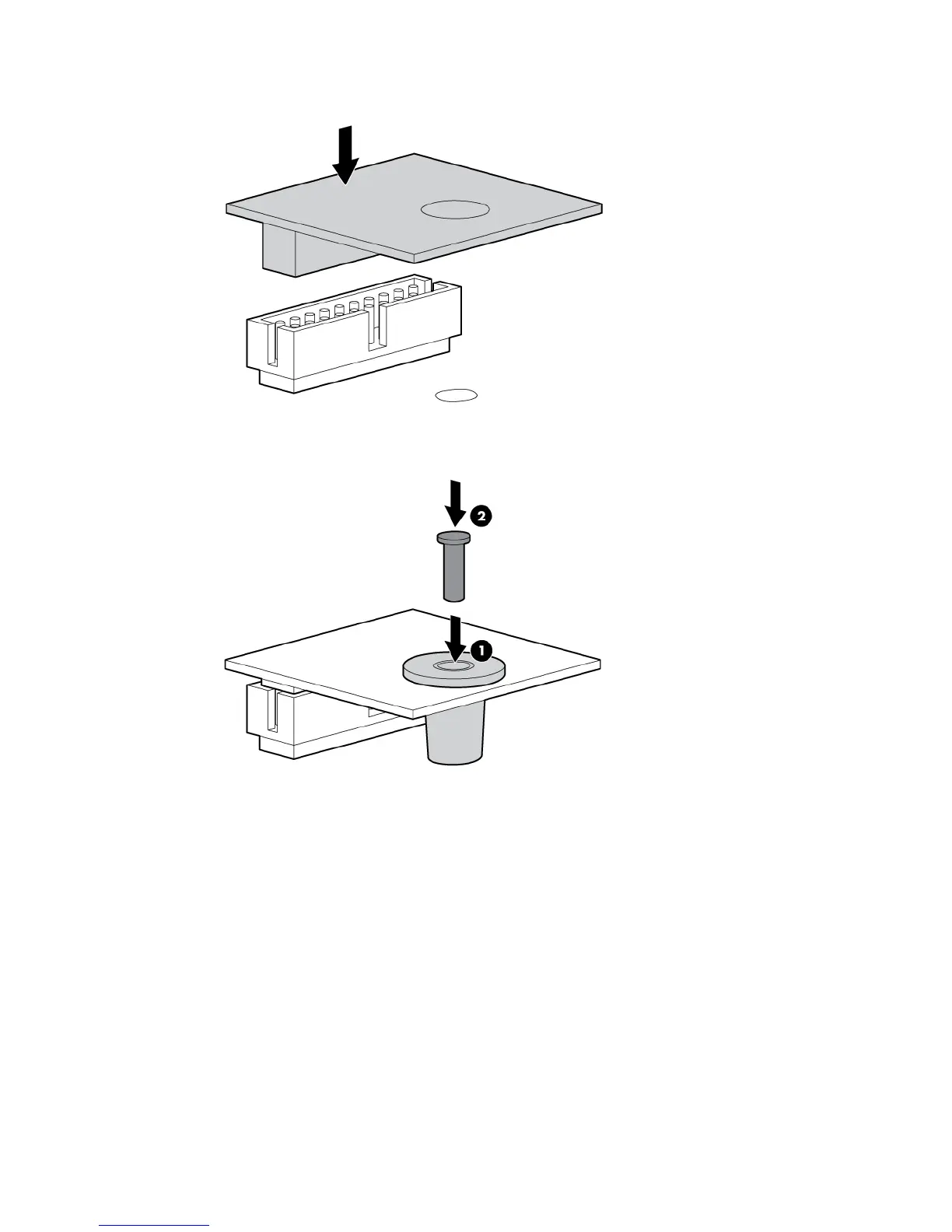

Install the TPM board. Press down on the connector to seat the board ("System board components"
on page 11).
8. Install the TPM security rivet by pressing the rivet firmly into the system board.
9. Install the processor board, if removed ("Install the processor board" on page 25).
10. Install the air baffle.
11. Install the access panel (on page 22).
12. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
13. Power up the server (on page 20).
Retaining the recovery key/password
The recovery key/password is generated during BitLocker™ setup, and can be saved and printed after
BitLocker™ is enabled. When using BitLocker™, always retain the recovery key/password. The recovery
