Component identification 8

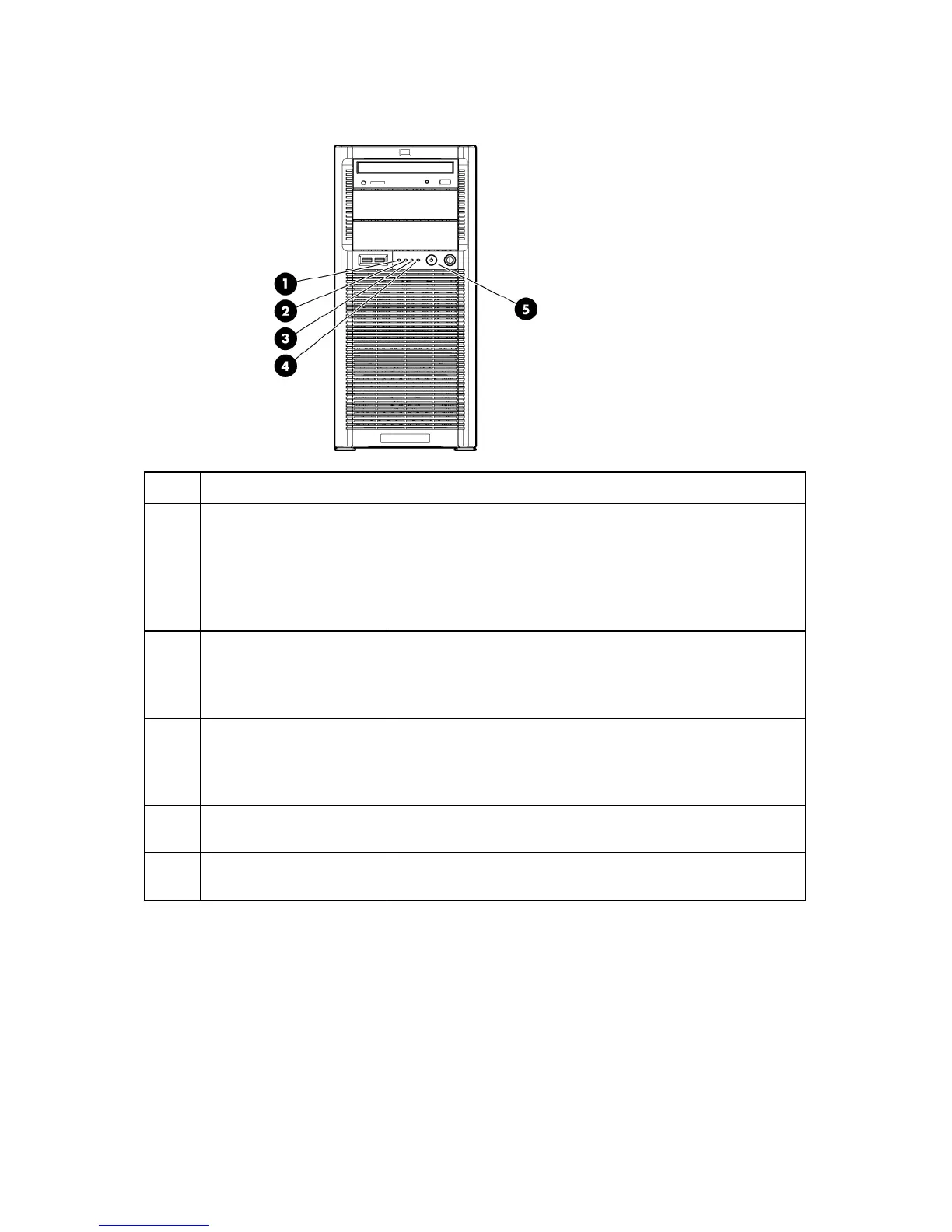

Front panel LEDs and buttons
Item Description Status
1 System health LED Green = System health is normal.
Amber = System health is degraded. To identify the component in
a degraded state, see "System board LEDs (on page 13)."
Red = System health is critical. To identify the component in a
critical state, see "System board LEDs (on page 13)."
Off = System health is normal (when in standby mode).
2 NIC 1 link/activity LED Green or flashing green = Activity exists.
Off = No activity exists.
If power is off, view the LEDs on the RJ-45 connector. See "Rear
panel LEDs and buttons (on page 10)."
3 NIC 2 link/activity LED Green = Link exists.
Off = No link exists.
If power is off, view the LEDs on the RJ-45 connector. See "Rear
panel LEDs and buttons (on page 10)."
4 Drive activity LED Green = Drive activity is normal.
Off = No drive activity exists.
5
Power On/Stand by button
and system power LED
Green = Power is on.
Amber = System is in standby mode.
