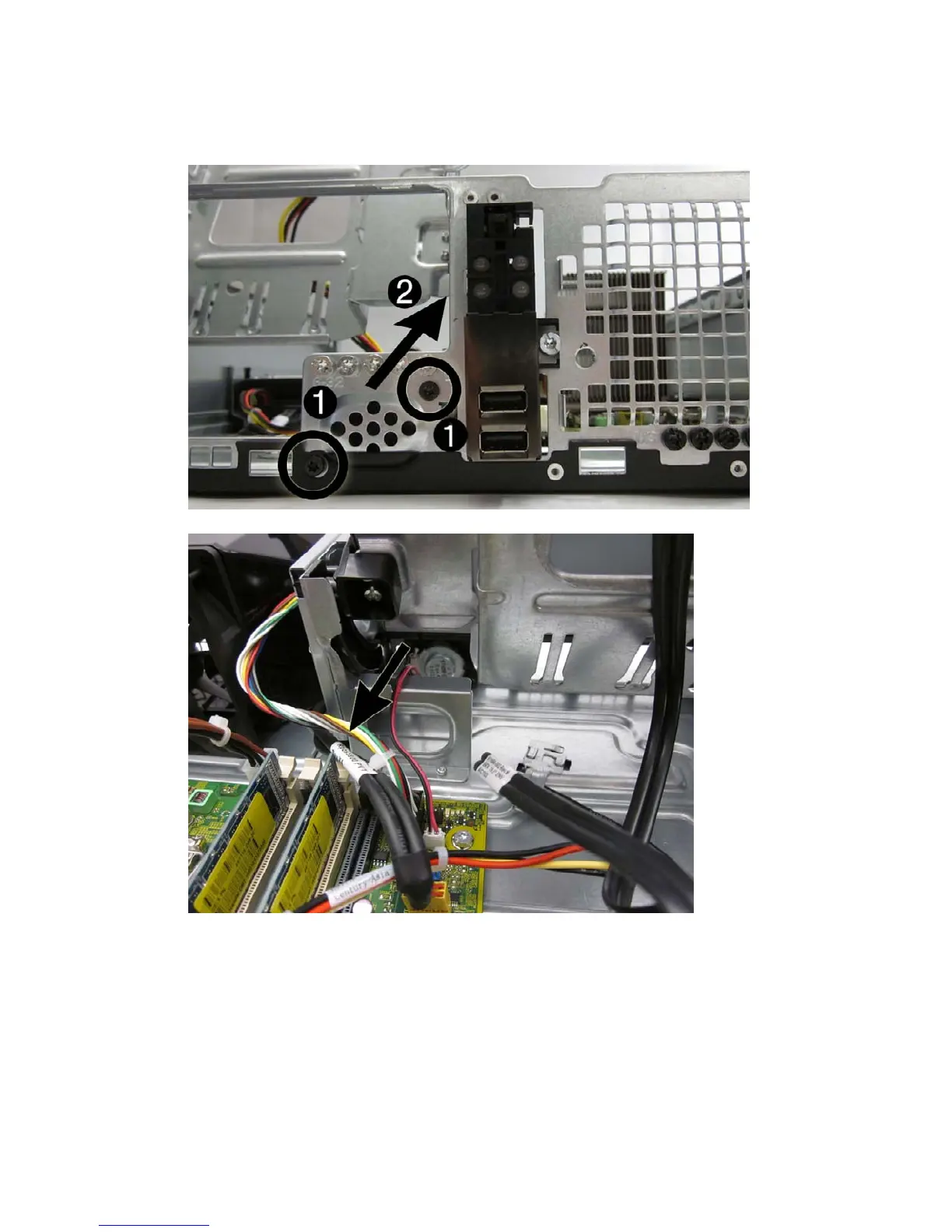

6. Remove the two screws that secure the speaker to the chassis (1) and remove the speaker by
pulling it into the computer (2) (second image below is inside view).
Figure 7-55 Removing the Speaker (1 of 2)
Figure 7-55 Removing the Speaker (1 of 2)
To install the speaker, reverse the removal procedures.
90 Chapter 7 Removal and Replacement Procedures

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
