HP rp5800 User Manual

Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 41).
2. Remove the access panel (
Access Panel on page 42).
3. Remove the front bezel (
Front Bezel on page 43).
4. Remove one of the five silver 6-32 standard screws located on the front of the chassis behind
the bezel.

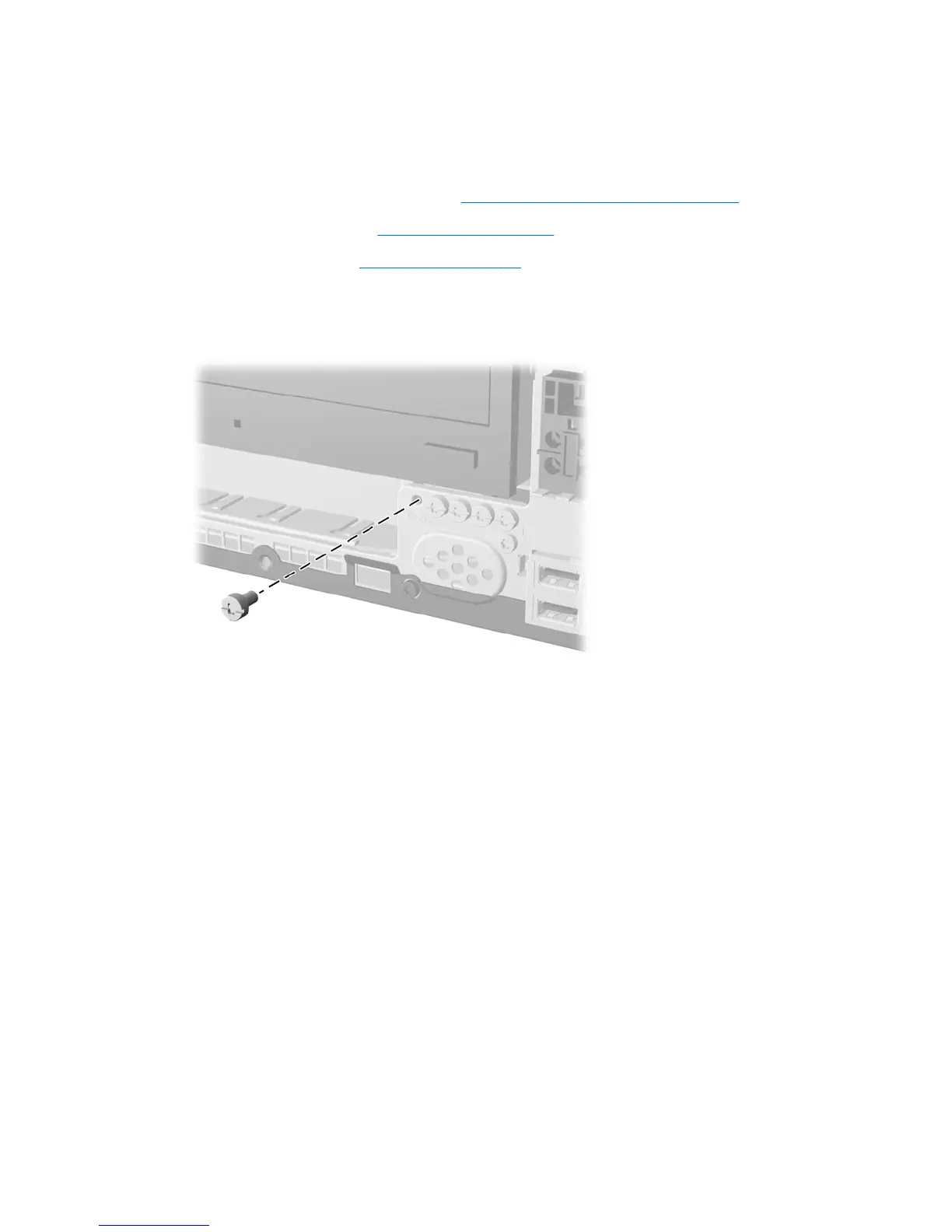

Figure 7-3 Retrieving the Front Bezel Security Screw
5. Replace the front bezel.
44 Chapter 7 Removal and Replacement Procedures

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
