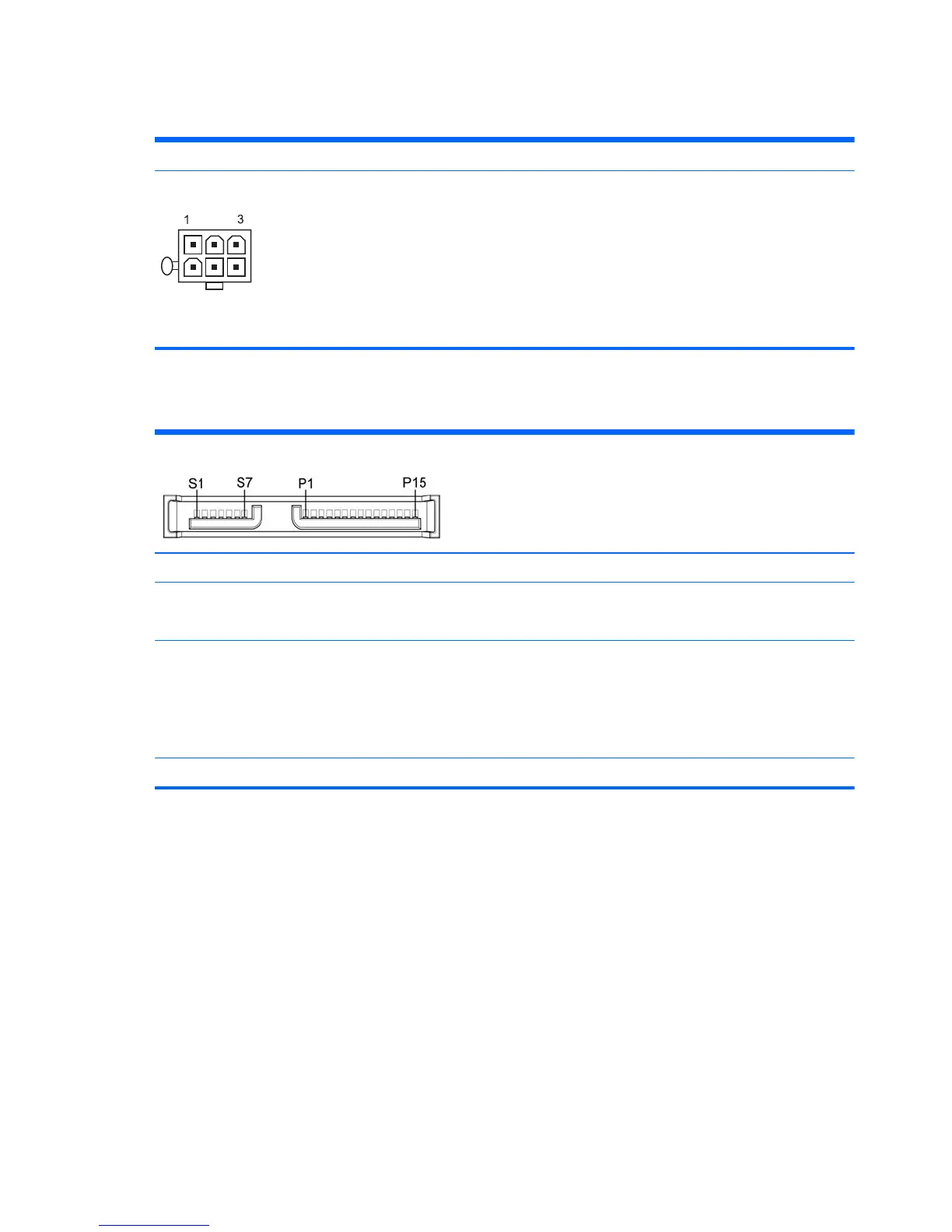

6-Pin Power (for CPU)
Connector and Icon Pin Signal
6
4
1
2
3
4
5
6
GND
GND
GND
12V CPU
12V CPU
+12V
SATA Data and Power
Drive Connector
Pin Signal Pin Signal Pin Signal Pin Signal
S1
S5
Ground
B-
S2
S6
A+
B+
S3
S7
A-
Ground
S4 Ground
P1
P5
P9
P13
Ground
B-
V 5
V 12
P2
P6
P10
P14
V 3.3
Ground
Ground
V12
P3
P7
P11
P15
V 3.3
V 5
Reserved
V 12
P4
P8
P12
Ground
V 5
Ground
*S = Data, P = Power
112 Appendix A Connector Pin Assignments

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
