Front USB and Power Switch Assembly
Description Spare part number
Front USB and power switch assembly 655579-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 41).
2. Remove the access panel (
Access Panel on page 42).
3. Remove the front bezel (
Front Bezel on page 43).
4. Remove the fan duct
Fan Duct on page 84.
5. Rotate the drive cage to its upright position.
6. Raise the drive cage to its upright position.
7. Disconnect the cables from the following system board connectors:
FRONT USB (yellow)
PB/LED (black)

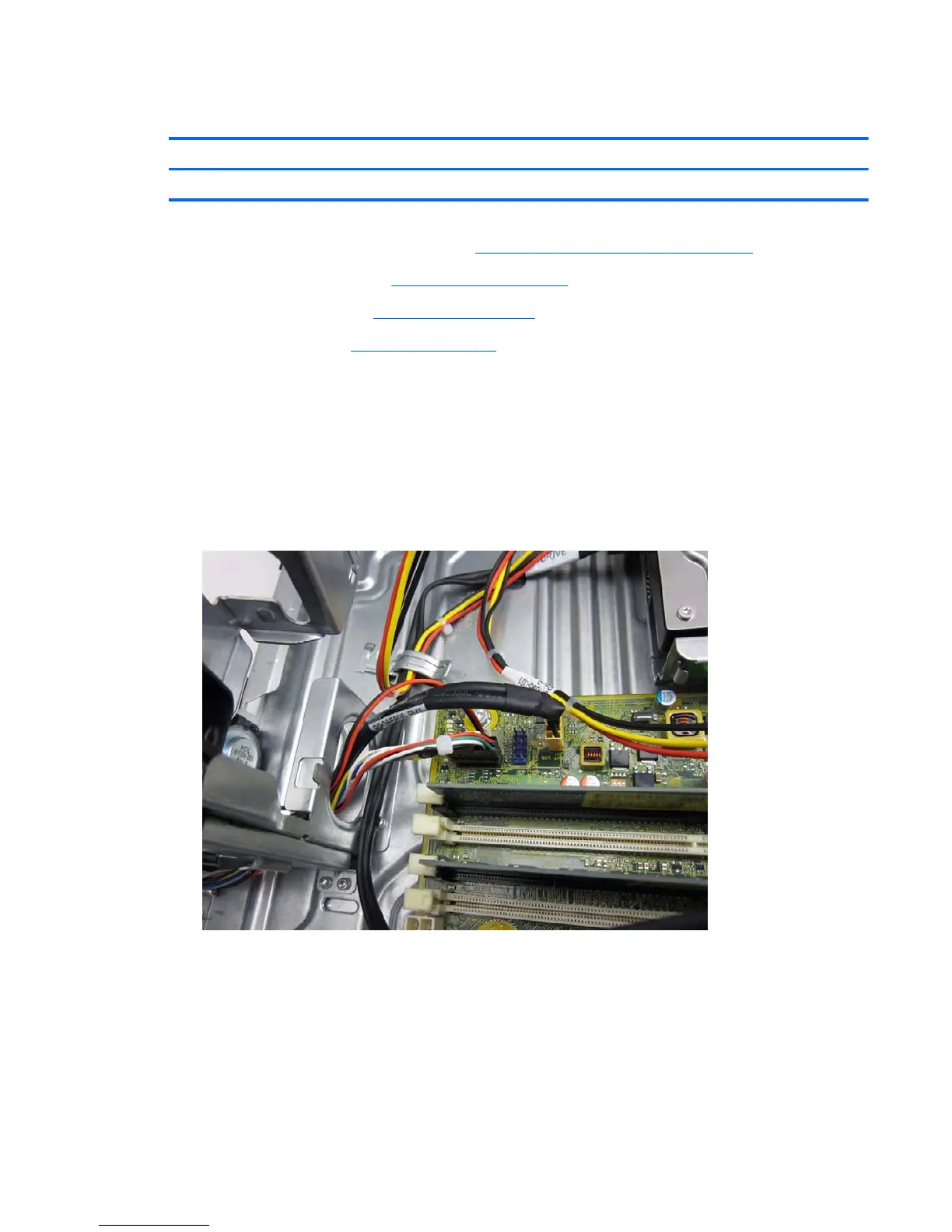

Figure 7-51 Disconnecting the Front USB and Power Switch Cables
Front USB and Power Switch Assembly 87
