Bezel Blank
On some models, there is a bezel blank covering the optical drive bay that must be removed before
installing a drive. To remove a bezel blank:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 41).
2. Remove the access panel (
Access Panel on page 42).
3. Remove the front bezel (
Front Bezel on page 43).
4. Push outward on the two retaining tabs that hold the bezel blank in place (1) then pull the blank
inward to remove it (2).

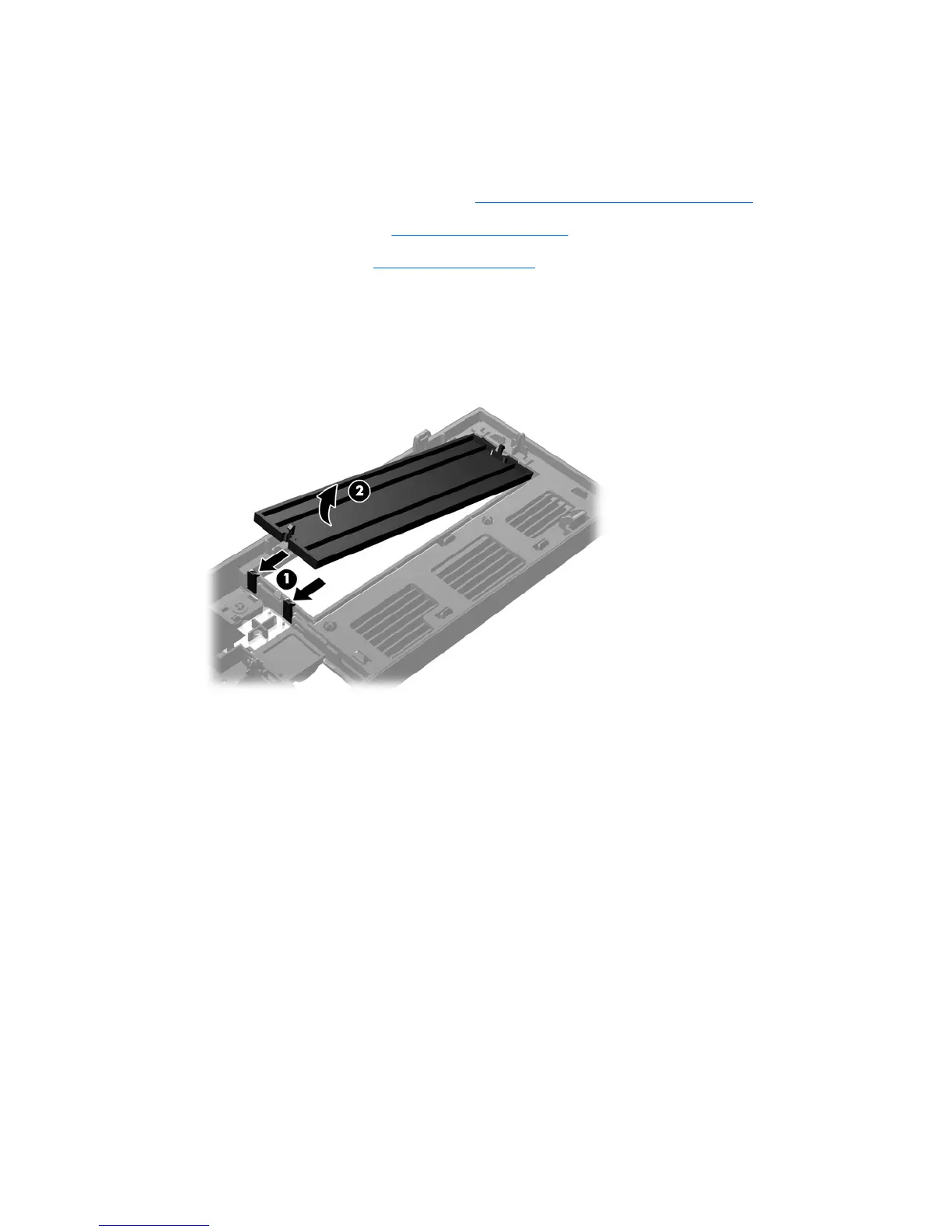

Figure 7-7 Removing a Bezel Blank
Bezel Blank 47

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
