6. Disconnect the power cables from the following system board connectors:
●
PWRCMD
●
PWRCPU
●
PWR
7. Pull the power supply forward (1) until the posts on the power supply move forward in the power
supply bracket, and then lift the power supply straight up and out of the chassis (2).

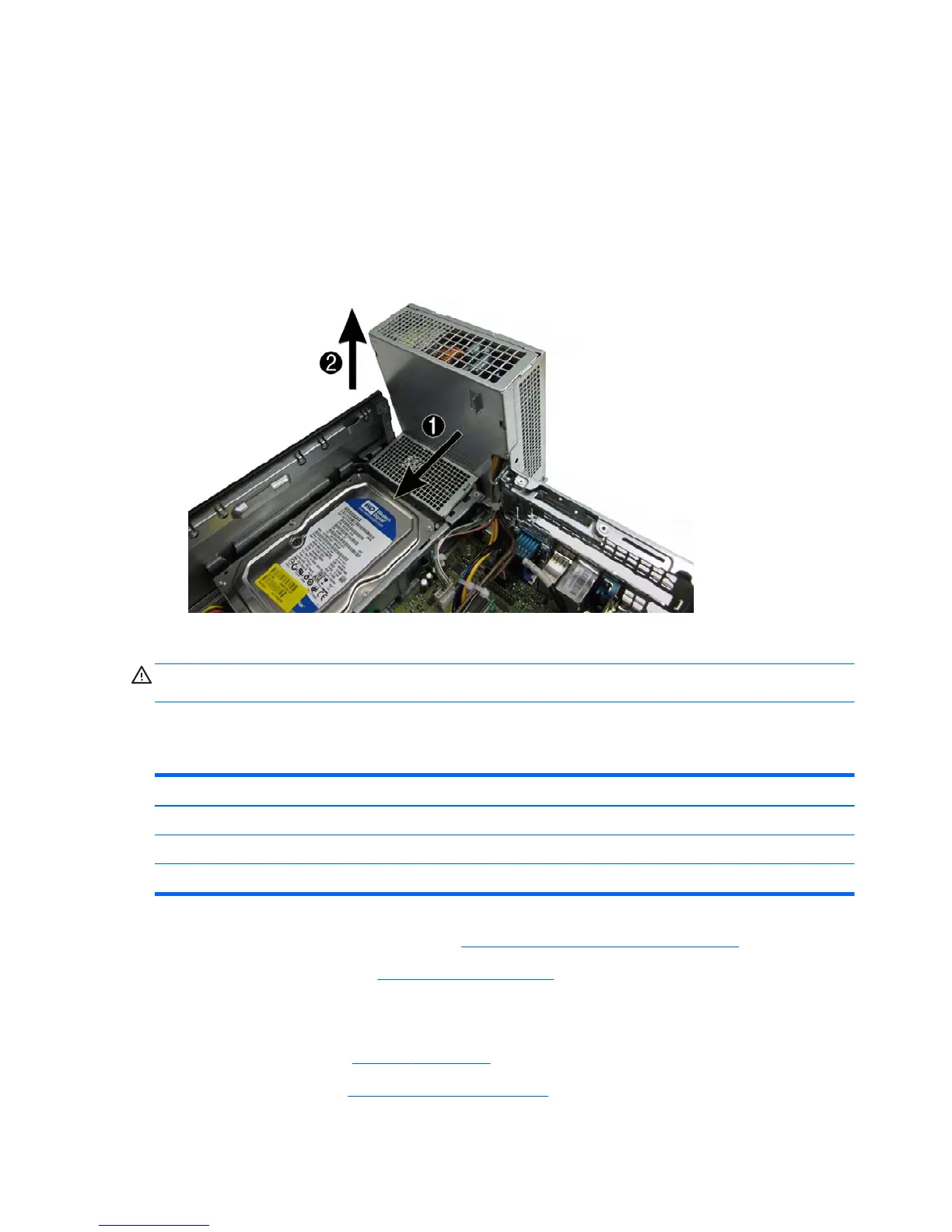

Figure 7-58 Removing the Power Supply
To install the power supply, reverse the removal procedure.
CAUTION: When installing the power supply cables, make sure they are properly positioned so
they are not cut by the drive cage and are not pinched by the rotating power supply.
System Board
Description Spare part number
For use in 8200 Elite Series models:
System board, includes Trusted Platform Module (TPM) (includes thermal material) 655580-001
System board, does not include Trusted Platform Module (TPM) 628930-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 41).
2. Remove the access panel (
Access Panel on page 42).
3. When replacing the system board, make sure the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules (
Memory on page 50)
●
Expansion cards (
Expansion Cards on page 54)
94 Chapter 7 Removal and Replacement Procedures
