Replace the front panel
TIP: An animation which guides you through removing and replacing the front panel is available on the web
(see
www.hp.com/support, and search on your product).
To replace the front panel, follow these steps:
1. Press the Power button to turn off the product, and then disconnect the power cable.
2. Raise the scan lid.

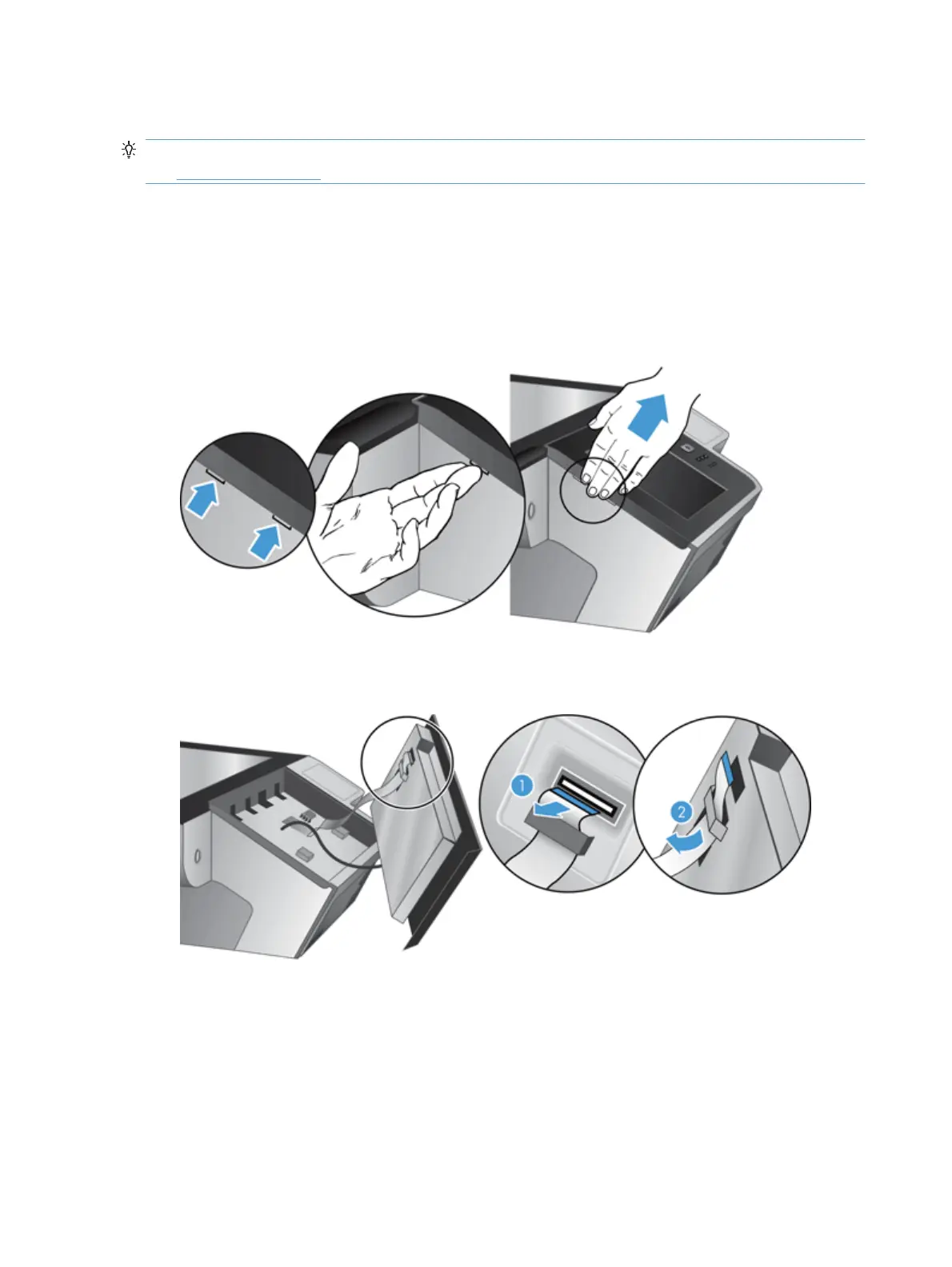

3. Locate the indents on the underside of the front panel, press in at the location shown, and then lift the
front panel gently as it releases.
4. Invert the front panel, hold it firmly with one hand, disconnect the ribbon cable (1), and then gently pull
the ribbon cable through the cable restraint (2).
88 Chapter 8 Replace and install components ENWW
