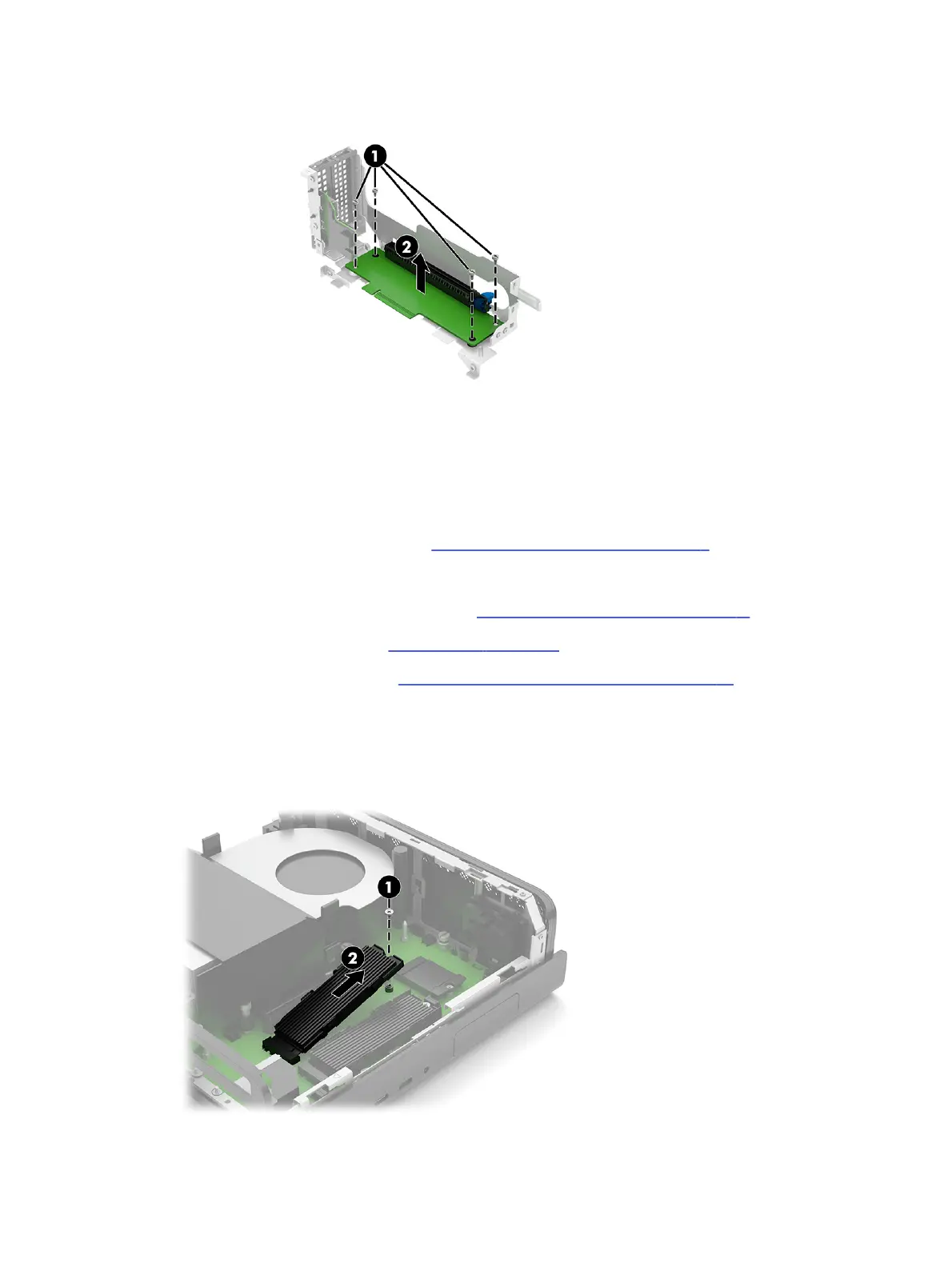

b. Remove the board from the assembly (2).
To install riser assembly and expansion cards, reverse the removal procedure.
Solid-state drive
To remove the solid-state drive assembly, use these procedures.
For list of available solid-state drives, see Computer major components on page 5.
Before removing the solid-state drive assembly, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 17).
2. Remove the access panel (see Access panel on page 17).
3. Remove the riser assembly (see Riser assembly and expansion cards on page 25).
Remove the solid-state drive assembly:
1. Remove the screw from the solid-state drive assembly (1).
2. Pull the drive assembly from the system board connector (2).
28
Chapter 4 Removal and replacement procedures
