Table 5-2 Solid-state drive descriptions and part numbers (continued)
Description Spare part number
2 TB, M.2 2280, PCIe-4×4, NVMe solid-state drive with TLC M52027-002
1 TB, M.2 2280, PCIe-4×4, NVMe solid-state drive with TLC M16560-002
1 TB, M.2 2280, PCIe-4×4, NVMe, SED solid-state drive with TLC N23415-002
512 GB, M.2 2280, PCIe-4×4, NVMe solid-state drive with TLC M17436-002
512 GB, M.2 2280, PCIe-4×4, SED solid-state drive with TLC M52031-002
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 40).
2. Remove the bottom cover (see Bottom cover on page 40).

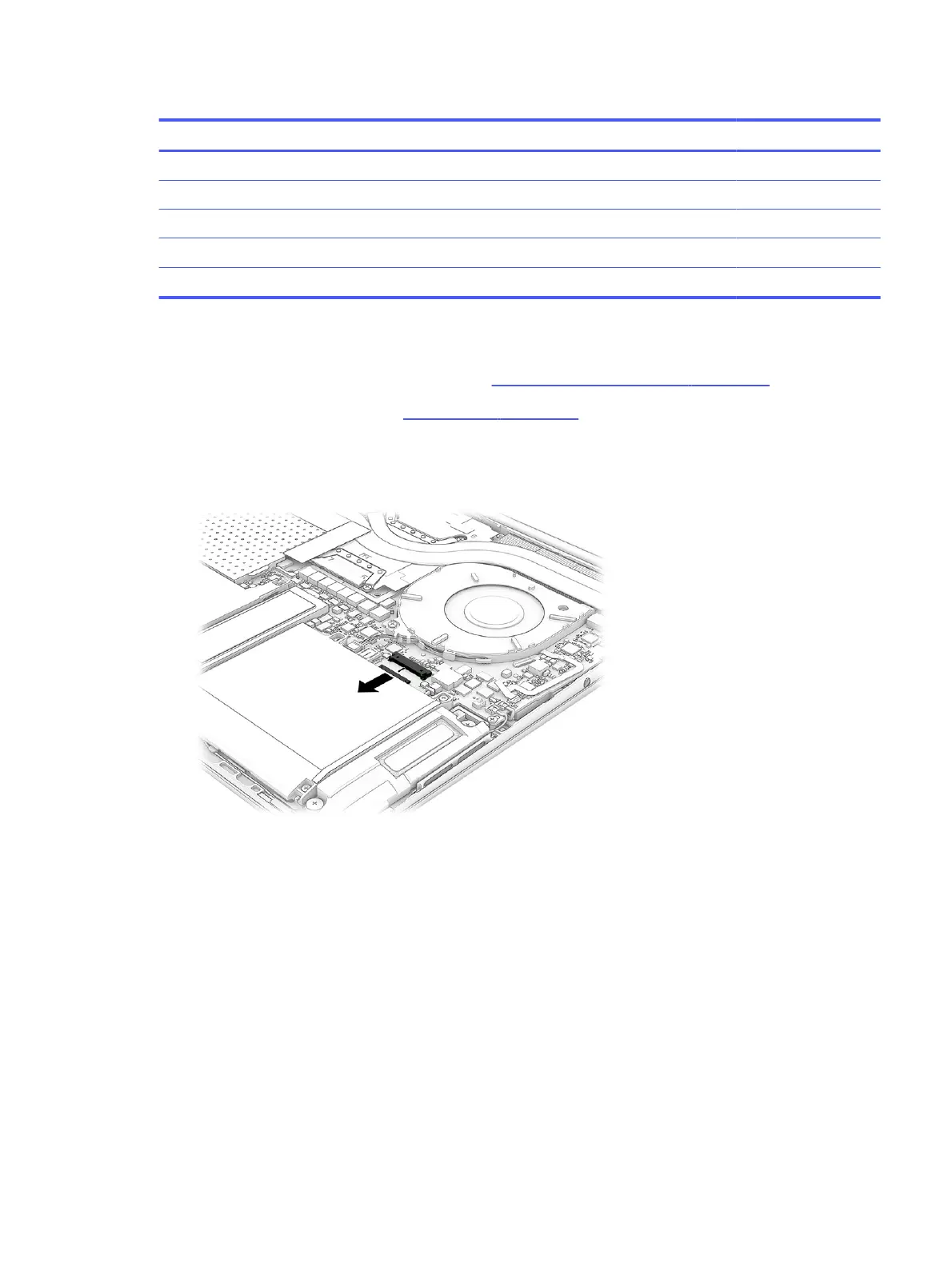

Remove the solid-state drive:
1. Disconnect the battery cable from the system board.
2. Remove the two Phillips M2.0 × 3.2 screw (1) that secures the solid-state drive and solid-state drive
shield to the system board.
3. Lift and remove the solid-state drive shield (2).
The solid-state drive shield is included in the Shield Kit, spare part number N10942-001.
Solid-state drive
43
