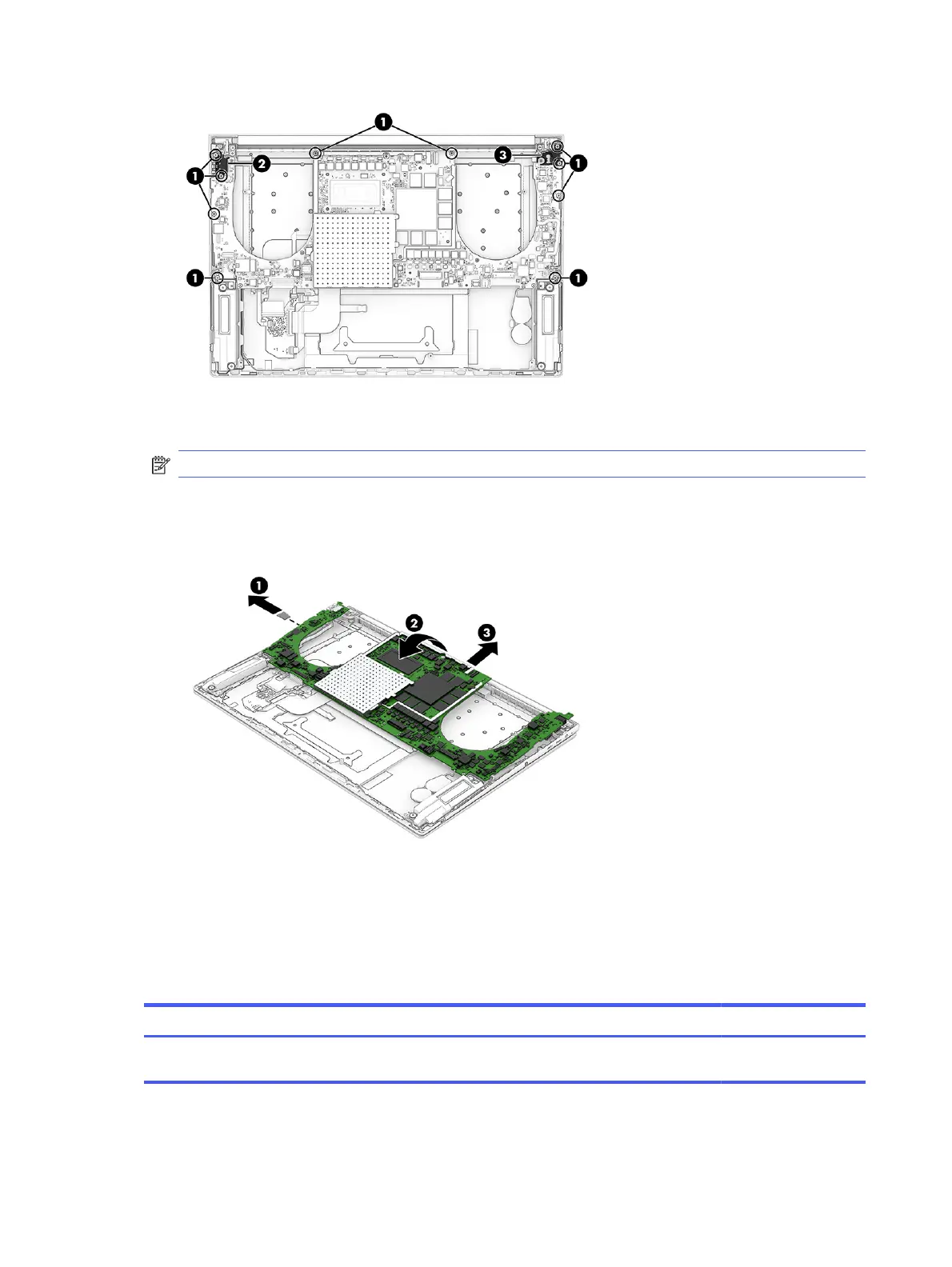

10. Remove the SD card insert (1) from the SD card slot.
NOTE: The SD card insert is included in the Plastics Kit, spare part number N51319-001.
11. Lift the rear edge of the system board (2) until it rests at an angle.
12. Slide the system board (3) up and back at an angle to remove it.
To install the system board, reverse the removal procedure.
Wireless antenna
To remove the wireless antenna, use this procedure and illustration.
Table 5-9
Wireless antenna description and part number
Description Spare part number
Wireless antenna (includes main antenna and auxiliary antenna cables, transceivers, and double-
sided adhesive)
N10931-001
Before removing the wireless antenna, follow these steps:
