125

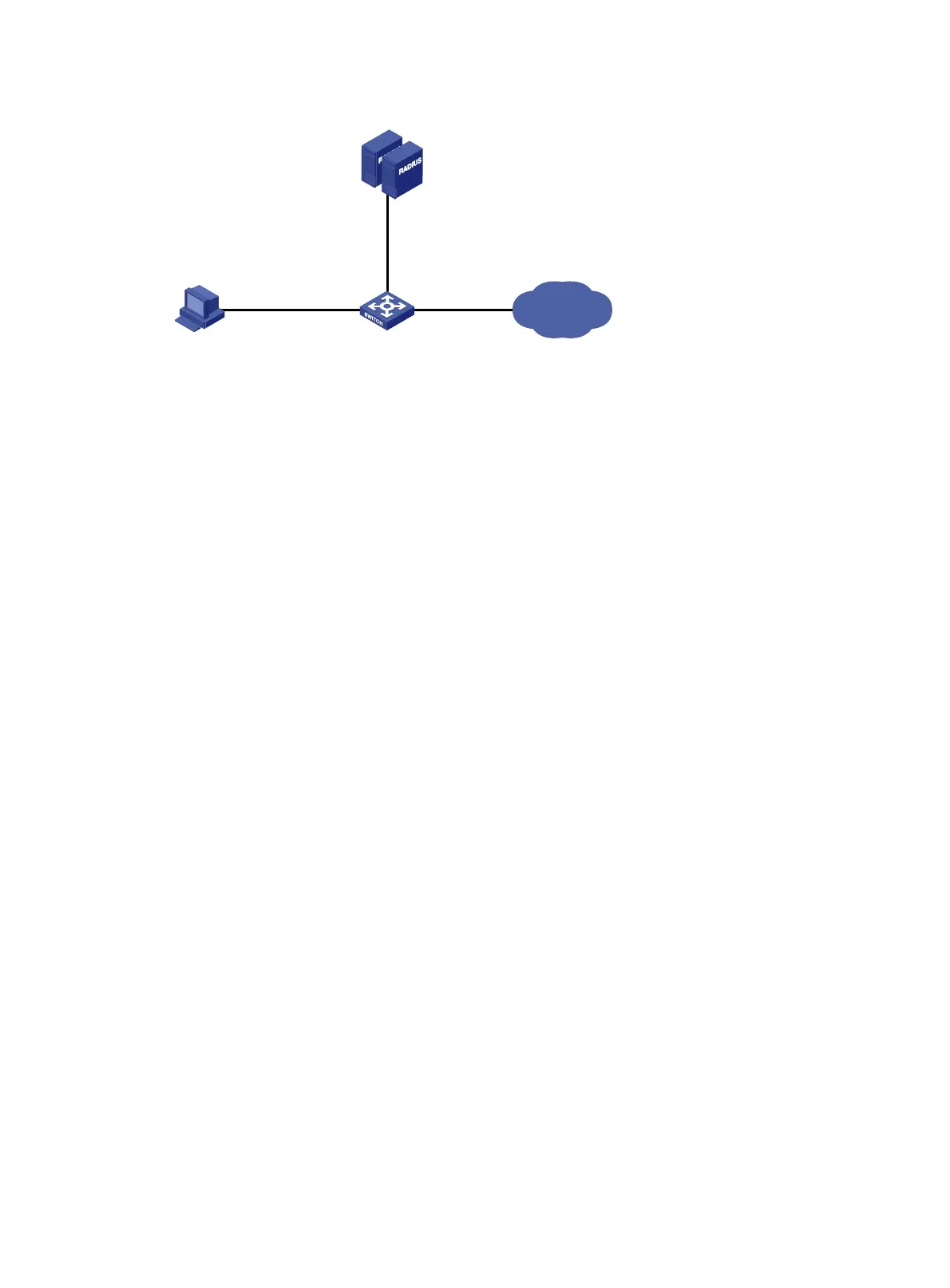

Figure 43 Network diagram
Configuration procedure
1. Configure IP addresses for the interfaces, as shown in Figure 43. (Details not shown.)
2. Configure a RADIUS scheme on the switch:
a. From the navigation tree, select Security > Authentication > RADIUS.
b. Add RADIUS scheme macauth.
c. Configure the primary authentication server:
− Set the IP address to 10.1.1.1.
− Set the authentication port number to 1812.
− Set the shared key to name.
− Set the server state to Active.
d. Configure the primary accounting server:
− Set the IP address to 10.1.1.1.
− Set the accounting port number to 1813.
− Set the shared key to name.
− Set the server state to Active.
e. Configure the switch to not include domain names in the usernames sent to the RADIUS
server.
3. Configure an ISP domain on the switch:
a. From the navigation tree, select Security > Authentication > ISP Domains.
b. Add ISP domain macauth, and set the domain state to Active.
c. Set the access service to LAN access.
d. Configure the ISP domain to use RADIUS scheme macauth for authentication,
authorization, and accounting of LAN users.
4. Configure MAC authentication on the switch:
a. From the navigation tree, select Security > Access Control > MAC Authentication.
b. Enable MAC authentication globally.
c. Enable MAC authentication on GigabitEthernet 1/0/1.
d. On the advanced settings page, configure the following parameters:
− Set all users to use the same username and password.
− Configure the username as aaa and p
assword as qaz123wdc.
− Specify the authentication domain as macauth.
5. Configure the RADIUS server:
Internet
SwitchHost
192.168.1.2/24
GE1/0/1
Vlan-int2
192.168.1.1/24
RADIUS server
10.1.1.1/24
GE1/0/2
Vlan-int3
10.1.1.10/24
