Removal and replacement procedures 48
3.
Place the server on its side.
4. Remove the access panel (on page 24).
5. If installed, remove the PCI air baffle (on page 25).
6. Remove the system air baffle (on page 26).

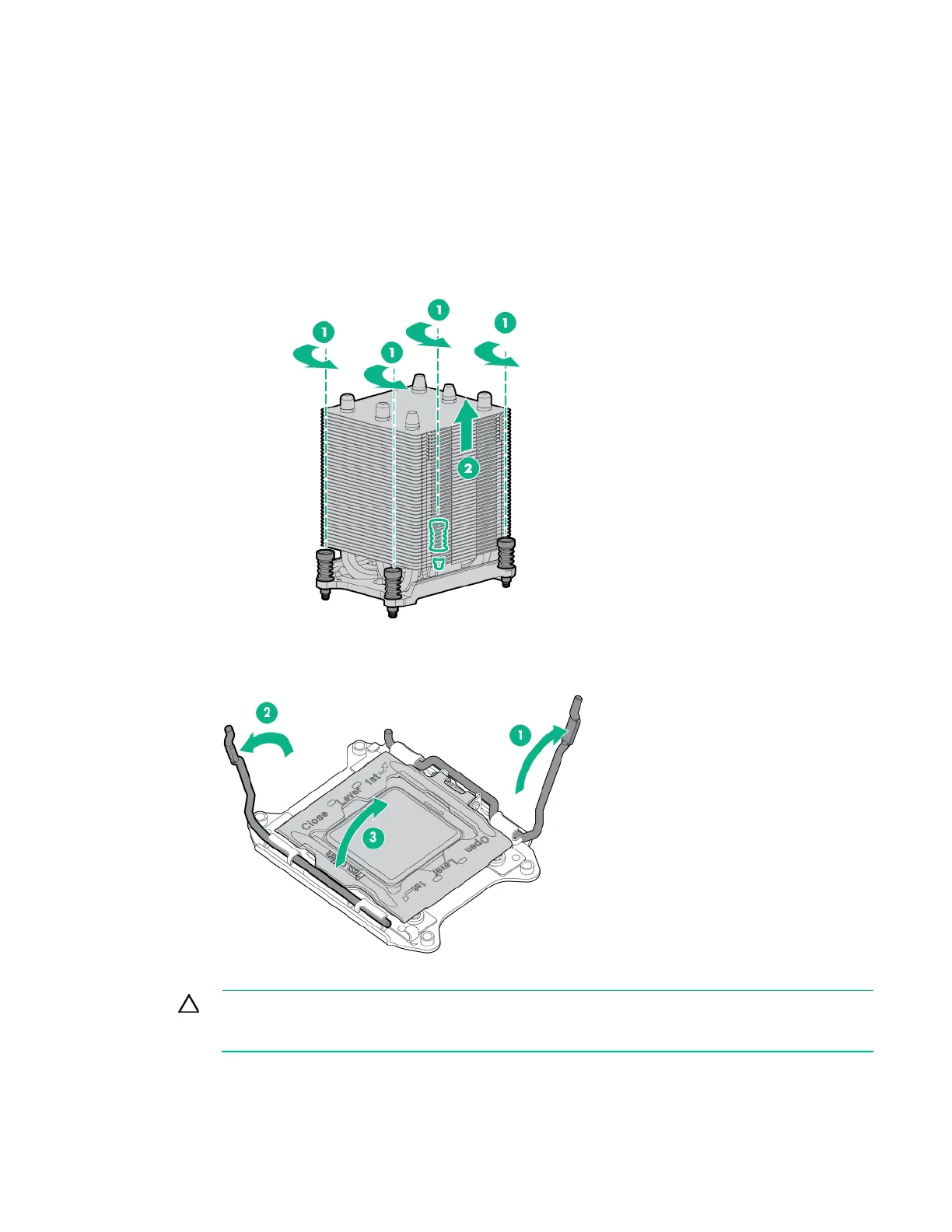

7. Remove the heatsink:
a. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of
screws.
b. Completely loosen all screws in the same sequence.
c. Remove the heatsink from the processor backplate.
8. Open each of the processor locking levers in the order indicated, and then open the processor
retaining bracket.
THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY
DAMAGED. To avoid damage to the system board, do not touch the processor or the
processor socket contacts.
