Removal and replacement procedures 50
2.

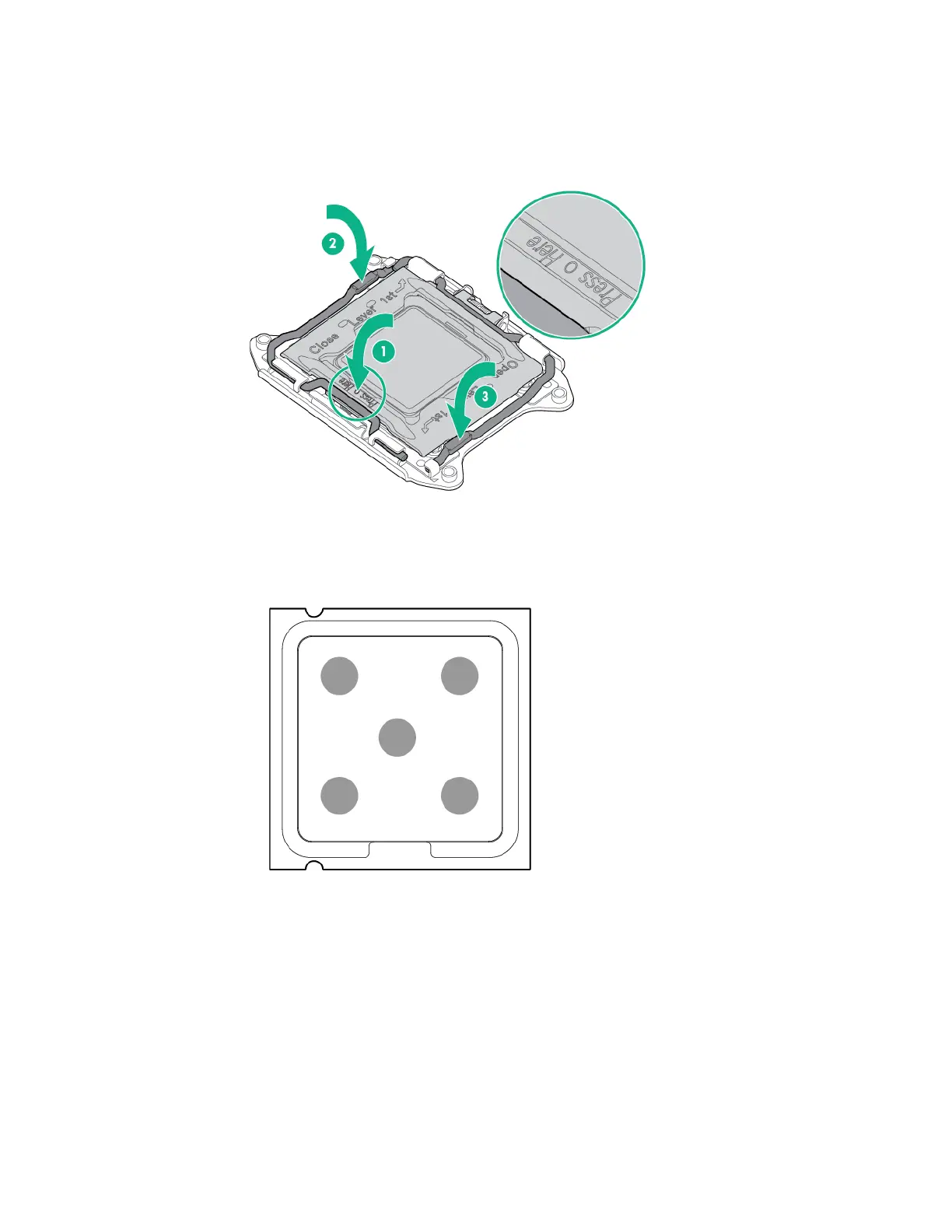

Close the processor retaining bracket. When the processor is installed properly inside the
processor retaining bracket, the processor retaining bracket clears the flange on the front of the
socket.
3. Press and hold the processor retaining bracket in place, and then close each processor locking
lever. Press only in the area indicated on the processor retaining bracket.
4. Clean the old thermal grease from the heatsink with the alcohol swab. Allow the alcohol to
evaporate before continuing.
5. Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
6. Install the heatsink:
a. Position the heatsink on the processor backplate.
b. Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of
screws.
