Shenzhen Hpmont Technology Co., Ltd Chapter 6 Function Introduction
HD30 Series Inverters User Manual ―91―
No. Name Description Range
factory setting
F15.28 Zero-frequency operation threshold 0.00
F00.06
0.00Hz
Zero-frequency hysteresis

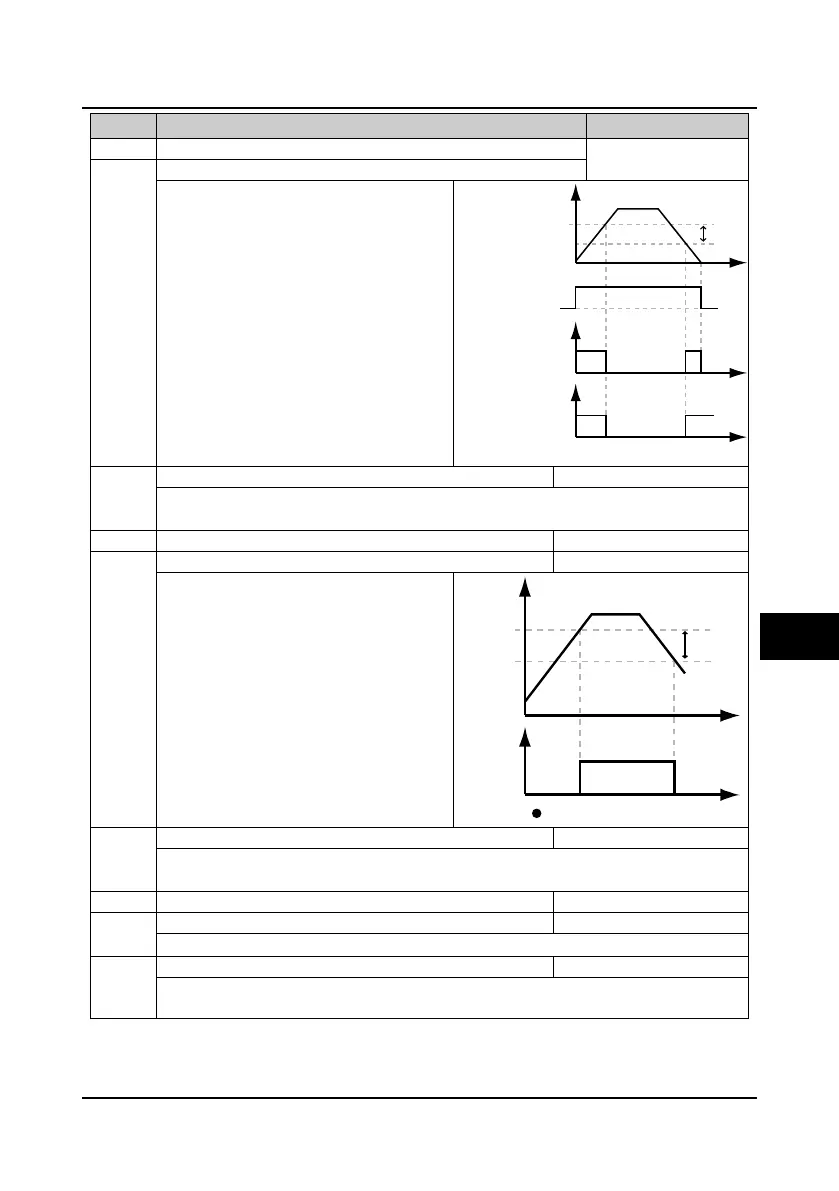

F15.28 and F15.29 are used to set the
zero-frequency operation output control function,
please see the right figure.
F15.30 FDT1 detection mode 0,1
0
0: Detect according to the reference frequency.
1: Detect according to the output frequency.
F15.31 FDT1 level 0.00
F00.06
50.00Hz
The indicating signal can be output if the setting
frequency F15.30 is higher than certain frequency
(F15.31), and becomes disabled when the setting
frequency is lower than certain frequency of
FDT1 level (F15.31 - F15.32). Please refer to FL
of the right figure.
0: Detect according to the reference frequency.
1: Detect according to the output frequency.
F15.35 FDT2 lag 0.00
F00.06
1.00Hz
Refer to parameters F15.31 and F15.32.
F15.36 Preset operating time 0
65535h
0
When the total operating time reaches the preset operating time (F15.36), the inverter will output an
indicating signal (500ms).
Running status
Running frequency
F15.29
F15.28
Zero-frequency output
Time
Time
Time
Zero-frequency
operation output
Output frequency
F15.32
F15.31
FL
DO
FL = F15.31 - F15.32
Time
Time
6
