2-5
Racing Kit
7. Clean the camshaft holder bolts in solvent and blow them dry.
Apply clean engine oil to the bolt threads and seating surface.

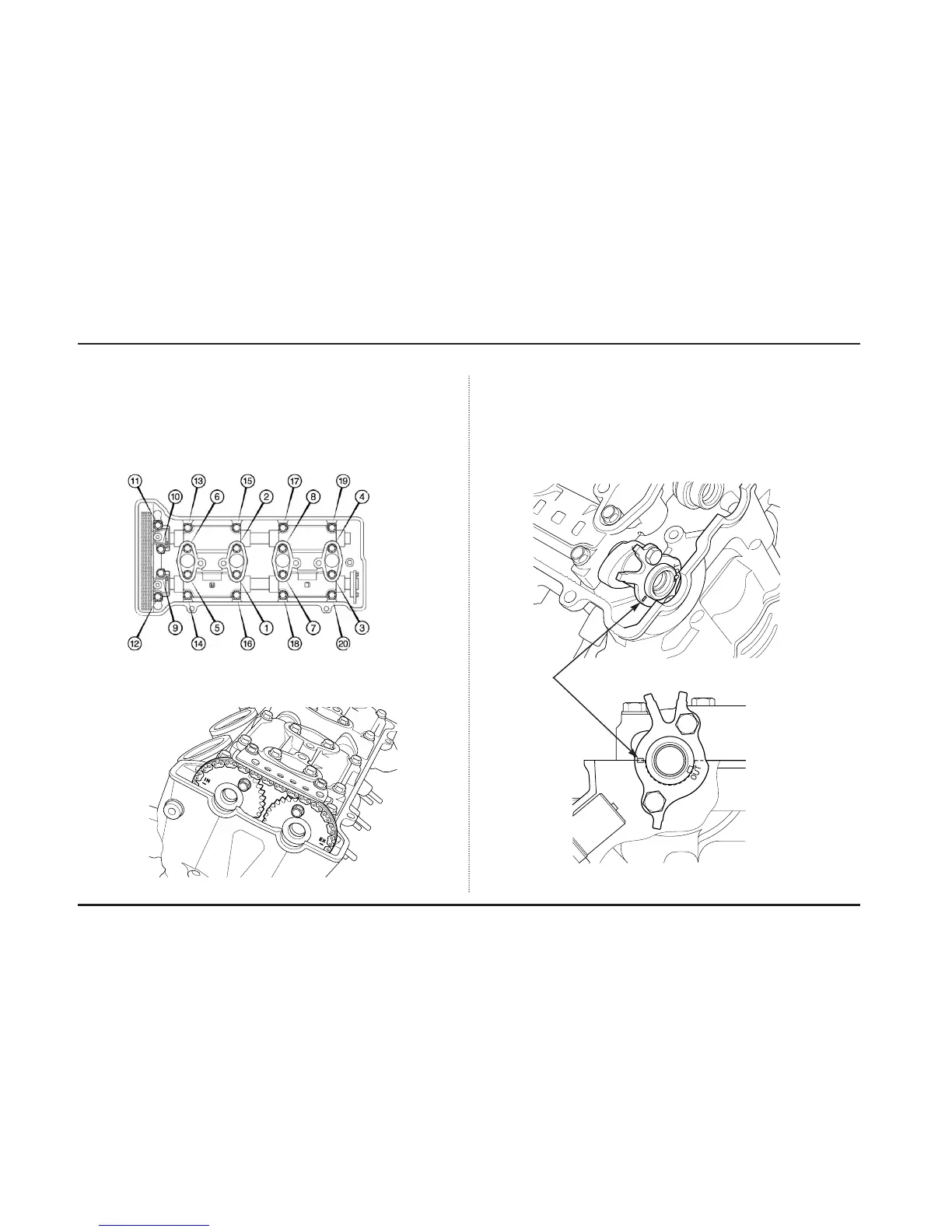

8. Install the camshaft holders and tighten the bolts in the specified order let-
tered on the camshaft holder.
Torque: 12 N•m (1.2 kgf•m, 9 lbf•ft)
Cam Pulse Rotor Adjustment
1. With the No.1 piston TDC, check that the cam pulse rotor index line aligns
with the cylinder head upper surface.
2. Tighten the cam pulse generator bolt to the specified torque.
Torque: 12 N•m (1.2 kgf•m, 9 lbf•ft)
9. Tighten the cam sprocket bolts to the specified torque.
Torque: 20 N•m (2.0 kgf•m, 14 lbf•ft)
Index line
To Next Page
