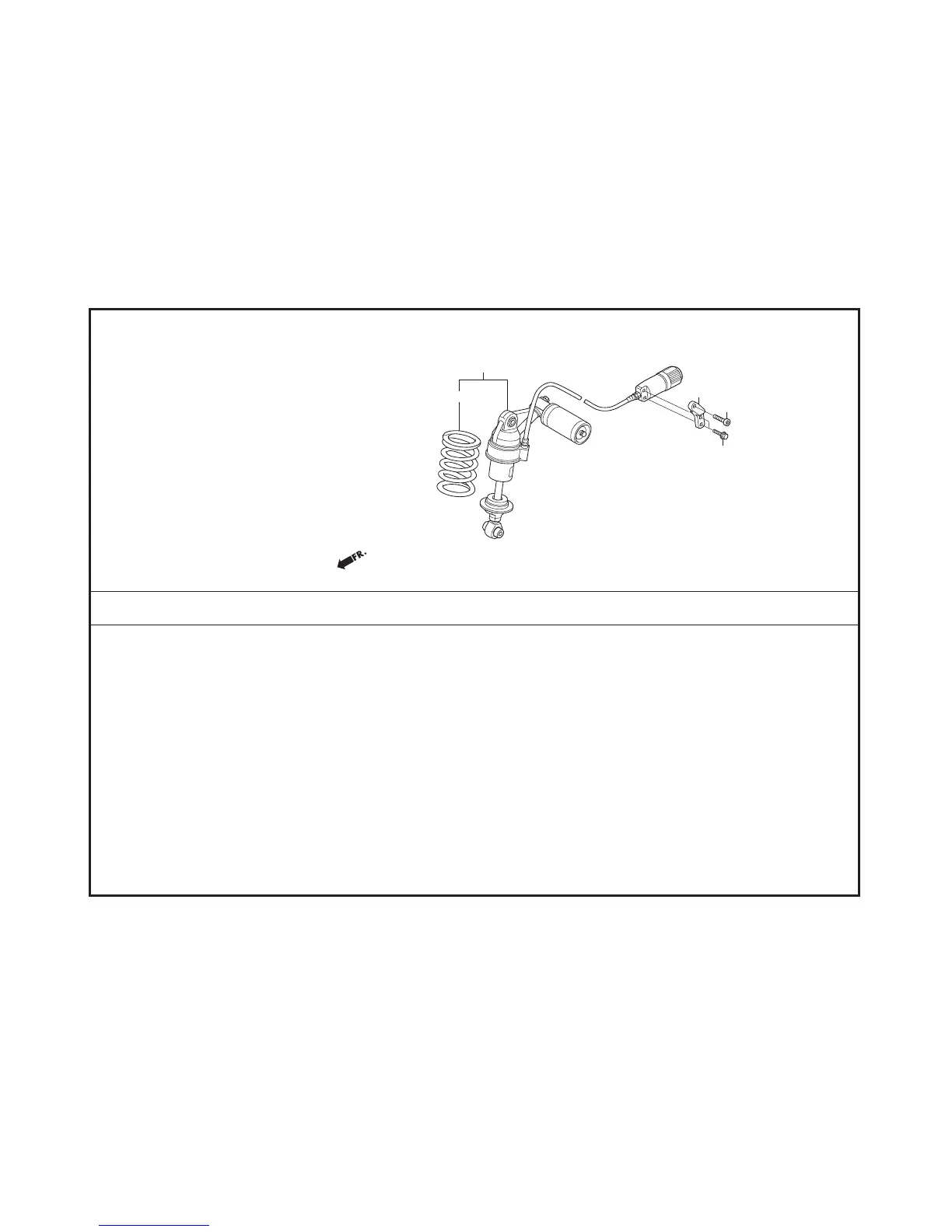

HRC CBR600RR - Rear Cushion

3-17
1
2
3
4
5
•
•
•
•
•
•
•
•
52400-MFJ-R11
52401-MFJ-R01
52401-N1A-D00
52402-N1A-D00
52403-N1A-D00
52404-N1A-D00
52405-N1A-D00
52505-MFJ-R01
90157-ME9-000
96001-06022-00
RR. CUSH ASSY............................................................................................................
SPRING, RR. CUSHION (10.5)......................................................................................
SPRING, RR. CUSHION (10.0)......................................................................................
SPRING, RR. CUSHION (10.3)......................................................................................
SPRING, RR. CUSHION (10.8)......................................................................................
SPRING, RR. CUSHION (11.0)......................................................................................
SPRING, RR. CUSHION (11.3)......................................................................................
STAY, PRELOAD ADJ...................................................................................................
BOLT, SOCKET 8 X 22 ...................................................................................................
BOLT, FLANGE, SH, 6 X 22 ...........................................................................................
Yellow paint
White paint
Blue paint
Black paint
Red paint
Green paint
F-8
Ref.
No.
Part No. Description Remarks
Rear cushion
2010 CBR600RR
Block No.
1
4
3
5
2
1
1
(1)
(1)
(1)
(1)
(1)
1
1
2
Reqd. No.
