Racing Kit
2-6
ACG Set Installation
1. Remove the standard AC generator cover and flywheel.
2. Clean any oil from the crankshaft taper and flywheel taper.
3. Install the racing kit inner rotor to the crankshaft.
4. Hold the inner rotor securely using the special tool (see next page).
5. Apply engine oil to the inner rotor mounting bolt threads and seating sur-
face.
6. Install the bolt with washer, tighten the bolt to the specified torque.
Torque: 103 N•m (10.5 kgf•m, 76 lbf•ft)
7. Install the racing kit stator onto the racing kit alternator cover, then tighten
the stator bolts and the wire clamp bolt to the specified torque.
Torque: 12 N•m (1.2 kgf•m, 9 lbf•ft)
8. Apply sealant to the mating surface of the alternator cover.
9. Install the AC generator cover and tighten the bolts securely.

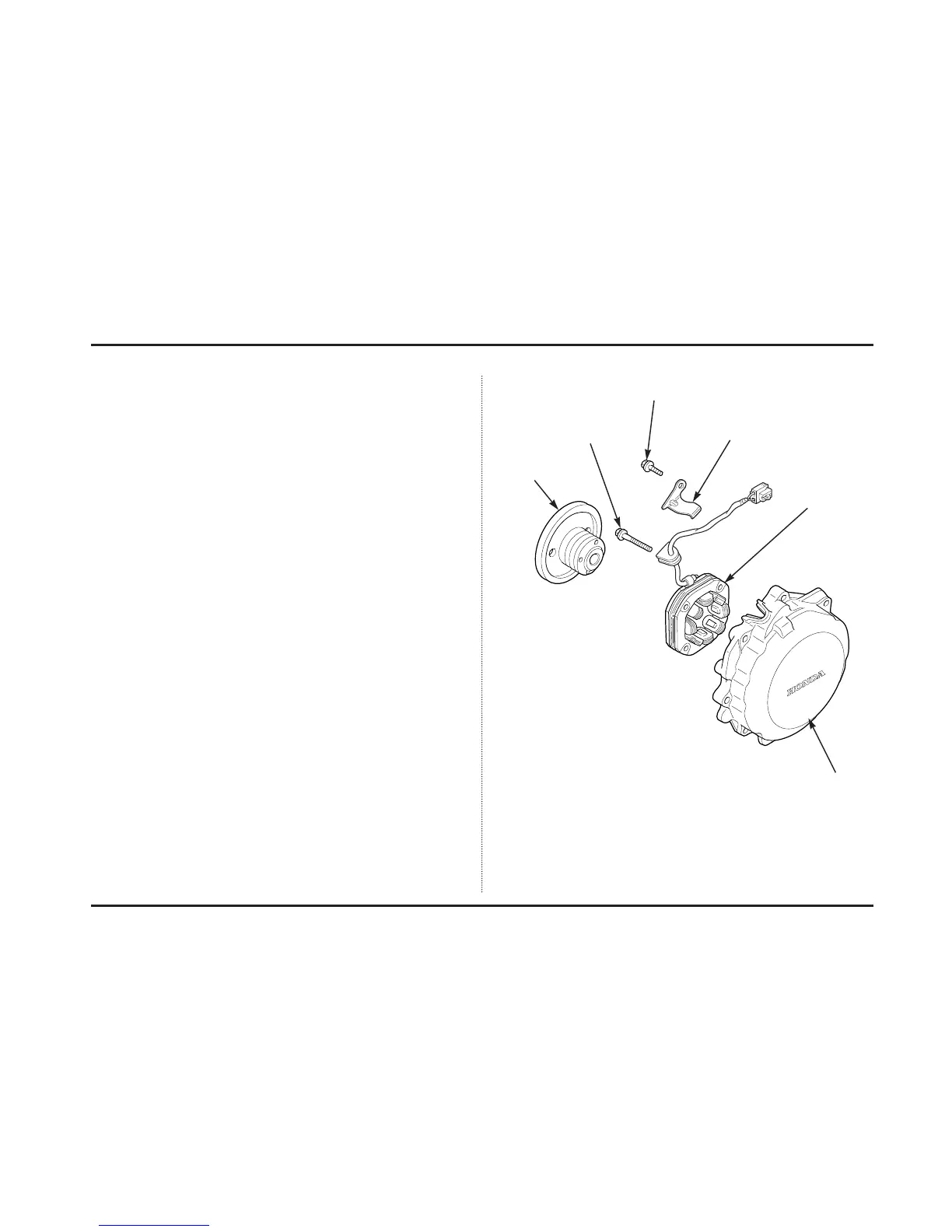

Inner rotor
(racing kit)
AC generator cover
(racing kit)
Stator
(racing kit)
Flange bolt,
6 x 28 mm
(racing kit)
Flange bolt, 6 x 16 mm
(racing kit)
Wire clamp
(racing kit)
To Next Page
