HRC CBR600RR - Rear Fender B Modification

Racing Kit
2-28
Cut area
Cut the rear fender B as
shown to prevent shock
absorber reservoir contact
with the rear fender B.

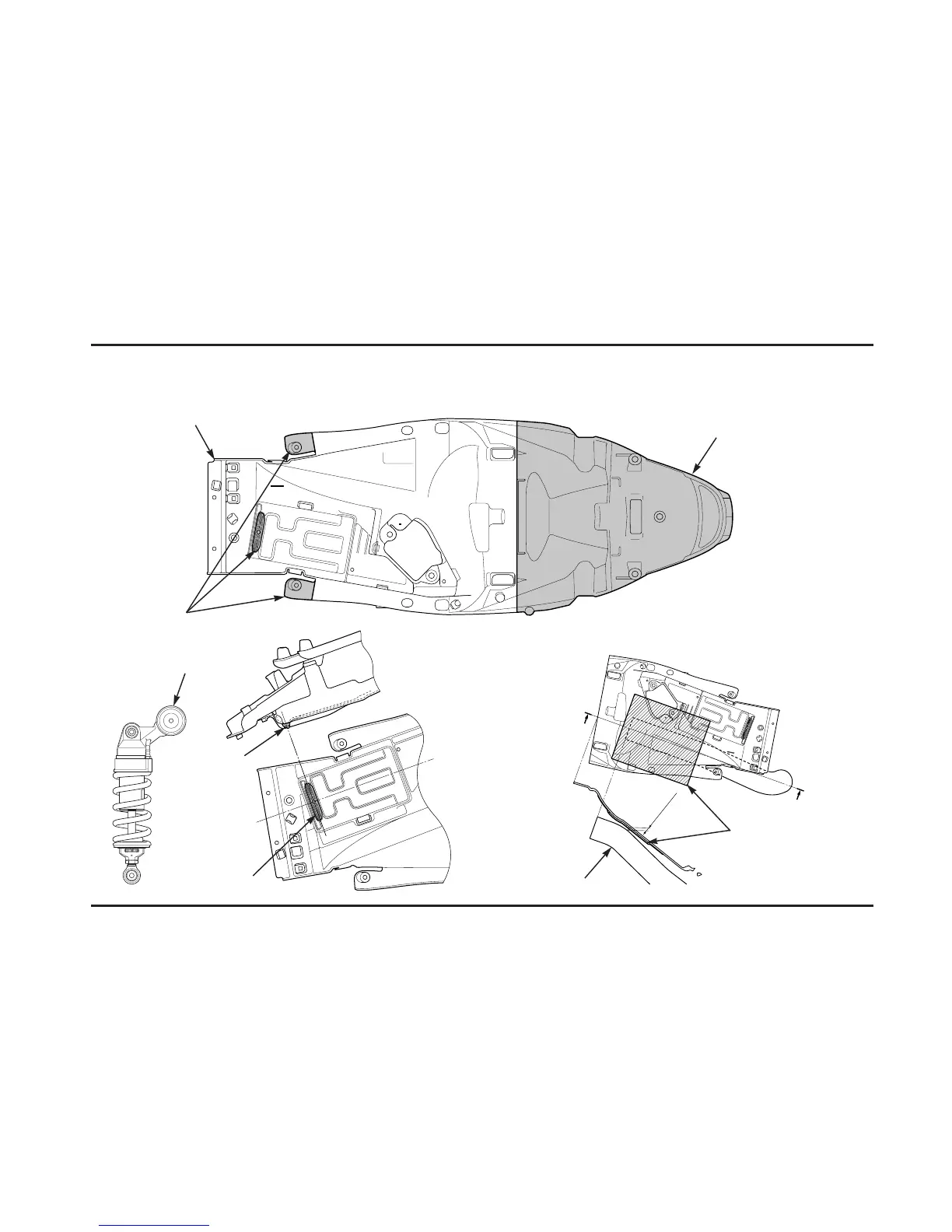

Rear Fender B Modification (FX/SS)
1. Cut and remove the indicated portion of the rear fender B.
Rear fender B
Cut area
Cut area
Cut area
Exhaust pipe
Heat protect sheet
2. Install the heat protect seat to the rear fender B as shown to protect the rear
fender B from the exhaust pipe heat.
