Racing Kit
2-26

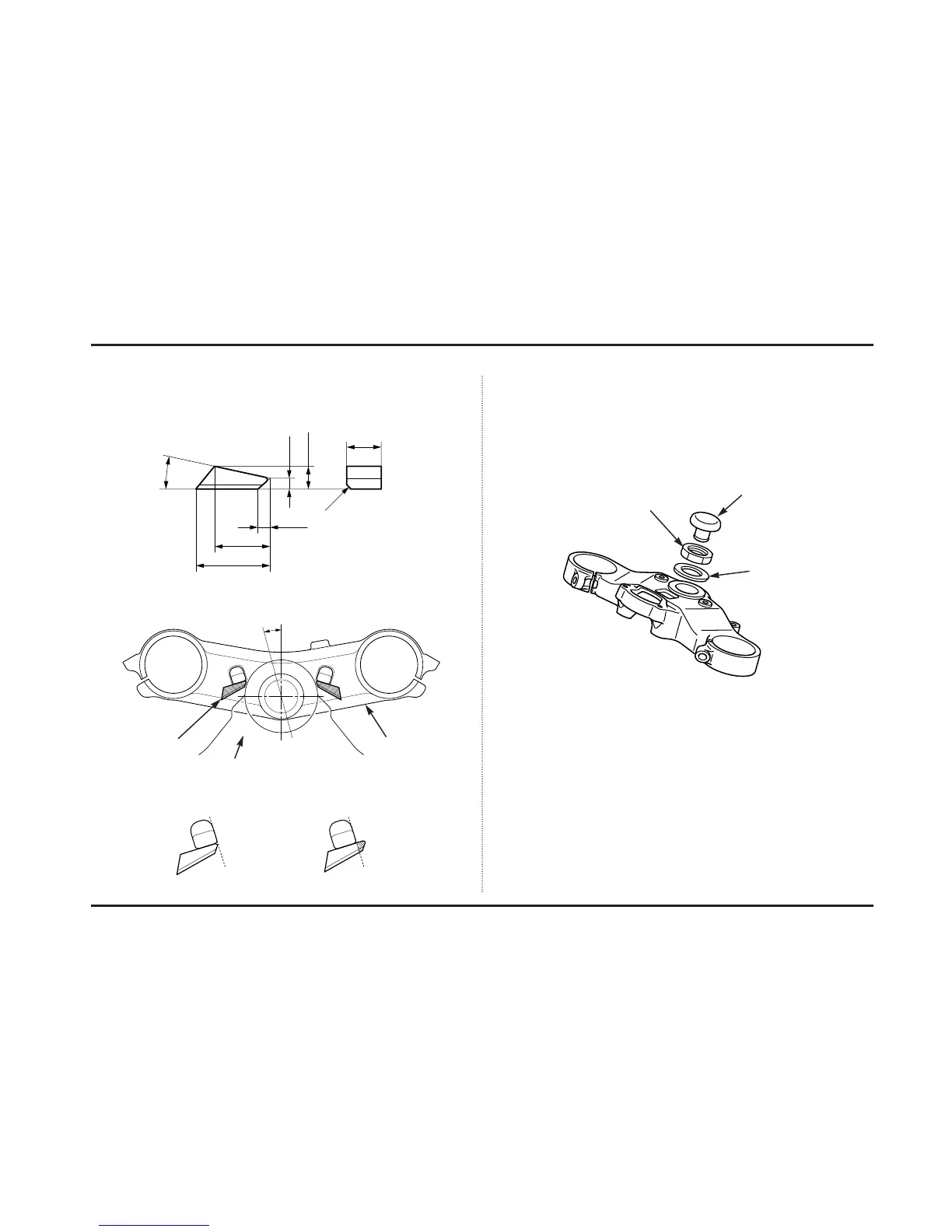

Steering Stem Modification
1. Make the steering stopper pieces from aluminium stock. The piece dimen-
sions are shown in the illustration below.
Stopper piece
2. Weld the stopper pieces onto the bottom bridge as shown.
3. Make sure the steer angle is a minimum of 15˚ on both sides.
Frame body
Bottom bridge
Make sure the tip of the stopper piece does not project from the stopper ends
as shown.
5.4
12˚
15
24.3
32.2
(9.8)
4.7
C2
OK NG
Steering Stem Nut/Washer Replacement
The stem nut and washer is provided in the racing kit to provide a smooth
steering feel.
Remove the standard stem nut cap, stem nut and washer.
Install the racing kit stem washer and stem nut, then tighten the nut to the spec-
ified torque.
Stem nut cap
(remove)
Stem nut
(racing kit)
Washer
(racing kit)
15˚
