HRC CBR600RR - Rear Shock Absorber Spring; Front Suspension Setting

2-37
Racing Kit
(1)
(1)
(2)
(1)
(2)

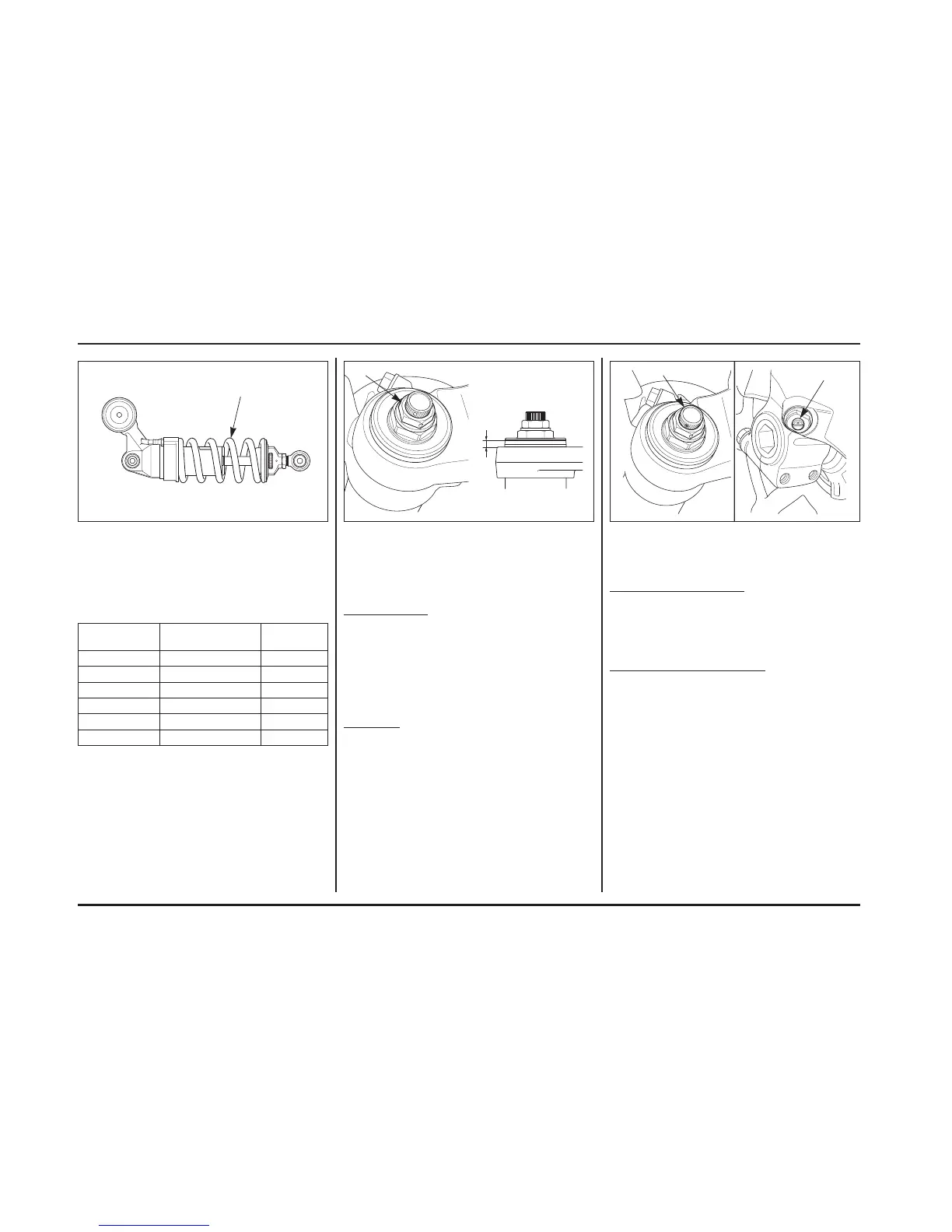

(1) REBOUND ADJUSTER
(2) COMPRESSION ADJUSTER
Rebound Damping Adjuster
Turn the rebound damping adjuster clockwise until
it stops (full hard position), then turn the adjuster
counterclockwise.
Standard position: 10 clicks out from full hard
Compression Damping Adjuster
Turn the compression damping adjuster clockwise
until it stops (full hard position), then turn the
adjuster counterclockwise.
Standard position: 15 clicks out from full hard
(1) PRE-LOAD ADJUSTER
(2) FORK HEIGHT
Front Suspension Setting
Front Suspension Setting
Pre-load Adjuster
Spring pre-load can be adjusted by turning the pre-
load adjuster.
Turn the adjuster clockwise to increase the spring
pre-load.
Turn the adjuster counterclockwise to decrease the
spring pre-load.
Standard position: 5 mm from full soft
Fork Height
Fork height must be adjusted 8 mm or less.
Recommended height: 7 mm
If the fork height is adjusted more than 8 mm, the
upper cowl may contact the road while the vehicle is
inclined.
(1) SPRING
(2) STANDARD LENGTH (L=318 mm)
Rear Shock Absorber Spring
Three optional rear shock absorber springs are
available.
The optional rear shock absorber springs are identi-
fied by color.
Part number Spring rate
Identification
color
52401-MFJ-R01 10.5 kgf/mm (STD) Yellow
52401-N1A-D00 10.0 kgf/mm White
52402- N1A-D00 10.3 kgf/mm Blue
52403- N1A-D00 10.8 kgf/mm Black
52404- N1A-D00
11.0 kgf/mm Red
52405-
N1A-D00 11.3 kgf/mm Green
