Racing Kit
(1) FORK BOLT
Install the fork bolt to the fork slider.
Adjust the pre-load by turning the pre-load adjuster.
Tighten the fork bolt after installing the fork legs to
the steering stem.

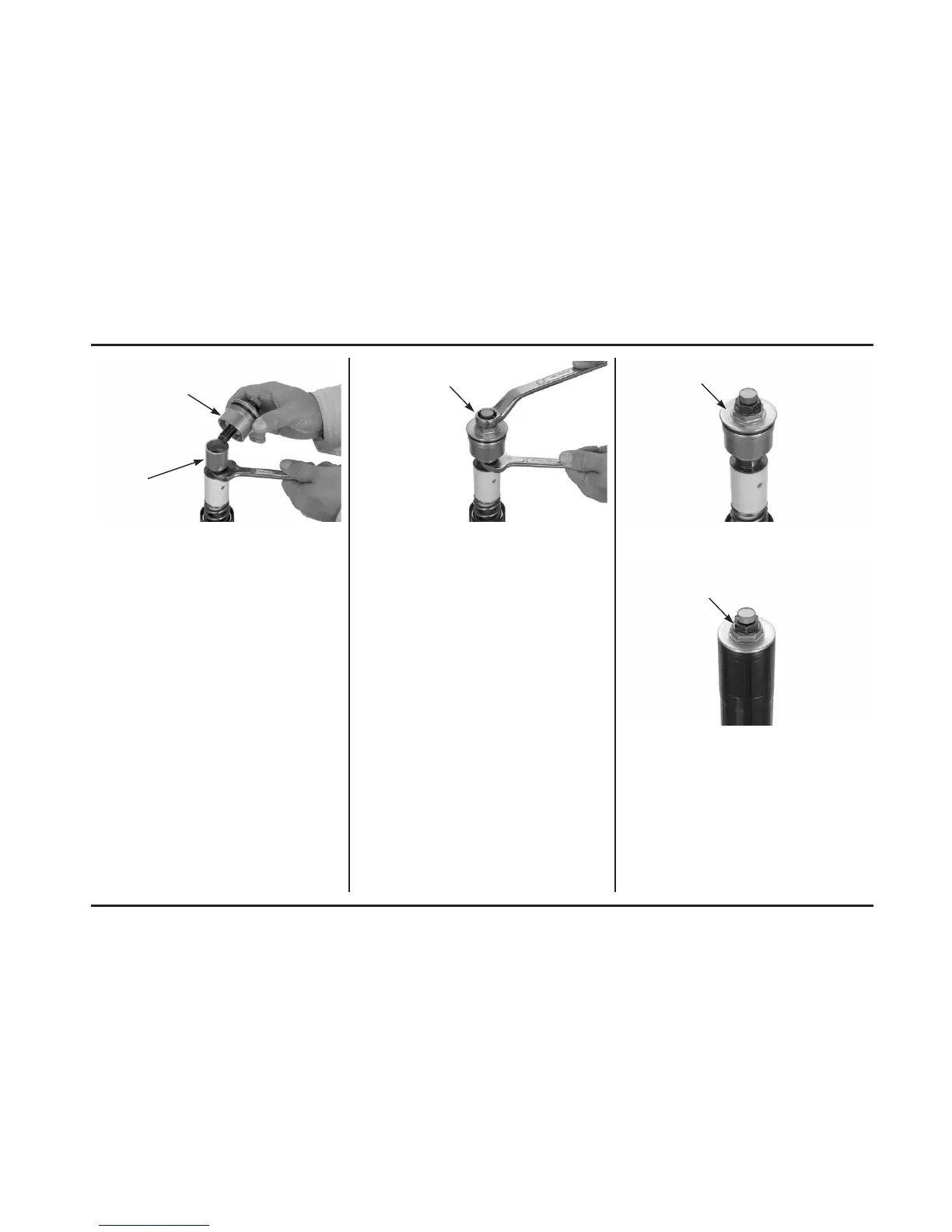

(1) PRE-LOAD ADJUSTER(1) SPRING COLLAR B
(2) FORK BOLT
Install the spring collar B and then install the fork
bolt.
While holding the damper rod, tighten the pre-load
adjuster to the specified torque.
Torque: 25 N•m (2.5 kgf•m, 19 lbf•ft)
Remove the 17 mm spanner from the damper rod.
(1)
(2)
(1)
(1) PRE-LOAD ADJUSTER
(1)
(1)
