2-35
Racing Kit

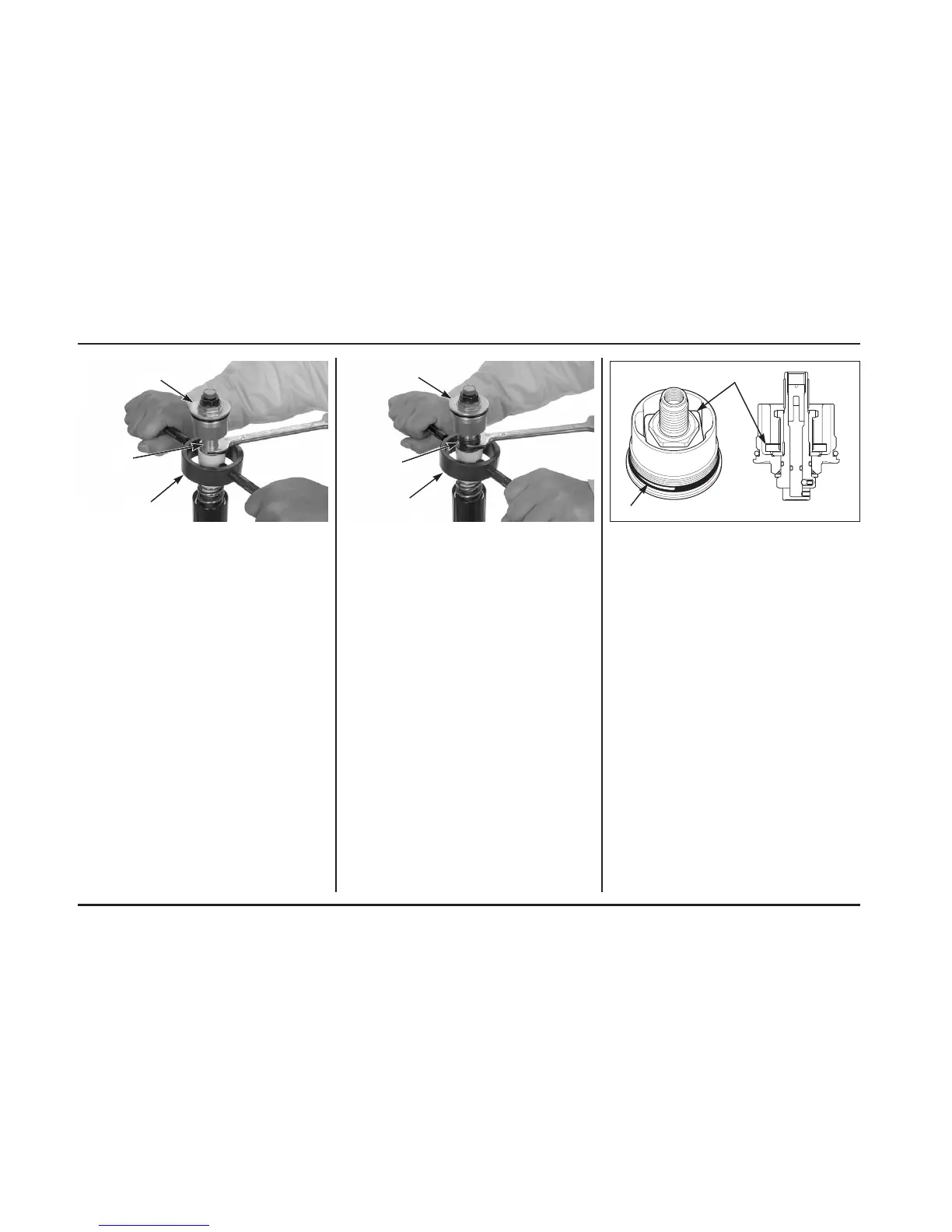

(1) SPRING COLLAR HOLDER
(2) SPRING SEAT STOPPER
(3) FORK BOLT
Remove the fork bolt, install the spring seat stopper.
Reinstall the fork bolt to the damper rod.
Compress the fork spring while pushing the spring
collar in, and pull up the fork damper assembly.
Remove the 17 mm spanner from the damper rod.
Push the spring seat stopper down and align the
spring seat stopper cut-outs with the damper rod
flat surface, then install the 17 mm spanner to the
flat surface.
Remove the fork bolt assembly again.
Remove the spring collar holder.
(1) PRE-LOAD ADJUST PLATE
(2) O-RING
Apply fork fluid to a new O-ring, and install it to the
fork bolt.
Turn the pre-load adjuster and adjust it to the softest
position as shown.
(1) SPRING COLLAR HOLDER
(2) FORK BOLT
(3) FORK DAMPER
Install the spring collar holder to the spring collar.
TOOL:
Spring collar holder 070MF-MBZC110
Compress the fork spring while pushing the spring
collar in, and pull the fork damper assembly up at
the same time.
Position a 17 mm spanner into the flat portion of the
damper rod as shown.
(3)
(2)
(1)
(2)
(1)
(3)
(2)
(1)
