HRC CBR600RR - Radiator Kit Installation

Racing Kit
2-16
Left radiator hose
(Racing kit)
Right radiator hose
(Racing kit)
Radiator
(Racing kit)

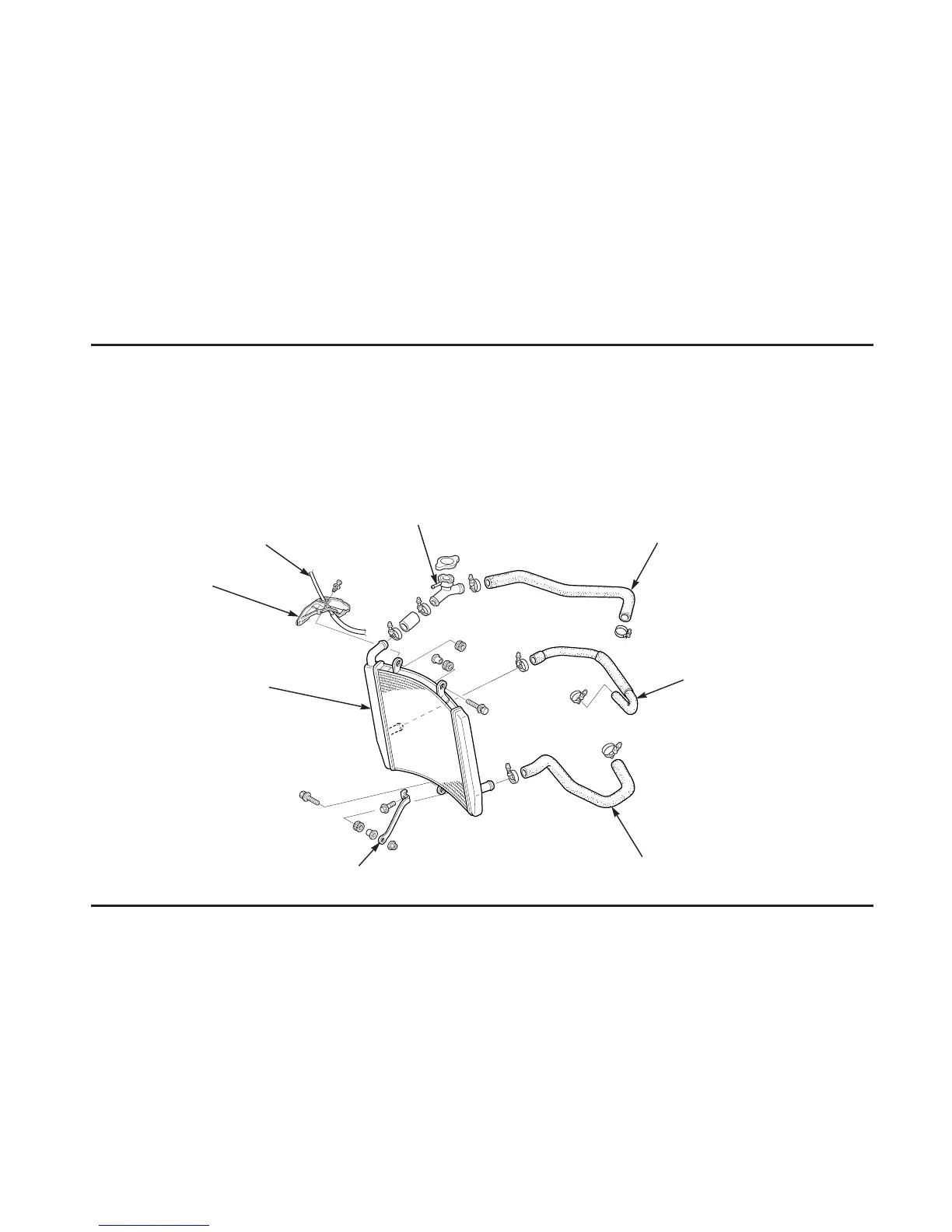

Radiator Kit Installation
1. Remove the standard radiator and radiator reserve tank.
2. Install the racing kit radiator lower stay using the removed standard stay bolt.
3. Install the racing kit radiator with the racing kit right and left radiator hoses, oil cooler hoses and oil cooler pipe using the standard hose clamps. When installing
the racing kit, install the radiator filler neck in the reverse direction as shown in the illustration.
4. Tighten the hose clamps securely.
5. Install the removed right heat guard plate onto the radiator while routing the clutch cable into the guard plate groove.
Install the standard filler neck
in the reverse direction.
Oil cooler pipe
(Racing kit)
Lower stay
(Racing kit)
Clutch cable
Heat guard plate
(Standard)
