2-19
Racing Kit
Fuel Tank Breather Hose Installation
The fuel tank breather hose and catch tank are not listed in the racing kit parts.
If you wish to install a fuel tank breather catch tank, refer to the parts numbers
in the illustration.

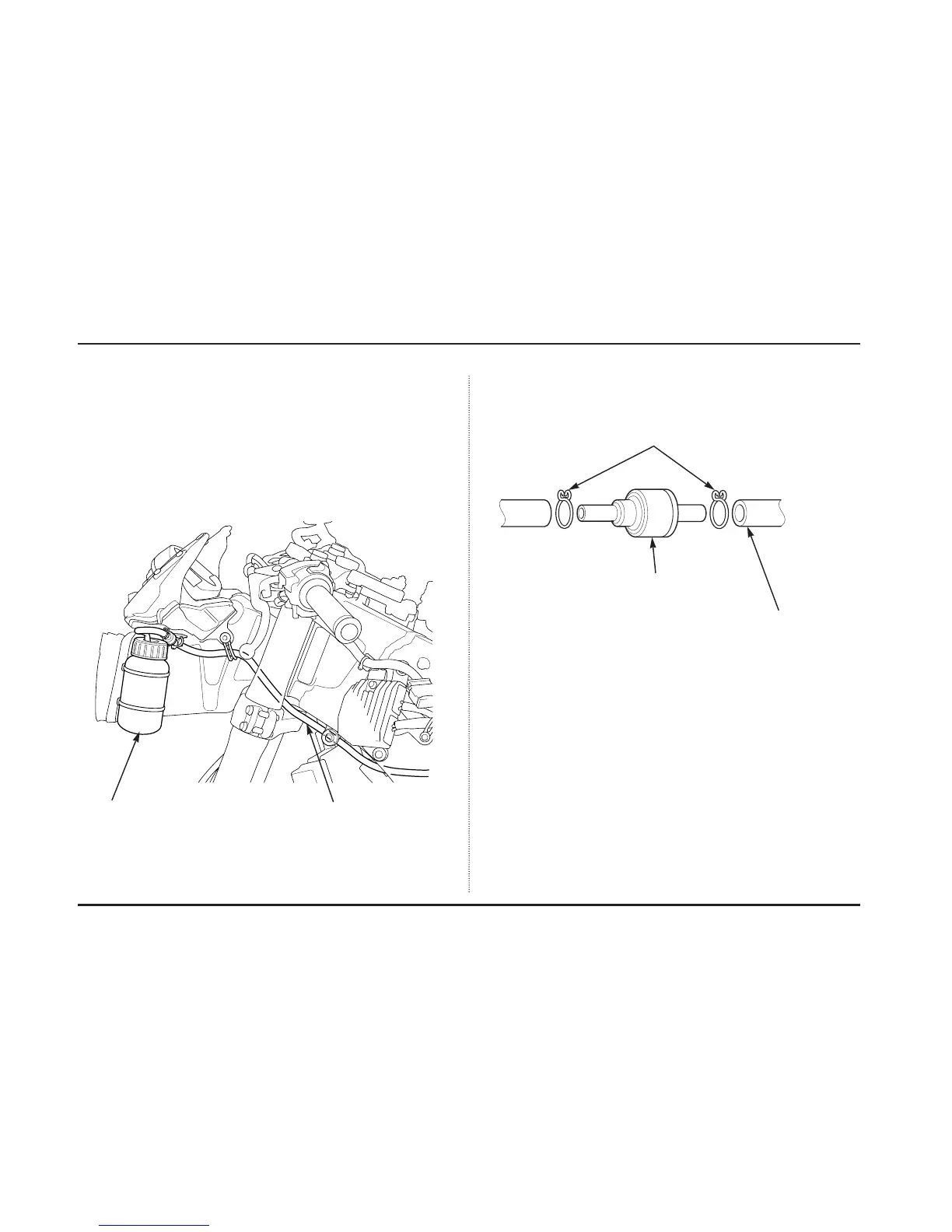

1. Install the fuel breather catch tank to the air duct.
2. Install the one-way valve as shown in the illustration.
3. Route the fuel tank breather hose referring to the illustration below and con-
nect it to the fuel tank catch tank.
Fuel tank breather hose
(Optional)
Catch tank
(Optional)
Vinyl hose
(Optional)
(I.D. 6 mm, O.D. 9 mm
hose about 1 m length)
One-way valve
(Optional)
(17625-NX5-771)
Tube clips
(Optional)
(95200-02100)
