Racing Kit
2-20

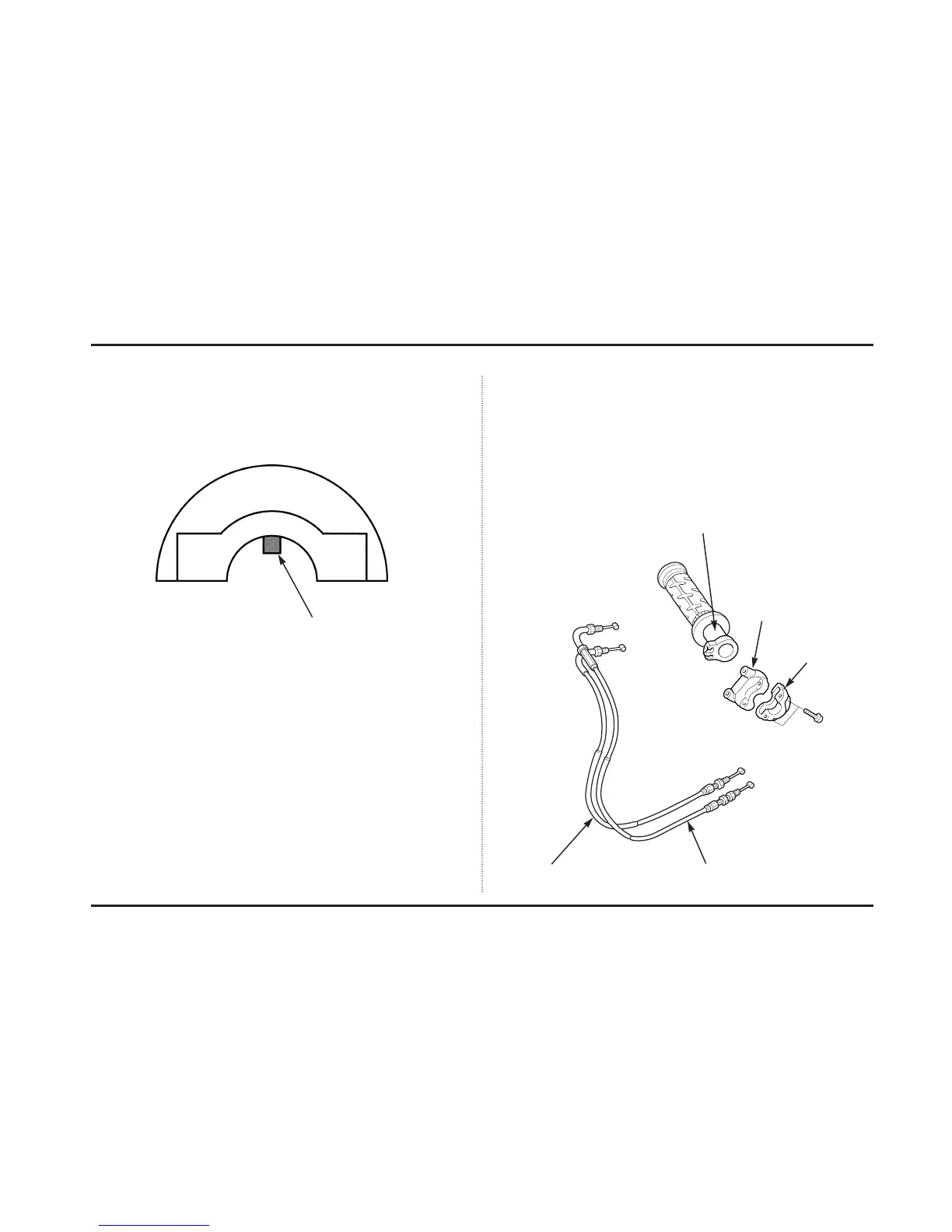

Boss (grind off)
Throttle pipe
(racing kit)
Under throttle
housing
(racing kit)
Upper throttle
housing
(racing kit)
Throttle cable B
(racing kit)
Throttle cable A
(racing kit)
Hi Throttle Set Installation
1. Remove the standard throttle housing and right grip comp. from the right
handlebar.
2. Install the racing kit throttle pipe onto the right handlebar.
3. Grind off the boss in the upper throttle housing as shown.
4. Install racing kit throttle cables A and B to the under throttle housing.
5. Connect the throttle cable ends to the throttle pipe, then tighten the throttle
housing screws.
Note:
• Check the inside of the throttle housing and remove moisture completely
after riding in rain.
