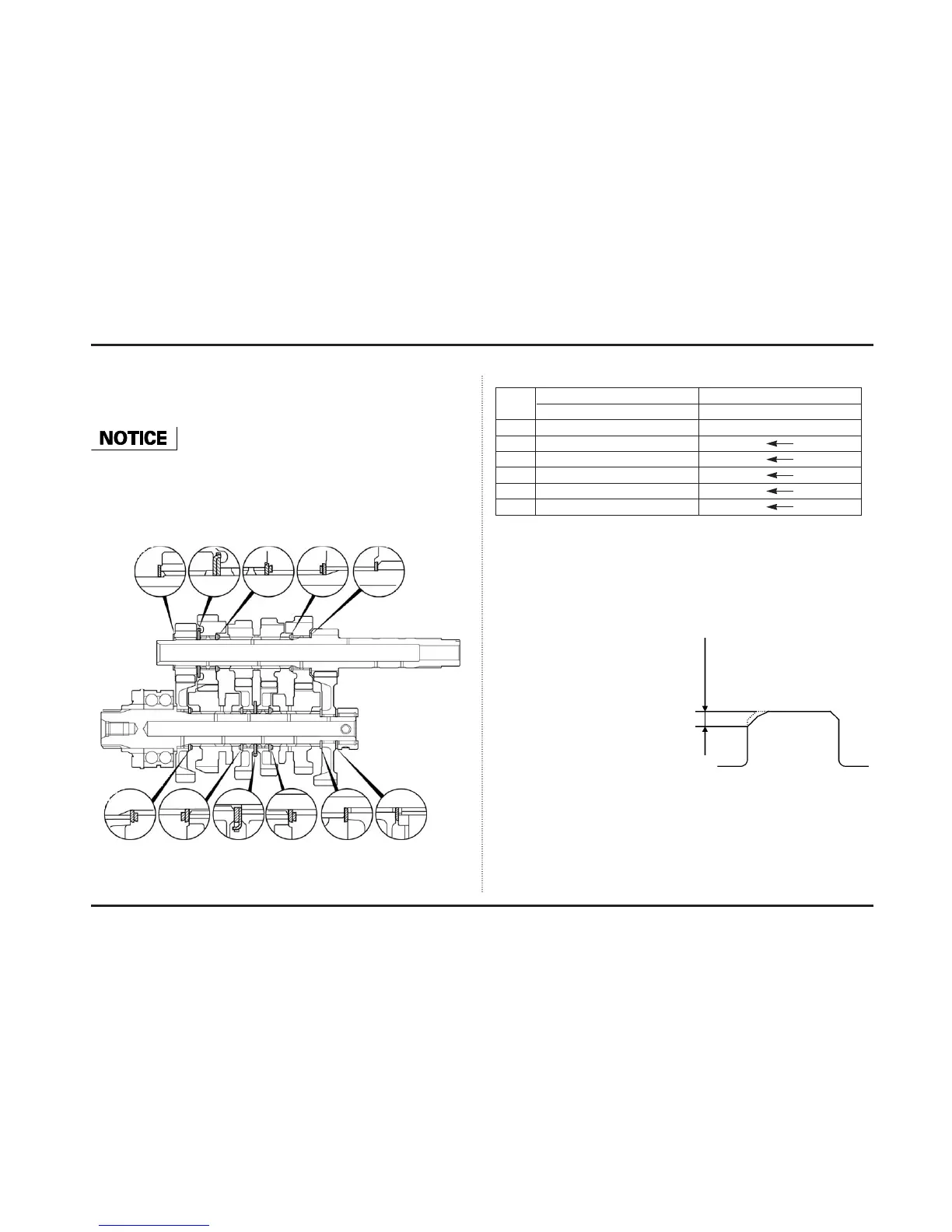

Racing Kit
2-8
Standard Racing kit
Gear ratio (T= Teeth) Gear ratio (T= Teeth)
1st 2.750 (12/33T) 2.600 (15/39T)
2nd 2.000 (16/32T)
3rd 1.667 (18/30T)
4th 1.444 (18/26T)
5th 1.304 (23/30T)
6th 1.208 (24/29T)
Transmission Set Installation
1. Remove and disassemble the transmission.
2. Assemble the transmission using the racing kit mainshaft and C1 gear.
• When disassembling, always replace the circlips with new ones.
•Always install the thrust washer and snap ring with the chamfered (rolled)
edge facing away from the thrust load as shown.
Check the gear dog edges for wear.
Service limit: 1.0 mm (0.04 in)
Gear jumps may occur if the gear
dog edges are worn. Replace gears
worn to the service limit with new
gears.
