Racing Kit

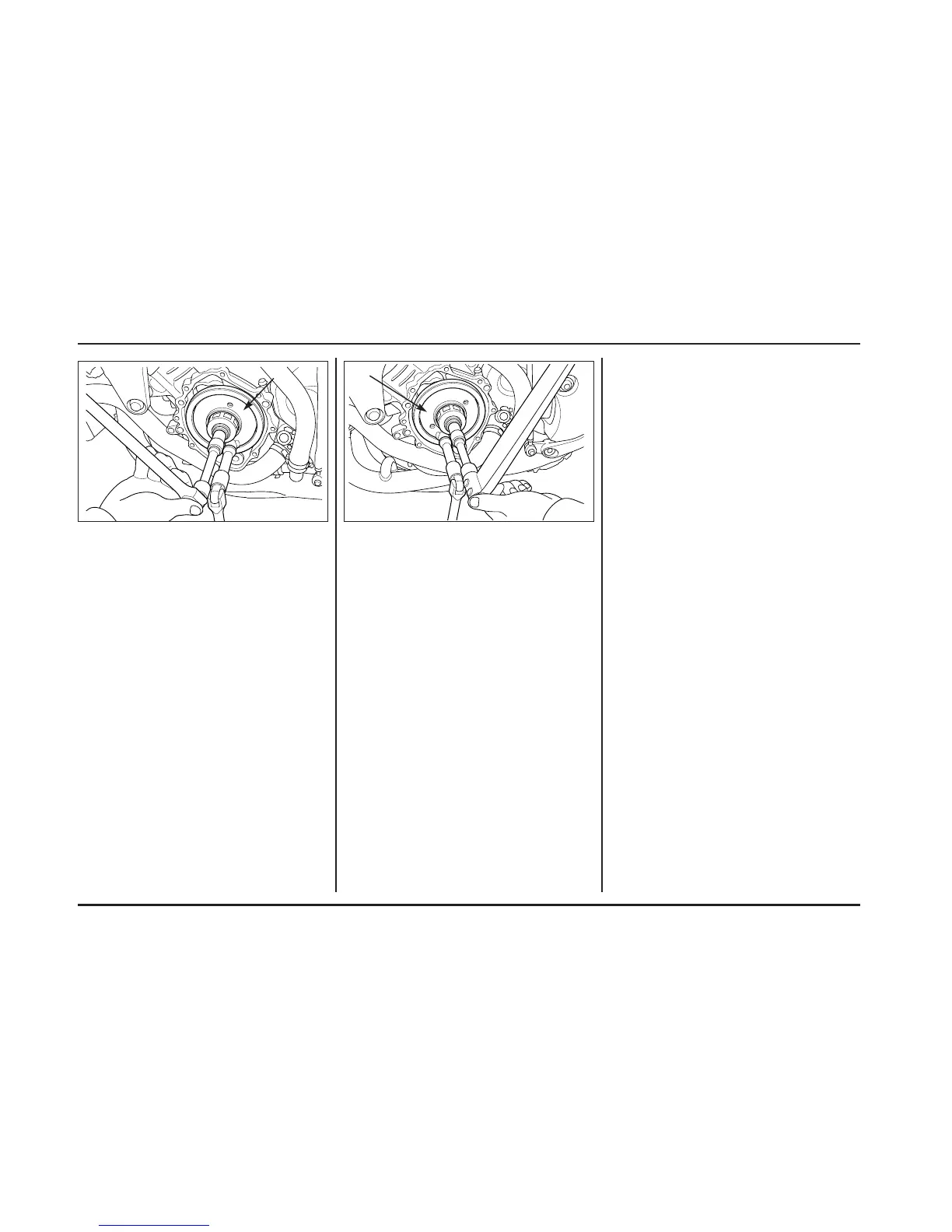

(1) ROTOR HOLDER
Install the inner rotor onto the crankshaft.
Apply oil to the rotor bolt threads and seating sur-
face.
Install the washer and rotor bolt.
Hold the inner rotor with a rotor holder by inserting
the holder bosses into the flywheel holes and seat-
ing the holder into the flywheel.
Tool:
Rotor holder 89030–NL9–711
Refer to previous page for tightening procedure.
(1) ROTOR HOLDER
Flywheel Holding
Hold the inner rotor with a rotor holder by inserting
the holder bosses into the flywheel holes and seat-
ing the holder into the flywheel.
Loosen and remove the rotor bolt.
Tool:
Rotor holder 89030–NL9–711
(1)
(1)
