HS-Technik NutBee NBPS-21 - Selection of Threaded Mandrel and Nose Piece

- 25 -
 
NOTE
The threaded mandrel (sleeve) and the nose piece must be selected in
accordance with the blind rivet nut, blind rivet bolt or earthing pin used.
You can use the riveng tool for processing dierent sizes and materials. When doing so,
note the exact specicaon of the blind rivet nut or the blind rivet bolt and adjust the
threaded mandrel (sleeve) and nose piece.

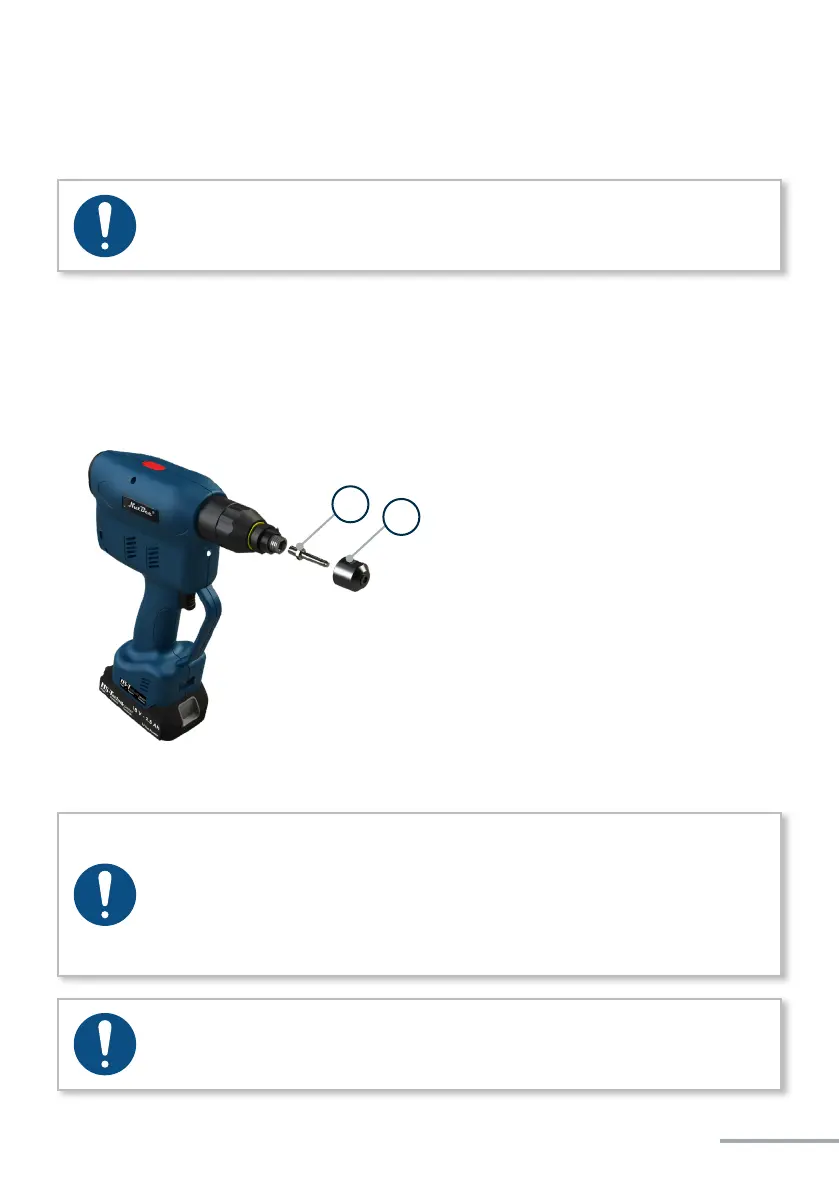

Blind rivet nuts M3 – M10
Blind rivet bolts M3 – M8
1) Nose piece
2) Threaded mandrel
NOTE
Use only the appropriate nose assembly for your blind rivet nut or blind rivet
bolt. Non-compliance may cause damage to riveting machine. Furthermore,
material damages can result from a damaged thread. Do not use force, the
traction the nose assembly as well as the blind rivet nuts and blind rivet bolts
must be able to be tightened by hand.
NOTE
Assemble the nose assemblys only in accordance with the quick guides
provided by HS-Technik GmbH.
2
1
