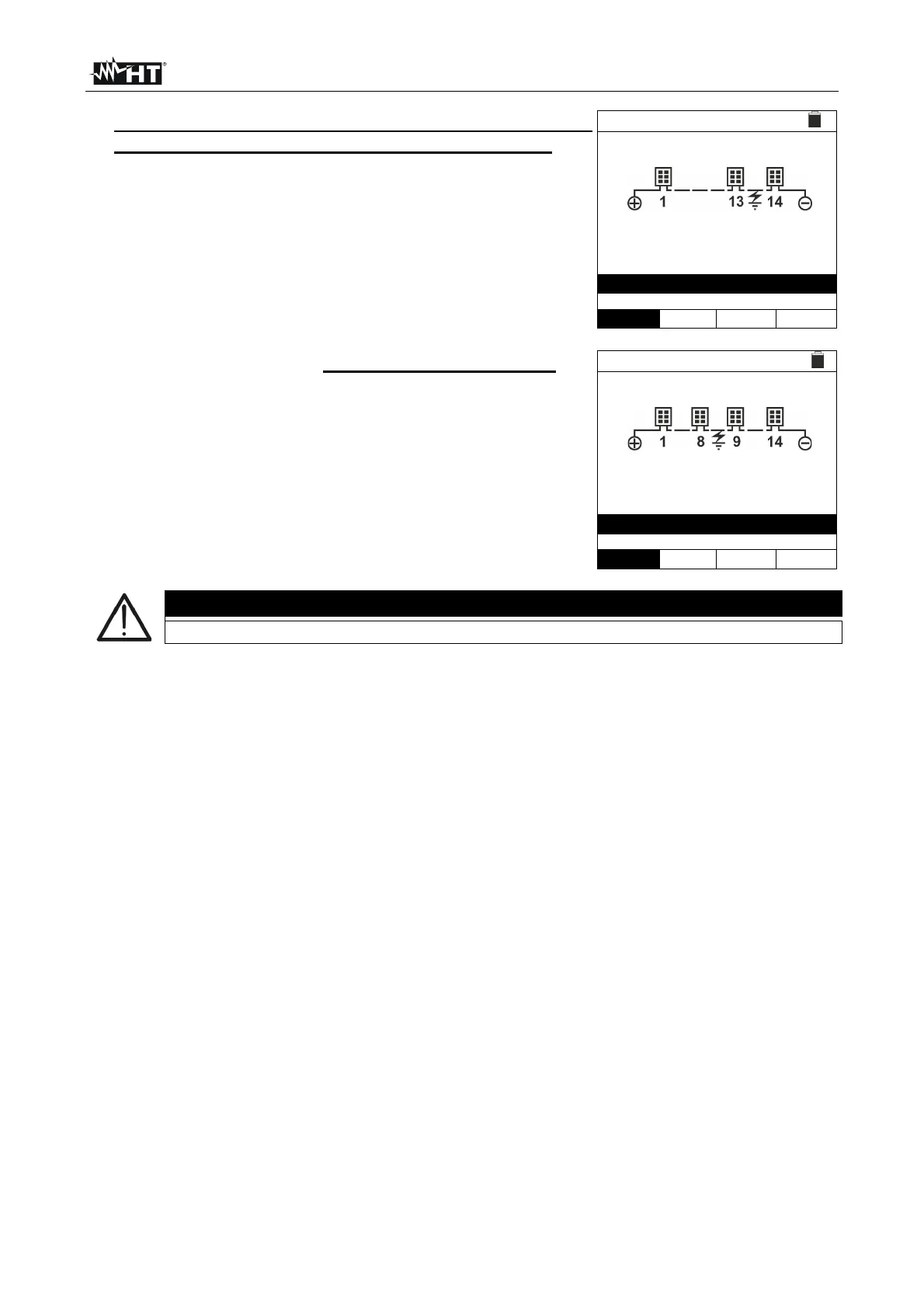

14. In case a fault is present (Rp<Lim) in position NMOD
(between the second last and the last module), the
instrument shows the screen to the side and the message
“GND: Fault NMOD-1..NMOD” on the display.
Check the condition of the insulation of the junction boxes
of the indicated modules and the relevant connection
cables.
GFL 15/10 – 18:04
Rp 0.0 M
VPN VPE VNE
1480V 750V -730V
GND: Fault 13..14
14 1500V 0.10M
NMOD Vtest. Lim.
15. In case a fault is present (Rp<Lim) within the string, the
instrument shows the screen to the side and the message
(relevant to the example with NMOD = 14) “GND: Fault
8..9” on the display. Check the condition of the insulation
of the junction boxes of the indicated modules and the
relevant connection cables.
GFL 15/10 – 18:04
Rp 0.0 M
VPN VPE VNE
1480V 750V -730V
GND: Fault 8..9
14 1500V 0.10M
NMOD Vtest. Lim.
CAUTION
The results of function GFL cannot be saved in the instrument's memor
y
.
