HTP UFT-100W User Manual

12
LP-542 REV. 7.16.15

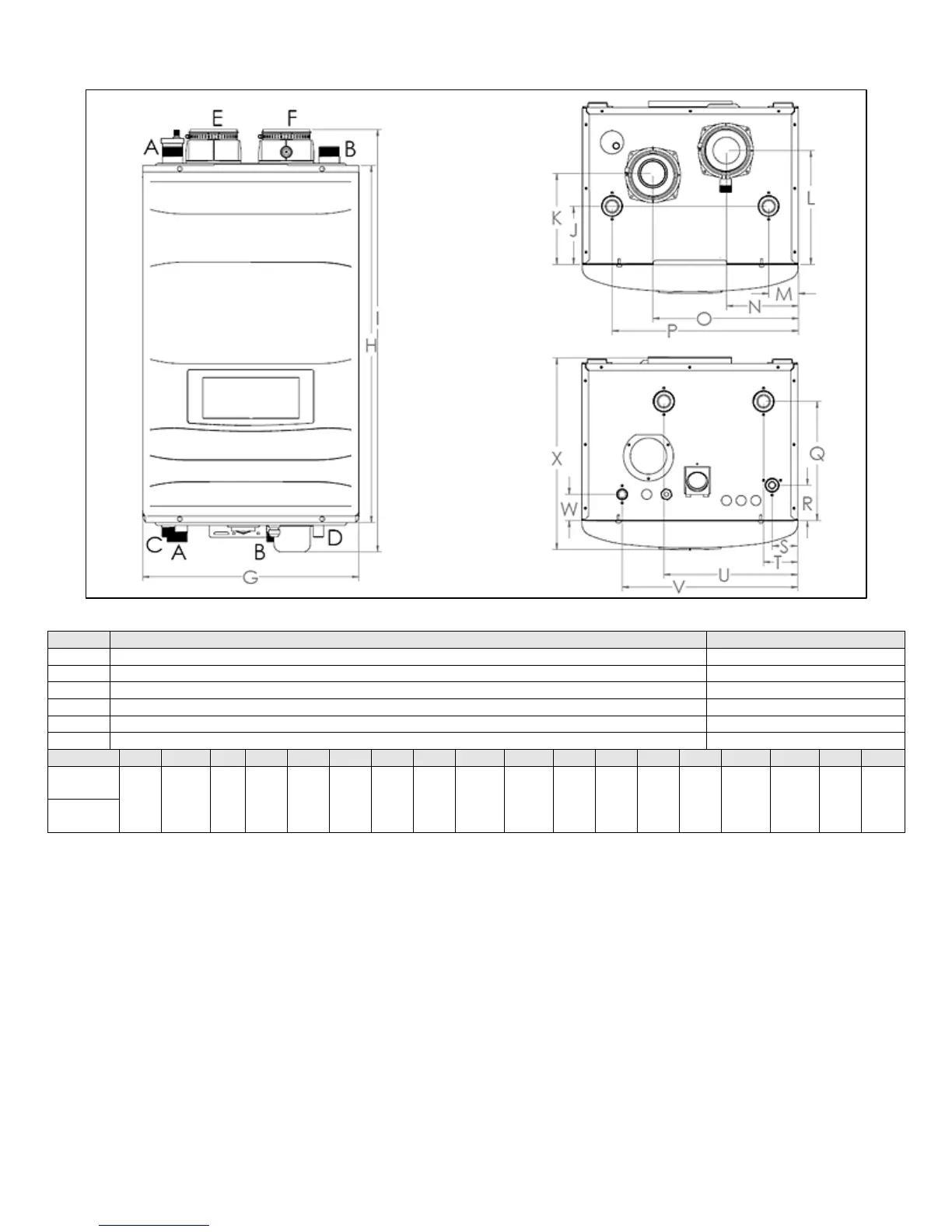

Figure 1 – UFT Specifications and Dimensions
DESCRIPTION
DIAMETER
A
CH Supply Adapter
1 ¼”
B
CH Return Adapter
1 ¼”
C
Gas Inlet Adapter
¾”
D
Condensate Adapter
½”
E
Intake Pipe Connection
3”
F
Exhaust Vent Connection
3”
MODEL
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
80W
100W
17.5
28.75
34
4.7
7.3
9.1
2.4
5.8
11.7
14.9
9.6
2.8
2.1
2.7
10.7
14.1
2.1
15.4
120W
140W
Table 4 – UFT Specifications

HTP UFT-100W Specifications

General

Brand	HTP
Model	UFT-100W
Category	Boiler
Language	English
