LP-542 REV. 7.16.15

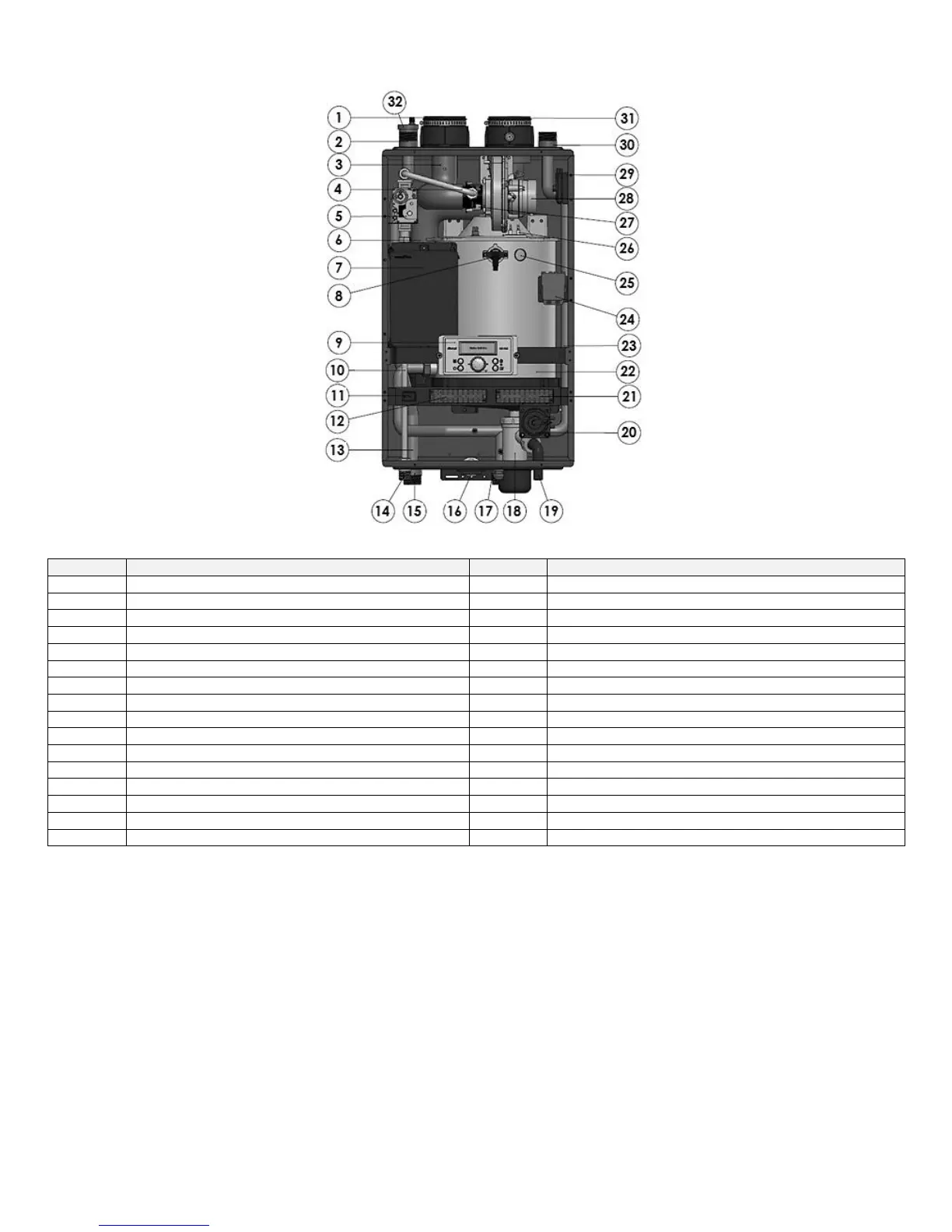

Figure 2 – UFT Components (All Models)
Condensate Air Pressure Switch
Low Voltage Terminal Block
Optical Flame Detection Sensor
Control Panel CH Supply Pipe
Manual ON/OFF Power Switch
High Voltage Terminal Block
Table 5 – UFT Component List
How the Boiler Operates
UFT condensing technology intelligently delivers hydronic heating while maximizing efficiency. Outlined below are the features of the
system and how they operate:
Stainless Steel Heat Exchanger - The highly efficient 316L stainless steel fire tube heat exchanger with internal aluminum is designed
to extract all available heat from the combustion process and pass it into heat transfer fluid. The stainless steel construction provides
protection for longer service life. The heat exchanger offers greater water content, providing lower system pressure and greater overall
system efficiency.
10 to 1 Modulating Combustion System - The combustion system is specially designed to provide very high turn down. This
combustion system will modulate the burner output to very low levels to match the system demand and achieve better overall control of
the heating system for maximum efficiency and reliability.
Control – The integrated control system monitors the system and responds to internal and external signals to regulate fan speed and
control boiler output. This allows the boiler to deliver only the amount of heat energy required and nothing more.
